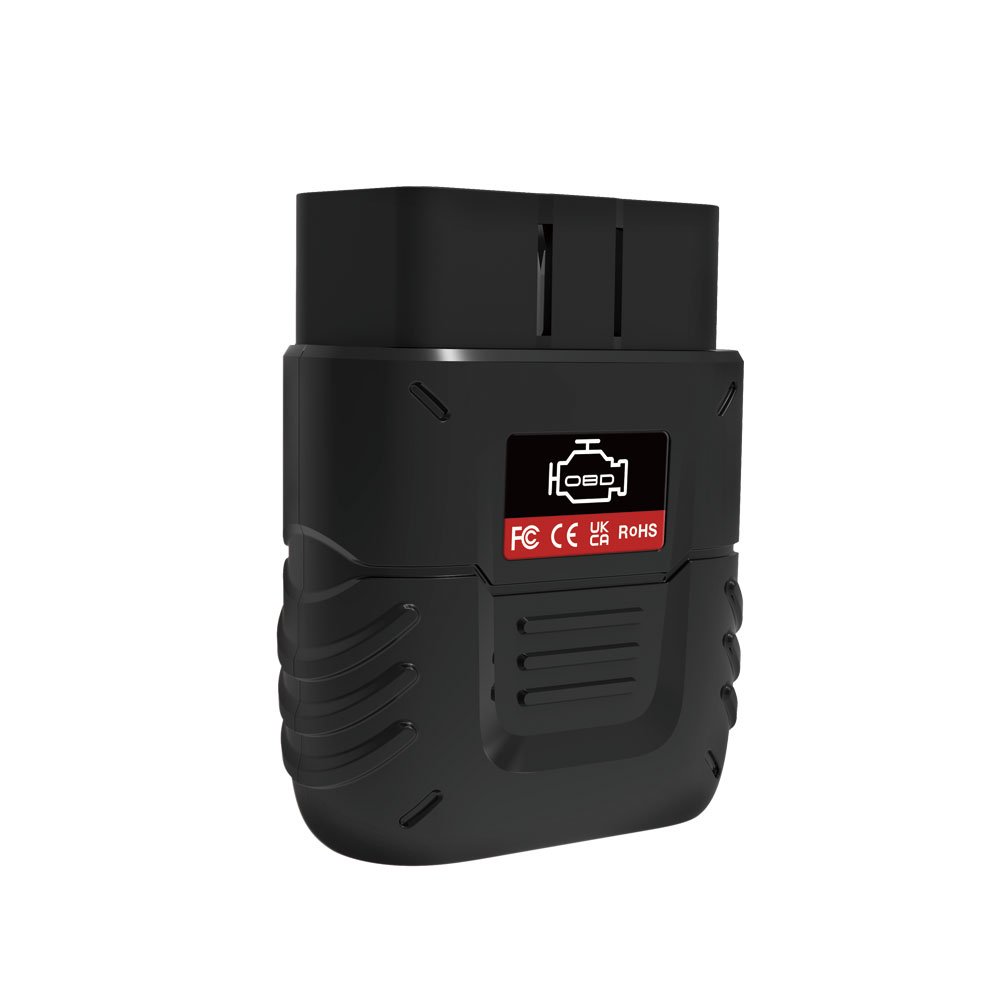

V019
Bluetooth OBD-II adapter built for stable app-side vehicle checks
V019 supports Bluetooth-based app connectivity for DTC read/clear and live sensor data viewing. With Android, iOS, and Windows software support, it works well for app companies and subscription-style vehicle health platforms that need flexible deployment.
Bluetooth OBDII Adapter
Bluetooth 4.0 adapter designed for app connectivity—supports consistent phone pairing and a stable in-app experience for subscription vehicle health platforms.
Read & Clear DTCs
App-side DTC read/clear (generic + manufacturer-specific) with MIL off support—helps reduce support back-and-forth and speeds up driver decisions.
Live Sensor Data

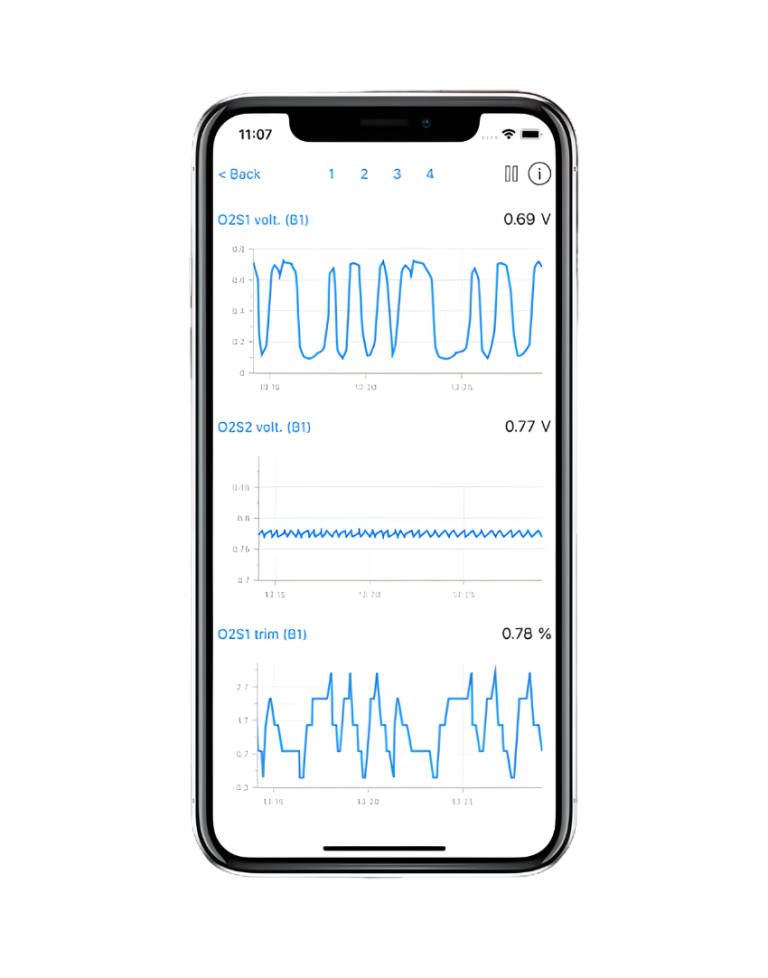

View real-time sensor parameters such as RPM, coolant temperature, and fuel trims (availability depends on vehicle/app) to confirm operating conditions and support diagnosis.
Multi-Platform Software
Supports Android, iOS, and Windows software environments—enables flexible integration for app companies and multi-device support teams.
PRODUCT SPECIFICATIONS
Functions
- Read diagnostic trouble codes (generic + manufacturer-specific) and display meanings (spec notes 3000+ generic code definitions database)
- Clear fault codes and turn off MIL (Check Engine indicator)
- Display live sensor data (e.g., RPM, calculated load, coolant temperature, fuel system status, vehicle speed, fuel trims, intake manifold pressure, ignition timing, intake air temperature, air flow rate, throttle position, oxygen sensor voltage, fuel pressure, fuel consumption monitoring, etc.)
- Compatible software examples (per spec): Windows (ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.); Android (Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.); iOS (Auto Doctor, Mini OBDII); Symbian (OBDScope).
OBD-II Protocols
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (fast init, 10.4 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
Data PIDs
- Engine speed (RPM)
- Calculated load value
- Coolant temperature
- Fuel system status
- Vehicle speed
- Short-term fuel trim
- Long-term fuel trim
- Intake manifold pressure
- Ignition timing advance
- Intake air temperature
- Air flow rate
- Throttle position (absolute)
- Oxygen sensor voltage related to short-term fuel trim
- Fuel pressure
- Fuel consumption monitoring, etc.
Hardware Specs
- Communication method: Bluetooth 4.0
- Main control chip: MM32L073PF
- Software platform: Android / Windows / iOS
- Working voltage: 12 V
- Working current: 43 mA
- Working temperature: -30°C to 70°C
- Working humidity: <60% RH
- Dimensions: 59.5 × 46 × 22 mm
- Product weight: 27.8 g
OBD Connector
- OBD male connector (standard 16-pin OBDII interface).
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Single Wire CAN | 9 | Reserved |
| 2 | J1850+ | 10 | J1850- |
| 3 | Reserved | 11 | Reserved |
| 4 | Chassis ground | 12 | Reserved |
| 5 | Signal ground | 13 | Reserved |
| 6 | CAN High (CANH) | 14 | CAN Low (CANL) |
| 7 | K-Line | 15 | L-Line |
| 8 | Reserved | 16 | Power |
Compliance & Packaging
- Certifications: CE, FCC, RoHS, UKCA

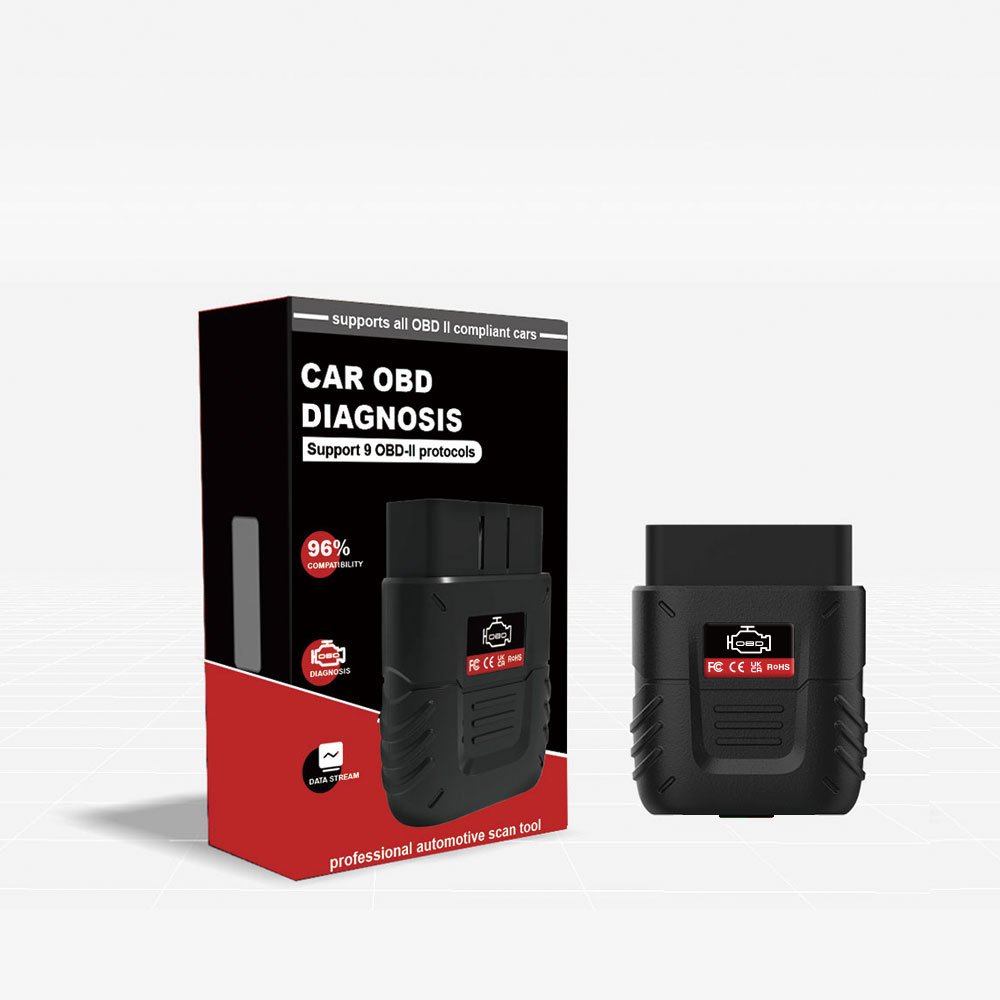

- Package contents: Adapter ×1; Manual ×1; Box ×1
- Package size: 100 × 64 × 26 mm
- Carton size: 520 × 280 × 150 mm
- Quantity per carton: 100 pcs/carton
- Net weight: 27.8 g
- Gross weight: 60 g
- Storage conditions: store in a clean, ventilated, cool, and dry place; keep moisture-proof.
- Transportation & handling: ship in cartons; handle with care; avoid heavy vibration, shock, or compression; prevent contamination and package damage; protect from rain and direct sunlight; suitable for road, rail, sea, and air transport.
- Care & safety notes: do not use abrasive cleaners; do not heat or place near open flames; do not expose to direct sunlight for long periods; do not disassemble or modify (no user-serviceable parts).
DOWNLOAD
Technical Documents
Support Guides
GET YOUR ORDER
Standard Packaging
- Standard package contents: V019 OBD-II adapter ×1; user manual ×1; retail box ×1.
- Accessories and detailed packing list can be customized for OEM/ODM and private-label orders.
MOQ & Pricing Structure
- Sample MOQ: 1–10 pcs
- Standard (bulk) MOQ: 100 pcs
- White-label / OEM MOQ: 1,000 pcs
- ODM MOQ: 10,000 pcs
- Note: MOQs may vary based on packaging and customization scope.
- Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
Sample & Lead Time
- Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
- White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
- ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
- Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
Customization Options (OEM/Private Label)
- Branding (White-label): logo printing (silkscreen) or label/sticker service.
- Documentation & packaging: customized user manual and retail box packaging.
- Bluetooth customization: Bluetooth device name can be customized for your brand/app experience.
- Appearance options: housing color customization (project-dependent).
- ODM (project-based): industrial design / enclosure appearance customization.
Quality, Warranty & Compliance
- Warranty: 1 year replacement.
- Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
- DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
- Quality system: ISO 9001 certified.
- Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
- Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
- Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
Shipping & Carton Info
- Shipping: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes).
- Duty-paid option (DDP, air door-to-door): available upon request. We can quote and pre-collect freight + duties/taxes where supported.
- HS Code (reference): 9031.80.9090 (may vary by destination country).
