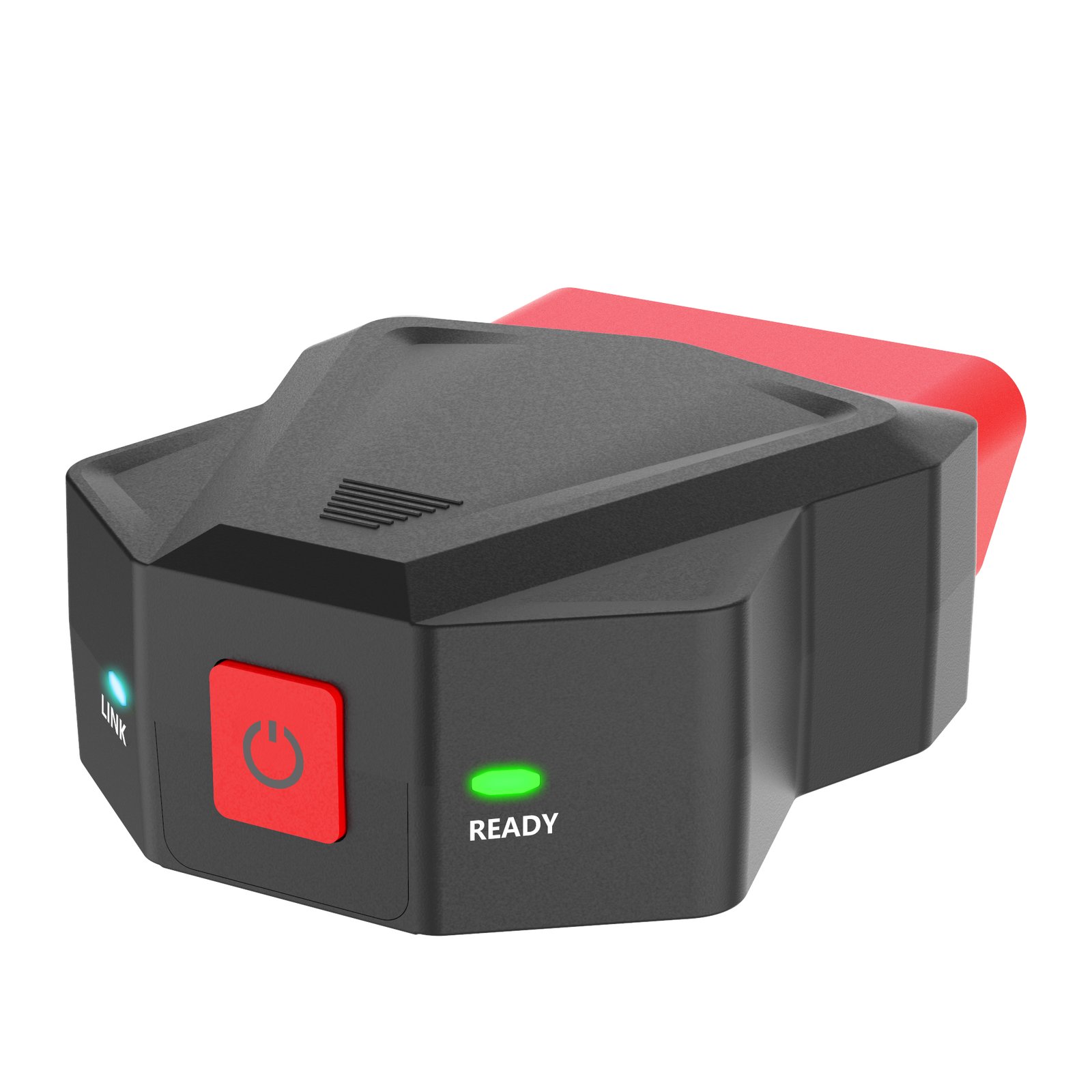

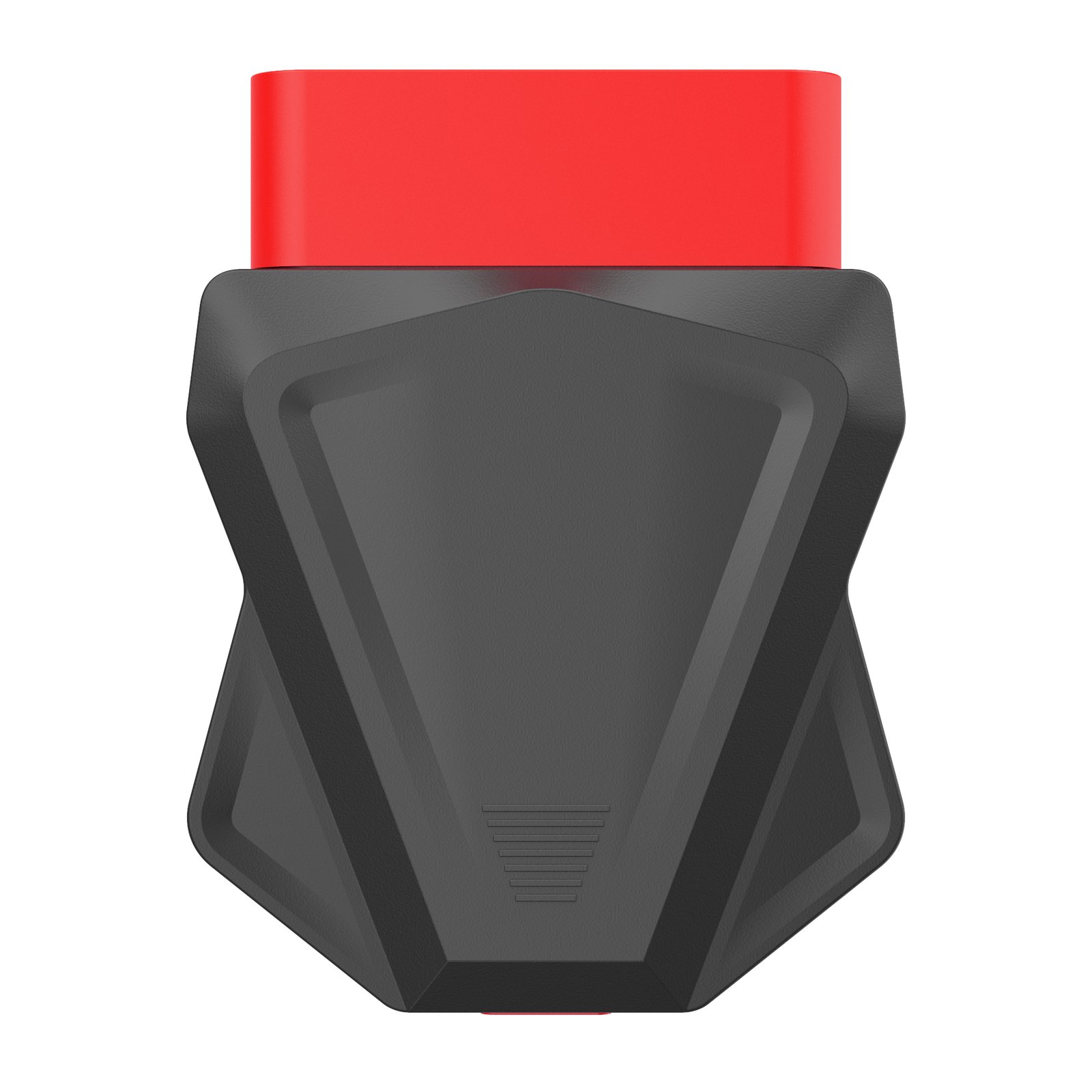

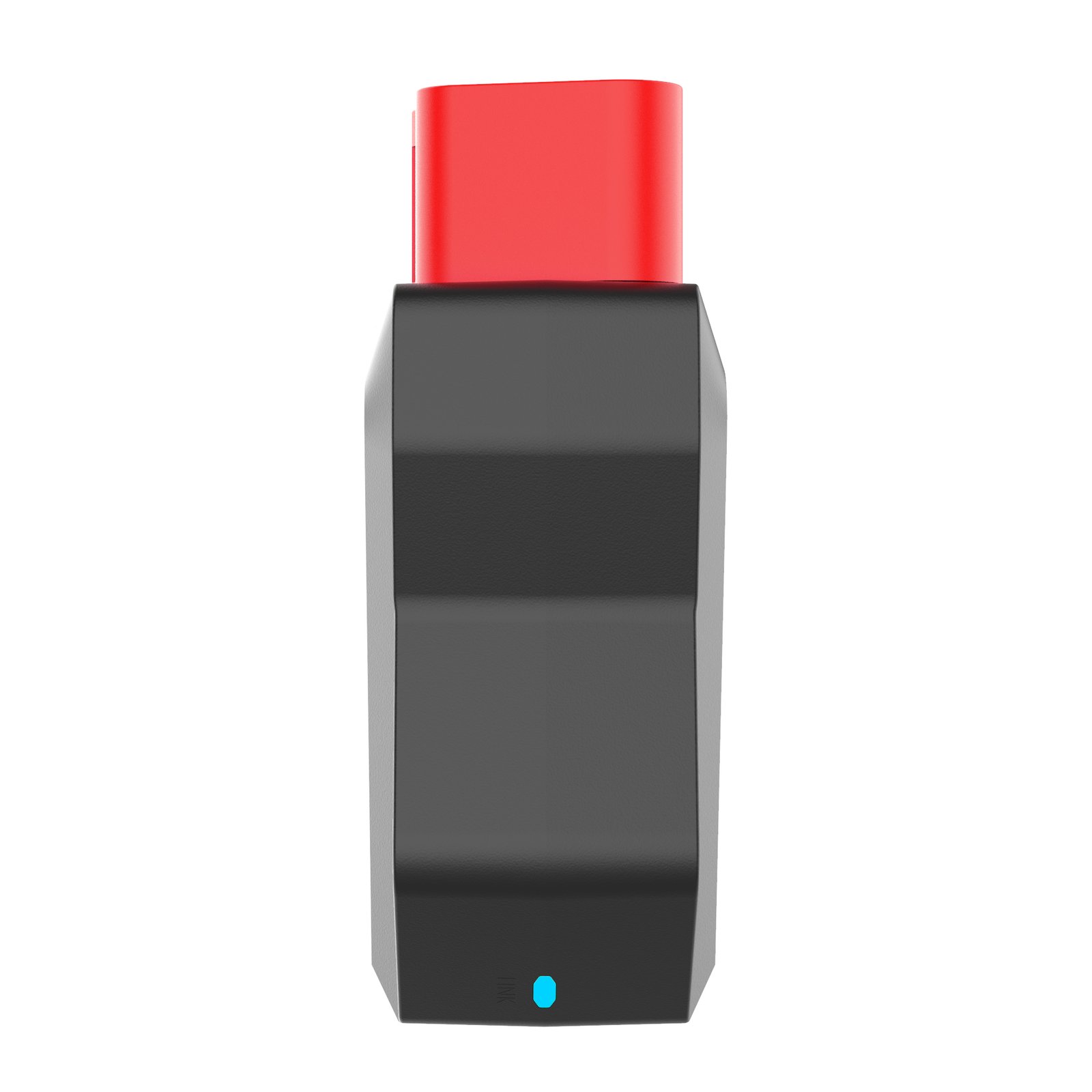

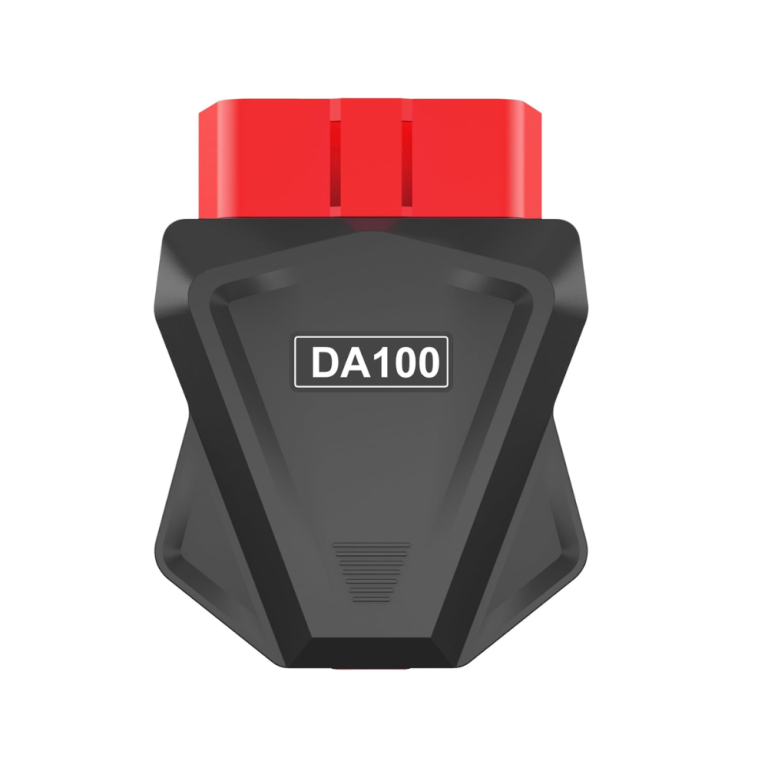

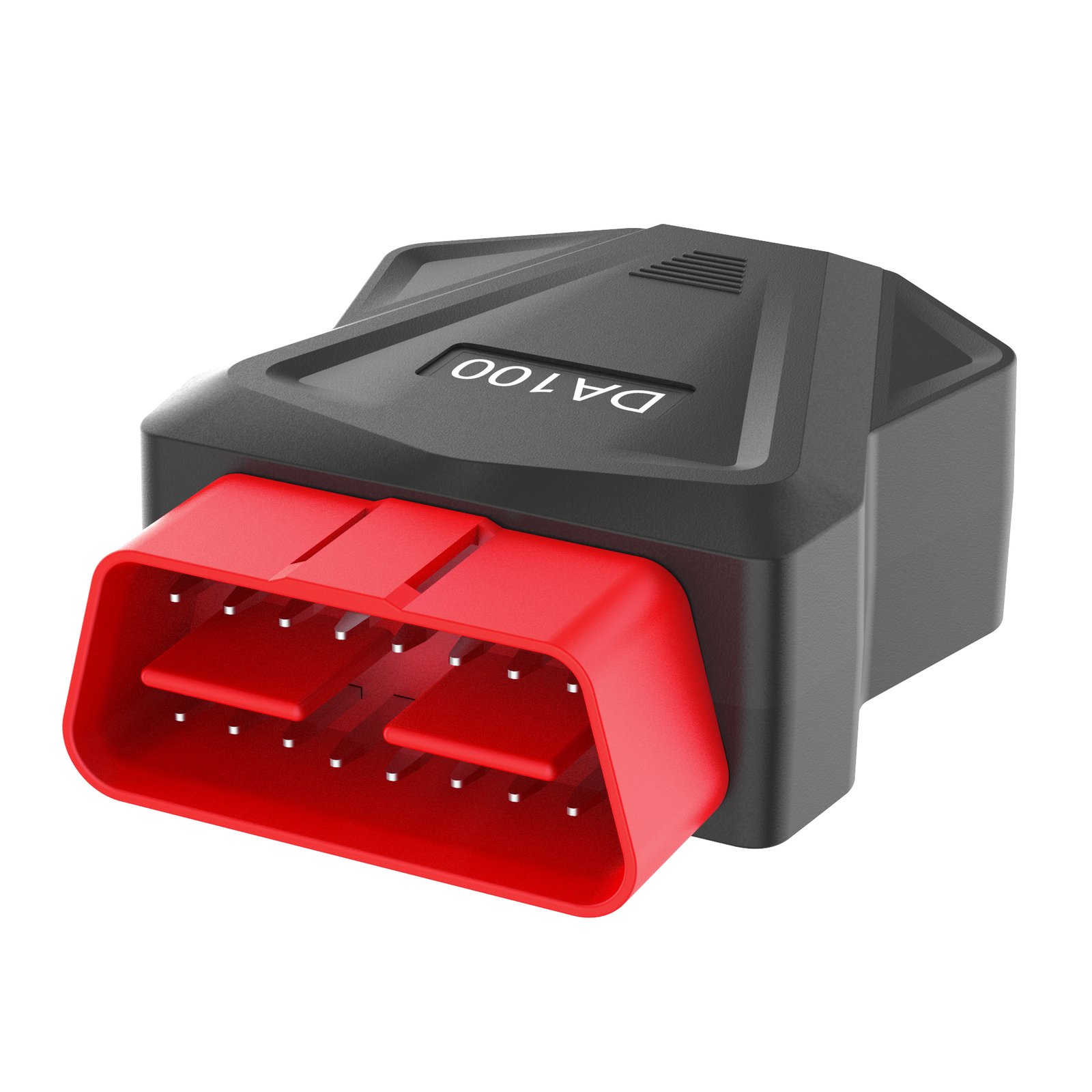

DA100
Compact BLE OBD-II adapter for app-based diagnostics
DA100 is a compact BLE adapter built for iOS and Android app connectivity. It supports DTC read/clear, live data streaming, and core OBD-II modes, making it a good fit for connected vehicle apps, driver-facing workflows, and platform evaluation.
BLE OBD-II Adapter (App-ready)
Compact BLE OBD-II adapter designed for iOS/Android apps—ideal for OEM/ODM evaluation and integration planning for vehicle health platforms.
Read & Clear DTCs (MIL off)
Reads and clears engine/emissions DTCs and turns off the MIL where supported—enabling simple driver-facing “check engine” workflows.
Live Data Stream (Standard PIDs)
Real-time live sensor streaming for in-app dashboards and alerts; available PIDs depend on vehicle ECU/model year.
OBD-II Standard Modes
Supports standard OBD-II modes including Freeze Frame, I/M Readiness, O2 sensor test, Mode 6, and Vehicle Info (VIN/CID where supported).
PRODUCT SPECIFICATIONS
Functions
- Reads and clears engine/emissions Diagnostic Trouble Codes (DTCs) (subject to vehicle conditions and regulations)
- Check Engine Light (MIL) off via DTC clearing (where supported)
- OBD-II standard modes: live data, freeze frame, I/M readiness, O2 sensor test, Mode 6, vehicle information (VIN/CID where supported)
- Real-time data stream (standard PIDs) such as RPM, speed, coolant temperature, fuel trim, etc. (PID availability depends on the vehicle)
- Works with compatible third-party OBD-II apps or customer-developed apps (app not included)
- Note: advanced diagnostics (ABS/SRS/TPMS/body modules, etc.) require vehicle- and app-specific support and are not part of the OBD-II standard
OBD-II Protocols
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (fast init, 10.4 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
Data PIDs
- Diagnostic Trouble Codes (DTC) readout
- Clear fault codes (erase DTCs and turn off MIL)
- Engine speed (RPM)
- Calculated load value
- Coolant temperature
- Fuel system status
- Vehicle speed
- Short-term fuel trim
- Long-term fuel trim
- Intake manifold pressure
- Ignition timing advance
- Intake air temperature
- Mass air flow rate
- Throttle position (absolute)
- Oxygen sensor voltage / fuel trim related data (where supported)
- Fuel pressure (where supported)
- Note: supported data items vary by vehicle model and ECU implementation.
Hardware Specs
- Communication method: Bluetooth 4.0 / Bluetooth 5.4 / BLE
- Operating voltage: DC 9–16 V
- Operating temperature: -20 to 60°C
- Storage temperature: -20 to 60°C
- Product size: 64.5 × 49 × 24 mm
- Weight: 30 g (product); 61 g (with packaging)
- Supported systems: iOS, Android
OBD Connector
- OBD male connector (standard 16-pin OBDII interface).
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Reserved | 9 | Reserved |
| 2 | J1850+ | 10 | J1850- |
| 3 | Reserved | 11 | Reserved |
| 4 | Chassis Ground | 12 | Reserved |
| 5 | Signal Ground | 13 | Reserved |
| 6 | CAN High (CANH) | 14 | CAN Low (CANL) |
| 7 | K-Line | 15 | L-Line |
| 8 | Reserved | 16 | Power (+12V) |
Compliance & Packaging
- Certifications: CE, FCC, RoHS, UKCA
- Supported languages: English, German, French, Spanish, Italian, Russian, Chinese, Japanese, Portuguese, Korean
- Package size: 87 × 73 × 30 mm
- Carton size: 36.5 × 32 × 39.5 cm
- Quantity per carton: 200 pcs/carton
- Storage conditions: store in a clean, ventilated, cool, and dry place; keep moisture-proof.
- Transportation & handling: ship in cartons; handle with care; avoid heavy vibration, shock, or compression; prevent contamination and package damage; protect from rain and direct sunlight; suitable for road, rail, sea, and air transport.
- Care & safety notes: do not use abrasive cleaners; do not heat or place near open flames; do not expose to direct sunlight for long periods; do not disassemble or modify (no user-serviceable parts).
DOWNLOAD
Technical Documents
Support Guides
GET YOUR ORDER
Standard Packaging
- Standard package contents: Adapter ×1; User Manual ×1; Color box ×1.
- Accessories and packing list can be customized for OEM/ODM and private-label orders.
MOQ & Pricing Structure
- Sample MOQ: 1–10 pcs
- Standard (bulk) MOQ: 100 pcs
- White-label / OEM MOQ: 1,000 pcs
- ODM MOQ: 10,000 pcs
- Note: MOQs may vary based on packaging and customization scope.
- Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
Sample & Lead Time
- Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
- White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
- ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
- Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
Customization Options (OEM/Private Label)
- Branding (White-label): logo printing (silkscreen) or label/sticker service.
- Documentation & packaging: customized user manual and retail box packaging.
- Appearance options: housing color customization (project-dependent).
- ODM (project-based): industrial design / enclosure appearance customization.
Quality, Warranty & Compliance
- Warranty: 1 year replacement.
- Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
- Quality system: ISO 9001 certified.
- Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
- Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
- Compliance: compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
Shipping & Carton Info
- Shipping: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes).
- Duty-paid option (DDP, air door-to-door): available upon request. We can quote and pre-collect freight + duties/taxes where supported.
- HS Code (reference): 9031.80.9090 (may vary by destination country).
