V101M

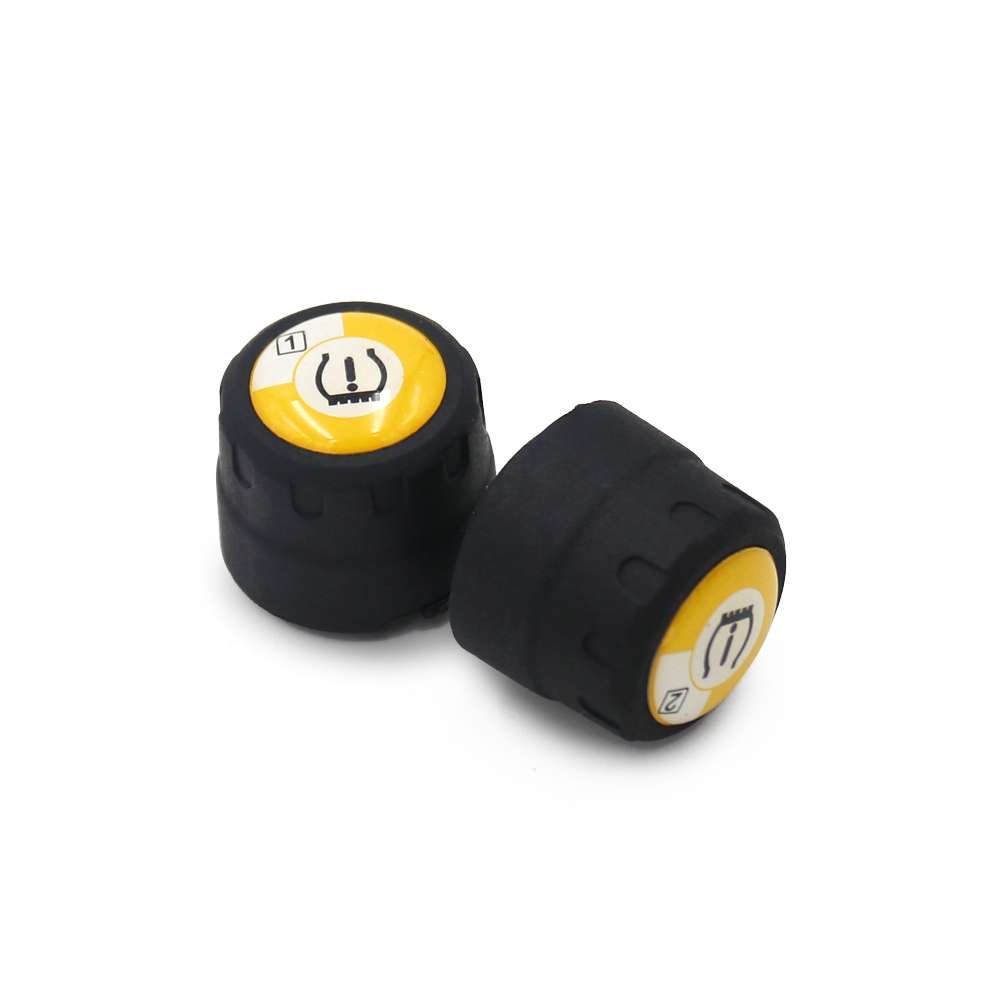

BLE smartphone TPMS external sensor kit with anti-theft accessories

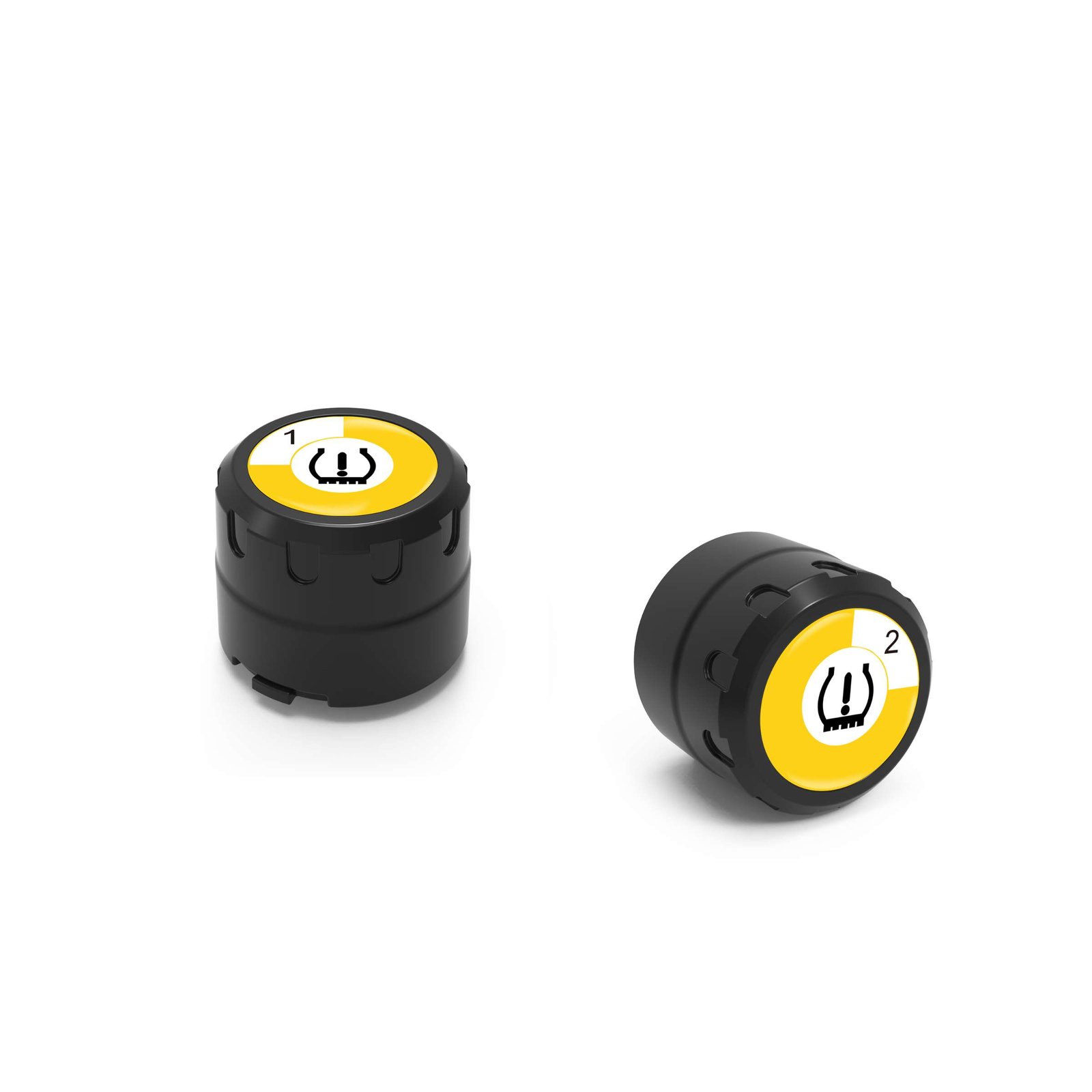

V101M is a BLE (Bluetooth 4.0+) external TPMS sensor that measures tire pressure and temperature at the wheel and transmits data to a smartphone app. Fast response (≤ 5 s), IP67 protection, and low-power design make it suitable for long-term aftermarket programs.

ORDER NOW
Schedule A Call
v101m
v101m
v101m
v101m
v101m

PRODUCT USE CASES

View All

v101m

Pressure & Temperature at the Wheel

Direct measurement of tire pressure and temperature with real-time display in a mobile app.

Fast Pairing + Position Binding

Bind sensors by ID/QR card (kit dependent) and assign positions (LF/RF/LR/RR) for clear, usable monitoring.
v101m
v101m

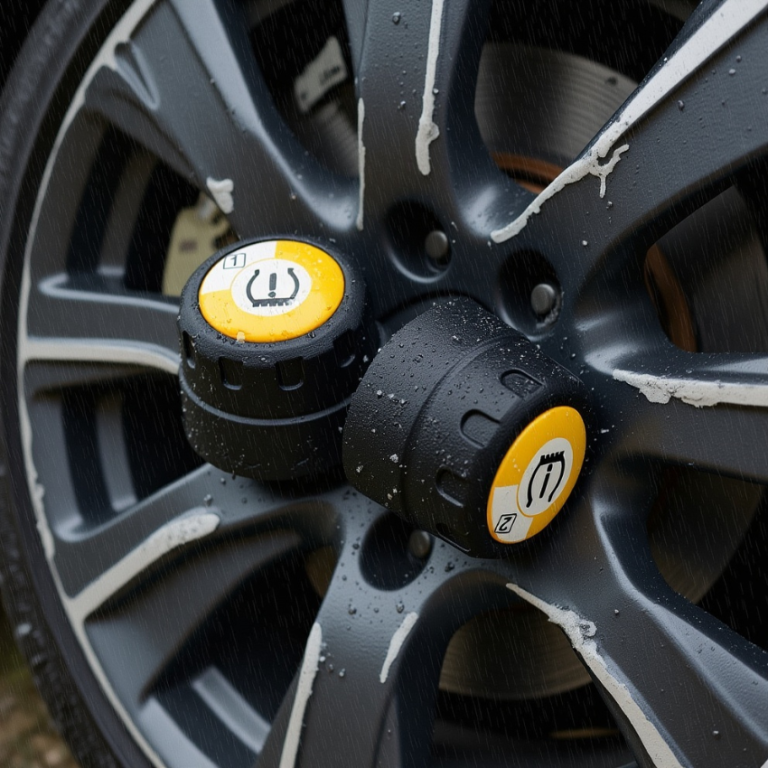

IP67 Waterproof

Sealed to IP67 for rain and road conditions; designed for outdoor vehicle environments.

Low-Power Battery Design

Low sleep current (≤ 2.2 µA) with 140 mAh battery supports 3–5 years typical battery life (usage-dependent).
v101m

PRODUCT SPECIFICATIONS

Functions
  • Direct TPMS monitoring: pressure + temperature measured at the wheel
  • BLE communication (Bluetooth 4.0 or above) to smartphone
  • Real-time display and app alerts (thresholds configured in app)
  • Fast response time: ≤ 5 s
  • IP67 waterproof rating
  • Unique sensor ID for binding and tire position assignment
  • Processor: ARM M0
  • Communication: Bluetooth 4.0 or above (BLE), RF 2.4 GHz, TX power 0 dBm (max.)
  • Working voltage: 3 V
  • Working current: 100 µA
  • Standby current: ≤ 2.2 µA
  • Waiting / response time: ≤ 5 s
  • Ingress protection: IP67
  • Operating humidity: 95% RH (max.)
  • Tire pressure range: 100–1300 kPa; accuracy: ± 10 kPa
  • Temperature accuracy: ± 3 °C
  • Operating temperature (external): −30 °C to +80 °C
  • Storage temperature (external): −30 °C to +85 °C
  • Battery capacity: 140 mAh; battery life: 3–5 years (typ.)
  • Sensor weight: 8 g ± 1 g
  • Compatibility: Android/iOS smartphones with Bluetooth 4.0 or above
  • System type: direct TPMS (pressure/temperature measured at the wheel)
  • Alarm thresholds are configured in the mobile application
  • Ingress protection: IP67
  • Compatibility: Android/iOS with Bluetooth 4.0 or above (BLE)
  • Compliance documentation (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by version, batch, and target market

GET YOUR ORDER

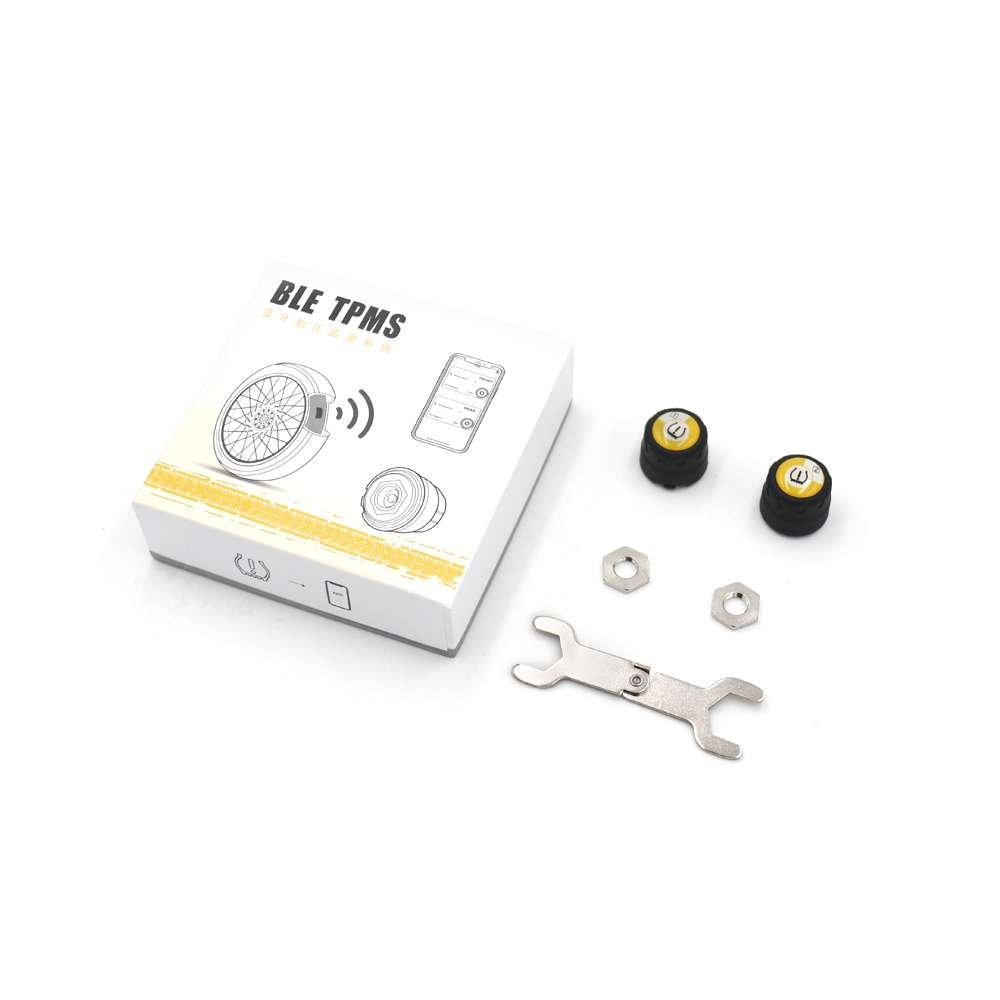

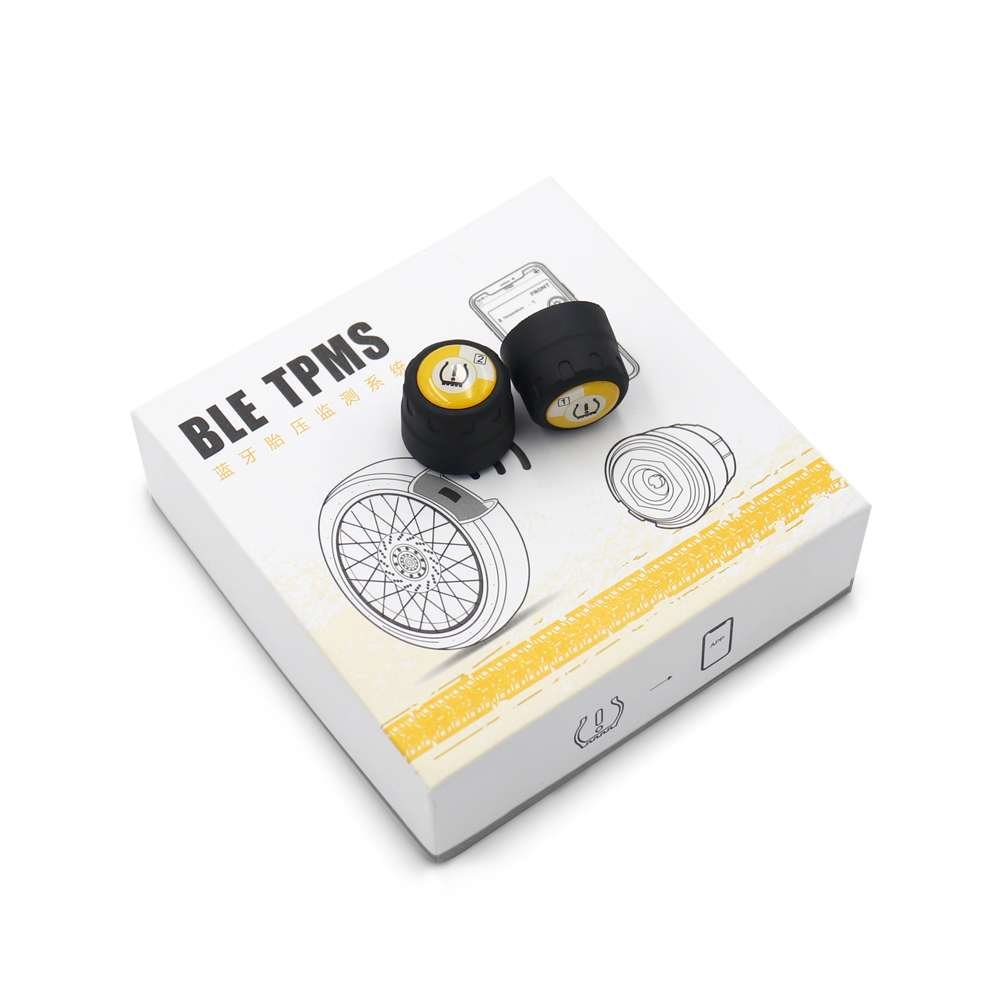

Standard Packaging
  • 2× external TPMS sensors
  • 2× anti-theft locks (locking nuts/screws)
  • 1× wrench (installation/removal tool)
  • 1× pairing card (QR code / sensor ID reference)

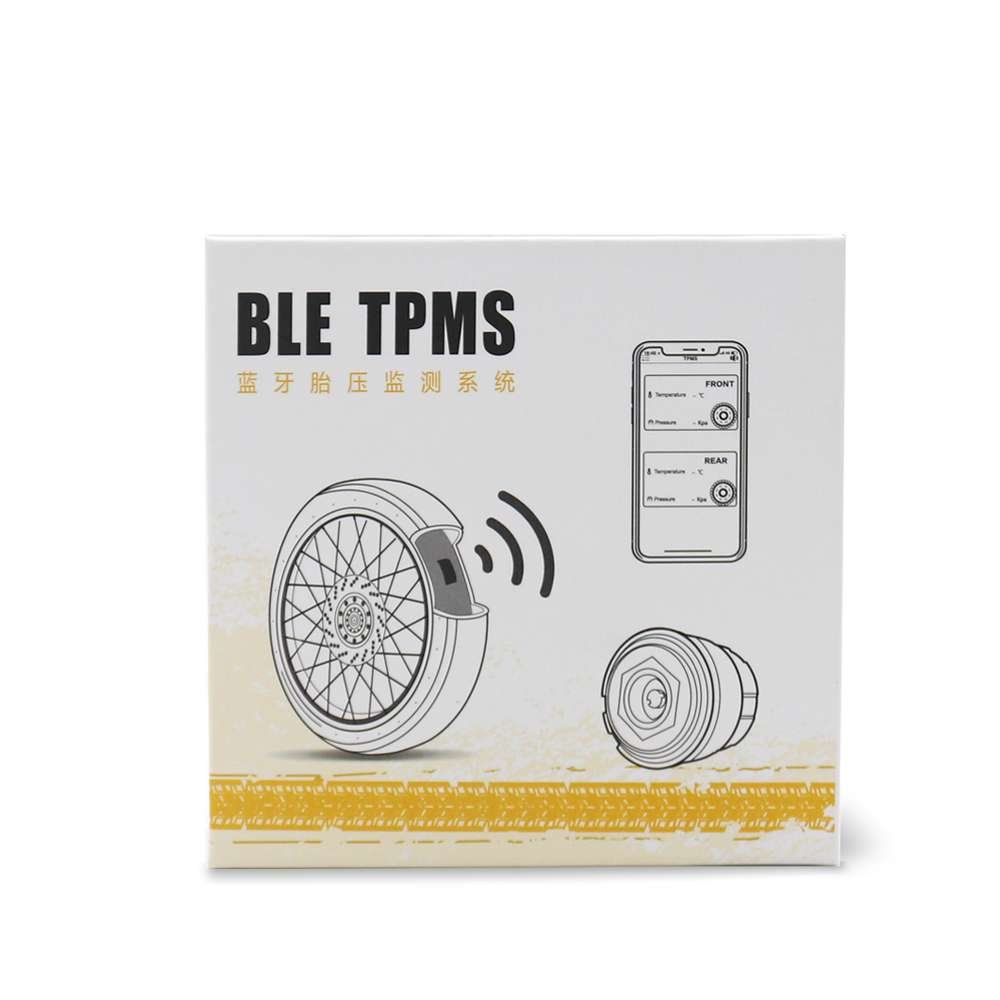

  • 1× retail box
  • Sample MOQ: 1–10 pcs
  • Standard (bulk) MOQ: 100 pcs
  • White-label / OEM MOQ: 500 pcs
  • ODM MOQ: 5,000 pcs
  • Note: MOQs may vary based on packaging and customization scope.
  • Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
  • Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
  • White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
  • ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
  • Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
  • Branding (White-label): logo printing (silkscreen) or label/sticker service.
  • Documentation & packaging: customized user manual and retail box packaging.
  • Appearance options: housing color customization (project-dependent).
  • ODM (project-based): industrial design / enclosure appearance customization.
  • Warranty: 1 year replacement.
  • Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
  • DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
  • Quality system: ISO 9001 certified.
  • Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
  • Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
  • Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
  • Single-unit retail pack size: 100 × 100 × 30 mm
  • Single-unit gross weight: 100 g
  • Shipping method: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes)
  • Duty-paid option (DDP, air door-to-door): available upon request
  • Carton quantity, carton dimensions, and carton gross weight: to be confirmed based on final kit configuration and packaging arrangement
GET YOUR ORDER

Source with OEM Options — Fast & Reliable

Get OEM pricing, MOQ, lead time, and a sample plan — we’ll respond within 24 hours with a quote-ready offer.

  • OEM / Private Label: logo, housing, packaging
  • Stable Supply: consistent batches & QC support
  • Documentation Pack: spec, manual, FAQ, troubleshooting
  • Compliance Docs: CE / FCC / RoHS (on request)
  • Pre-sales Support: compatibility check & RMA process

Request a Quote

Share quantity + OEM requirement to receive pricing & lead time.

GET PRICING & LEAD TIME
REQUEST SAMPLES

No commitment. We’ll recommend the best configuration and packaging for your channel.
