V015
Bluetooth OBD-II adapter for multi-platform diagnostics
V015 offers Bluetooth connectivity with support across Android, iOS, and Windows software environments. It combines app-side DTC read/clear with live sensor data, making it a flexible choice for mobile diagnostics and multi-device support workflows.
Bluetooth OBDII Adapter
Bluetooth 4.0 connectivity for pairing with mobile apps—enables smooth, low-friction driver onboarding and reliable app-side data capture workflows.
Read & Clear DTCs
App-side DTC read/clear (generic + manufacturer-specific) with MIL off support—enables fast driver self-checks and scalable support workflows.
Live Sensor Data
View real-time sensor parameters such as RPM, coolant temperature, and fuel trims (availability depends on vehicle/app) to validate symptoms and support troubleshooting.
Multi-Platform Software
Supports Android, iOS, and Windows software environments—helps you deploy across driver and support workflows without changing hardware.
PRODUCT SPECIFICATIONS
Functions
- Read diagnostic trouble codes (generic + manufacturer-specific) and display meanings (spec notes a database with 3000+ generic code definitions)
- Clear fault codes and turn off MIL (Check Engine indicator)
- Display live sensor data (e.g., RPM, calculated load, coolant temperature, fuel system status, vehicle speed, fuel trims, intake manifold pressure, ignition timing, intake air temperature, air flow rate, throttle position, oxygen sensor voltage, fuel pressure, fuel consumption monitoring, etc.)
- Compatible software examples (per spec): Windows (ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.); Android (Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.); Symbian (OBDScope).
- Upgrade / update: not specified
OBD-II Protocols
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (fast init, 10.4 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
Data PIDs
- Read diagnostic trouble codes (DTC)
- Clear fault codes and turn off MIL
- Engine speed (RPM)
- Calculated load value
- Coolant temperature
- Fuel system status
- Vehicle speed
- Short-term fuel trim
- Long-term fuel trim
- Intake manifold pressure
- Ignition timing advance
- Intake air temperature
- Air flow rate
- Throttle position (absolute)
- Oxygen sensor voltage related to short-term fuel trim
- Fuel pressure
- Fuel consumption monitoring, etc.
Hardware Specs
- Communication method: Bluetooth 4.0
- Main control chip: MM32L073
- Software platform: Android / Windows / iOS
- Working voltage: 12 V
- Working current: 32 mA
- Working temperature: 40°C to 80°C
- Working humidity: <60% RH
- Dimensions: 57 × 46.2 × 24.2 mm

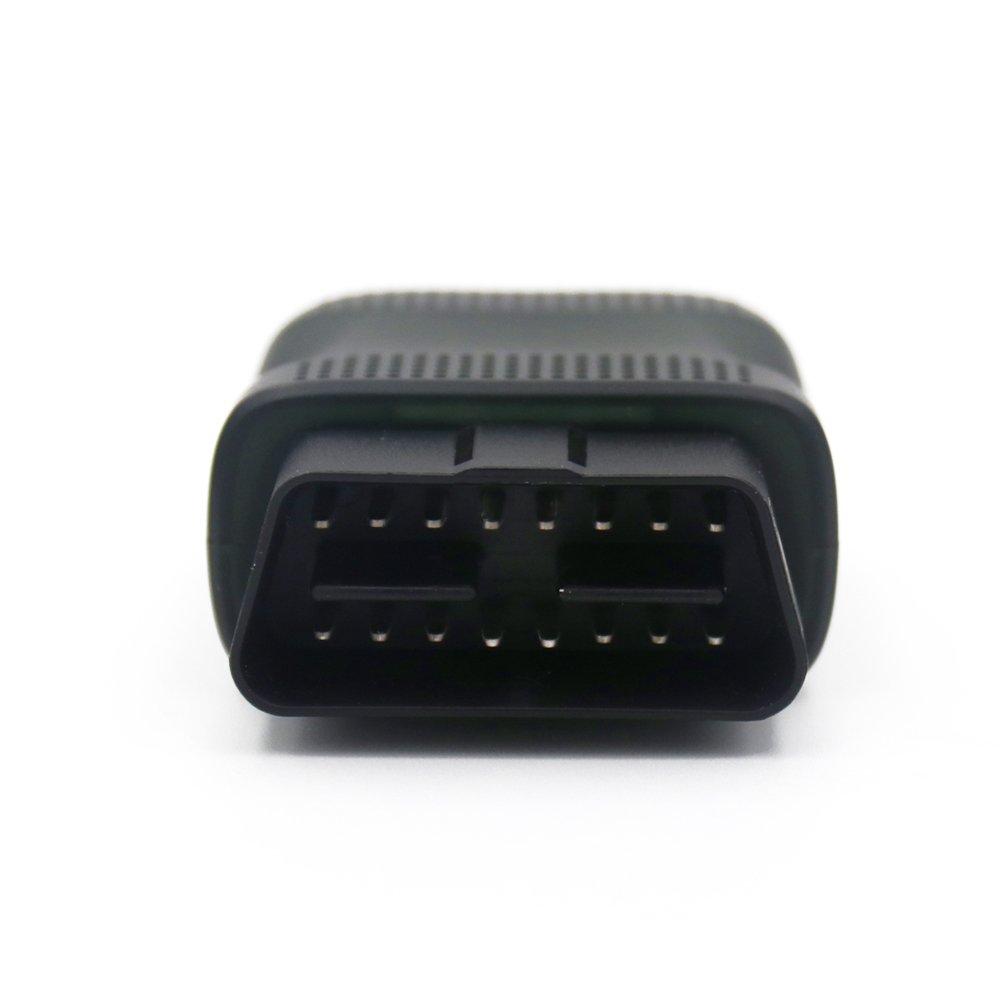

OBD Connector
- OBD male connector (standard 16-pin OBDII interface).
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Single Wire CAN | 9 | Reserved |
| 2 | J1850+ | 10 | J1850- |
| 3 | Reserved | 11 | Reserved |
| 4 | Chassis ground | 12 | Reserved |
| 5 | Signal ground | 13 | Reserved |
| 6 | CAN High (CANH) | 14 | CAN Low (CANL) |
| 7 | K-Line | 15 | L-Line |
| 8 | Reserved | 16 | Power |
Compliance & Packaging
- Certifications: CE, FCC, RoHS, UKCA

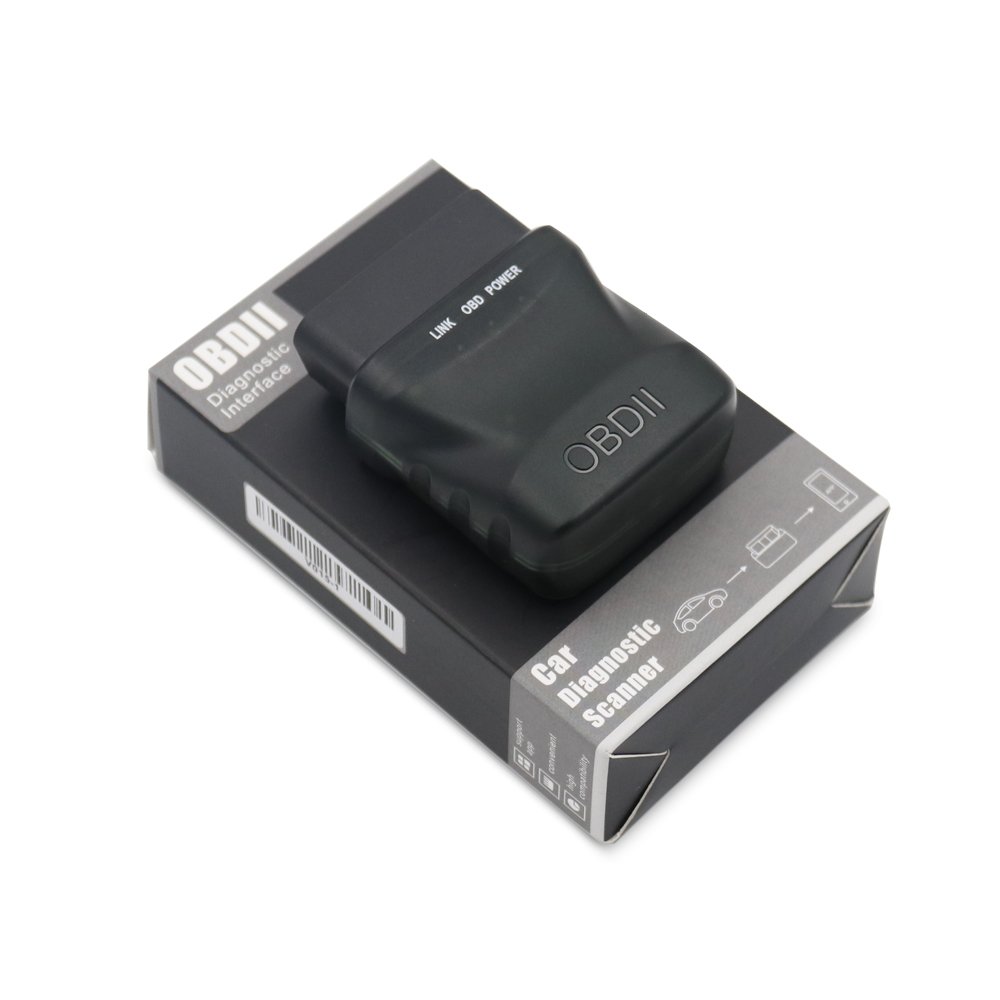

- Package contents: Adapter ×1; Manual ×1; Box ×1
- Package size: 100 × 63 × 25.5 mm
- Carton size: 42 × 27 × 34 cm
- Quantity per carton: 200 pcs/carton
- Net weight: 28 g
- Gross weight: 38 g
- Storage conditions: store in a clean, ventilated, cool, and dry place; keep moisture-proof.
- Transportation & handling: ship in cartons; handle with care; avoid heavy vibration, shock, or compression; prevent contamination and package damage; protect from rain and direct sunlight; suitable for road, rail, sea, and air transport.
- Care & safety notes: do not use abrasive cleaners; do not heat or place near open flames; do not expose to direct sunlight for long periods; do not disassemble or modify (no user-serviceable parts).
DOWNLOAD
Technical Documents
Support Guides
GET YOUR ORDER
Standard Packaging
- Standard package contents: V015 OBD-II adapter ×1; user manual ×1; retail box ×1.
- Accessories and detailed packing list can be customized for OEM/ODM and private-label orders.
MOQ & Pricing Structure
- Sample MOQ: 1–10 pcs
- Standard (bulk) MOQ: 100 pcs
- White-label / OEM MOQ: 1,000 pcs
- ODM MOQ: 10,000 pcs
- Note: MOQs may vary based on packaging and customization scope.
- Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
Sample & Lead Time
- Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
- White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
- ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
- Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
Customization Options (OEM/Private Label)
- Branding (White-label): logo printing (silkscreen) or label/sticker service.
- Documentation & packaging: customized user manual and retail box packaging.
- Bluetooth customization: Bluetooth device name can be customized for your brand/app experience.
- Appearance options: housing color customization (project-dependent).
- ODM (project-based): industrial design / enclosure appearance customization.
Quality, Warranty & Compliance
- Warranty: 1 year replacement.
- Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
- DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
- Quality system: ISO 9001 certified.
- Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
- Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
- Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
Shipping & Carton Info
- Shipping: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes).
- Duty-paid option (DDP, air door-to-door): available upon request. We can quote and pre-collect freight + duties/taxes where supported.
- HS Code (reference): 9031.80.9090 (may vary by destination country).
