V101B

External BLE TPMS sensor with stable broadcasting and fast response

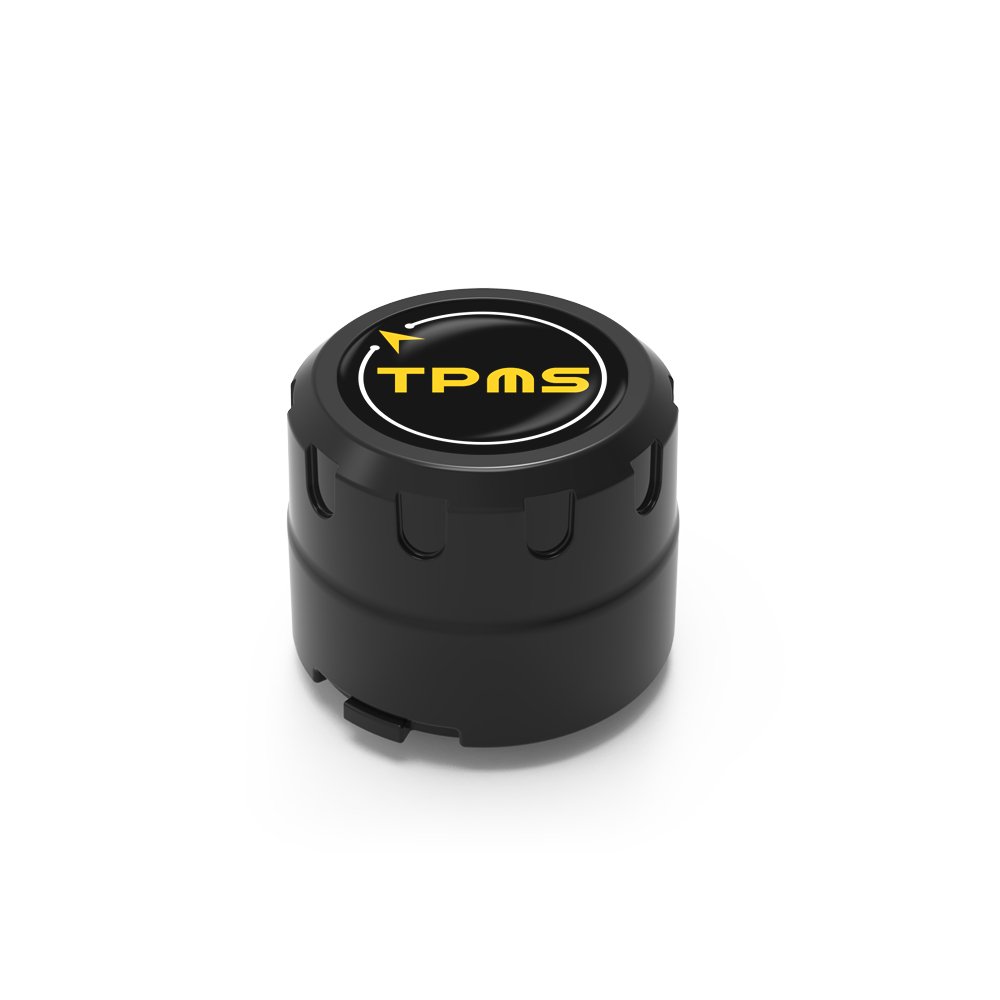

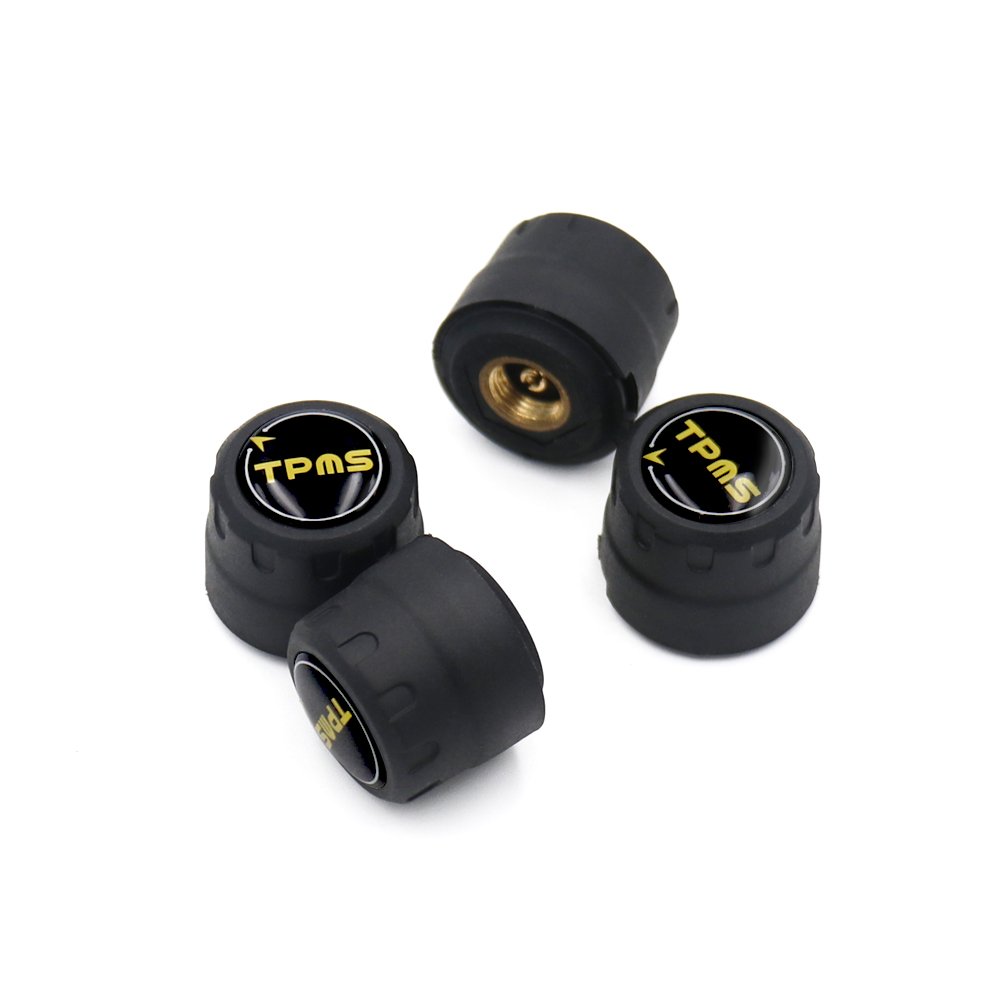

V101B is an external Bluetooth Low Energy (BLE 4.0/5.0) direct TPMS sensor. It measures tire pressure and temperature at the wheel and broadcasts data to a smartphone app for real-time display and alarm notifications. Designed with IP67 protection and low standby current for long service life.

ORDER NOW
Schedule A Call
v101b
v101b
v101b
v101b
v101b
v101b
v101b

PRODUCT USE CASES

View All

v101b

Direct Measurement at the Wheel

Measures tire pressure and temperature directly at the wheel and sends data via BLE to a mobile app for real-time display.

Fast Updates (≤ 5 s)

Quick response time (≤ 5 seconds) supports timely alerts and an improved monitoring experience.
v101b
v101b

IP67 + Outdoor-Ready

IP67 ingress protection and 95% RH max operating humidity support real-world driving environments.

Low Standby Current, Long Battery Life

Ultra-low standby current (≤ 1.4–1.8 µA) supports 3–5 years typical battery life (usage-dependent).
v101b

PRODUCT SPECIFICATIONS

Functions
  • Direct TPMS: tire pressure and temperature measured at the wheel
  • Bluetooth 4.0/5.0 (BLE) communication to smartphone
  • Mobile app display with configurable alarm thresholds (app-dependent)
  • Fast response time: ≤ 5 s
  • Configurable pressure/temperature units (app-dependent)
  • Each sensor has a unique ID for binding to tire positions
  • Core / MCU: ARM M0 / DA14531
  • Bluetooth name (broadcast): TPMS1-4_XXXXXX
  • Communication: Bluetooth 4.0/5.0 (BLE), RF 2.4 GHz, TX power 0 dBm (max.)
  • Operating voltage: 3 V
  • Standby current: ≤ 1.4–1.8 µA
  • Response time: ≤ 5 s
  • Display method: Mobile app
  • Ingress protection: IP67
  • Operating humidity: 95% RH (max.)
  • Tire pressure range: 100–1300 kPa; accuracy: ± 10 kPa
  • Temperature accuracy: ± 3 °C
  • Operating temperature (external): −30 °C to +70 °C
  • Storage temperature (external): −30 °C to +70 °C
  • Battery capacity (external): 140 mAh; battery life: 3–5 years (typ.)
  • Sensor weight: 8 g ± 1 g
  • Mechanical (reference): approx. 21.8 mm × 18.4 mm
  • System type: direct TPMS (pressure/temperature measured at the wheel)
  • Alarm logic and thresholds are configured in the mobile application
  • Ingress protection: IP67
  • Compatibility: smartphone with Bluetooth 4.0 or above (app-dependent)
  • Compliance documentation (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by version, batch, and target market

GET YOUR ORDER

Standard Packaging

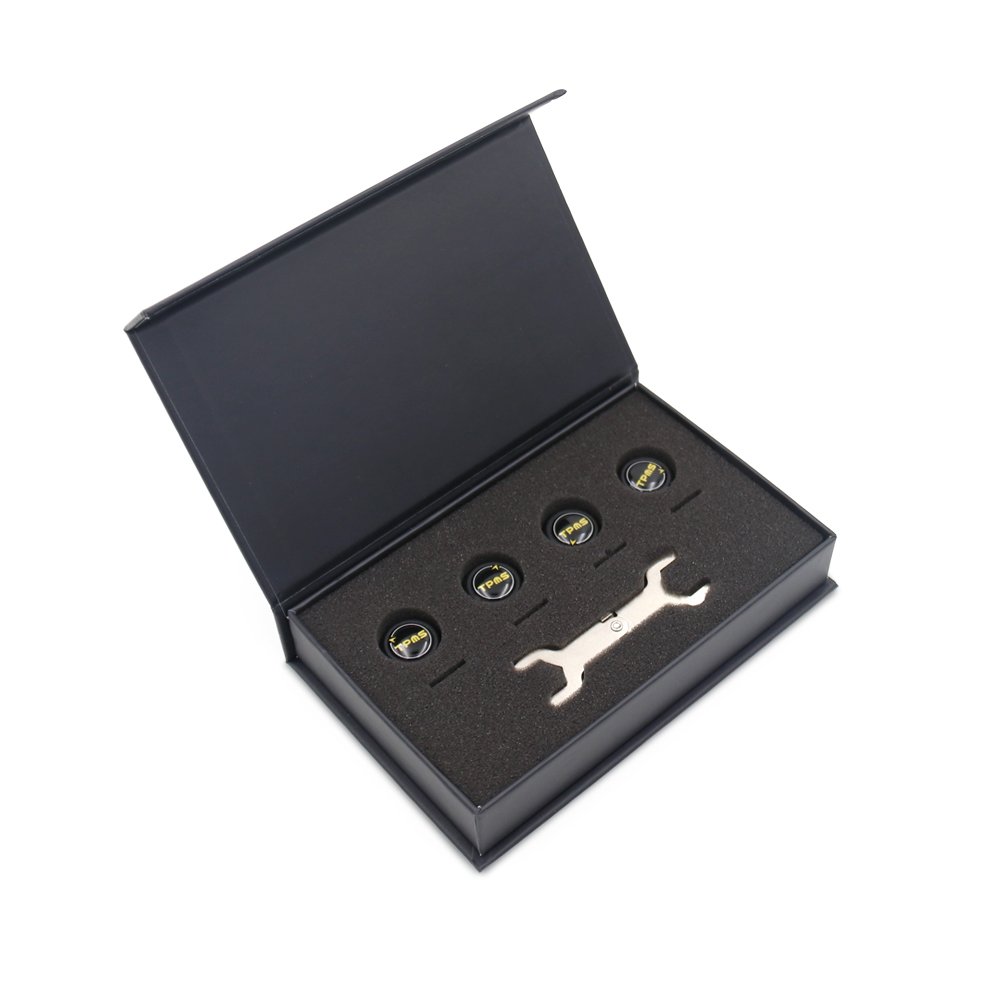

  • Packaging is project-dependent (2/4-sensor kits available).

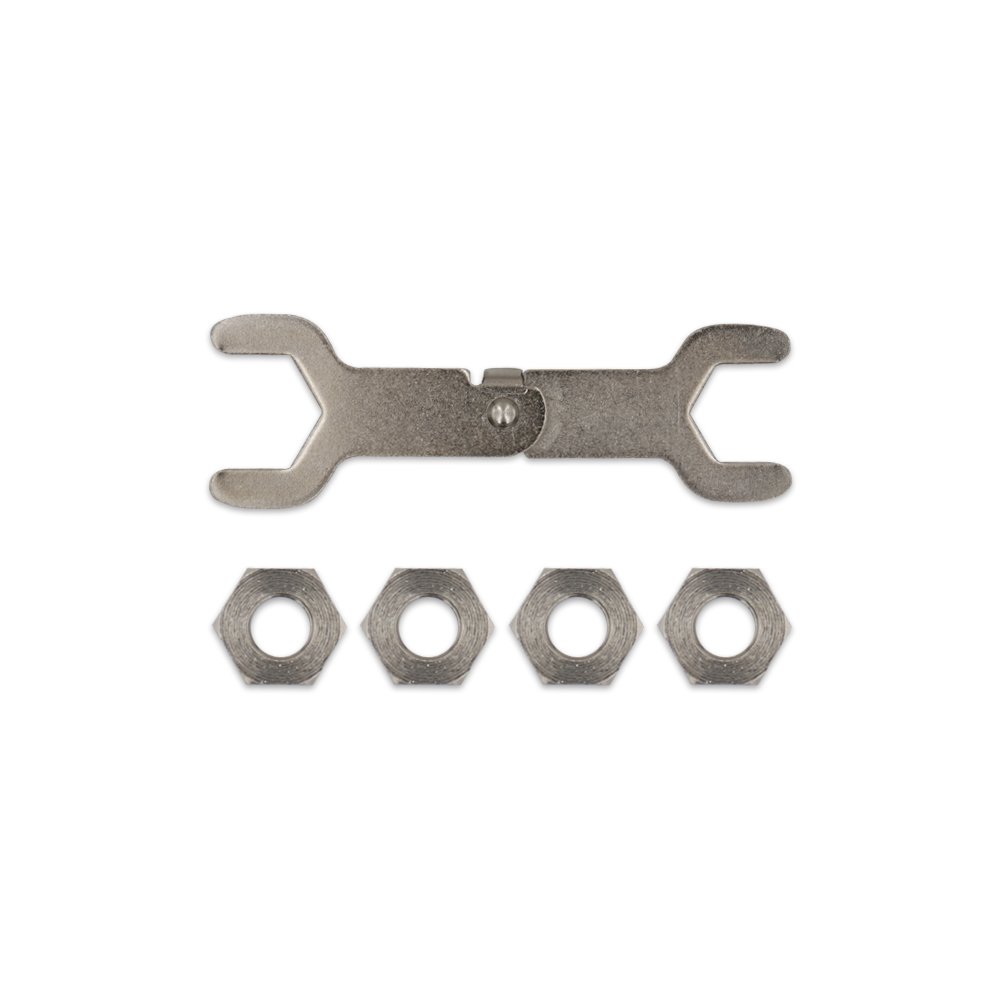

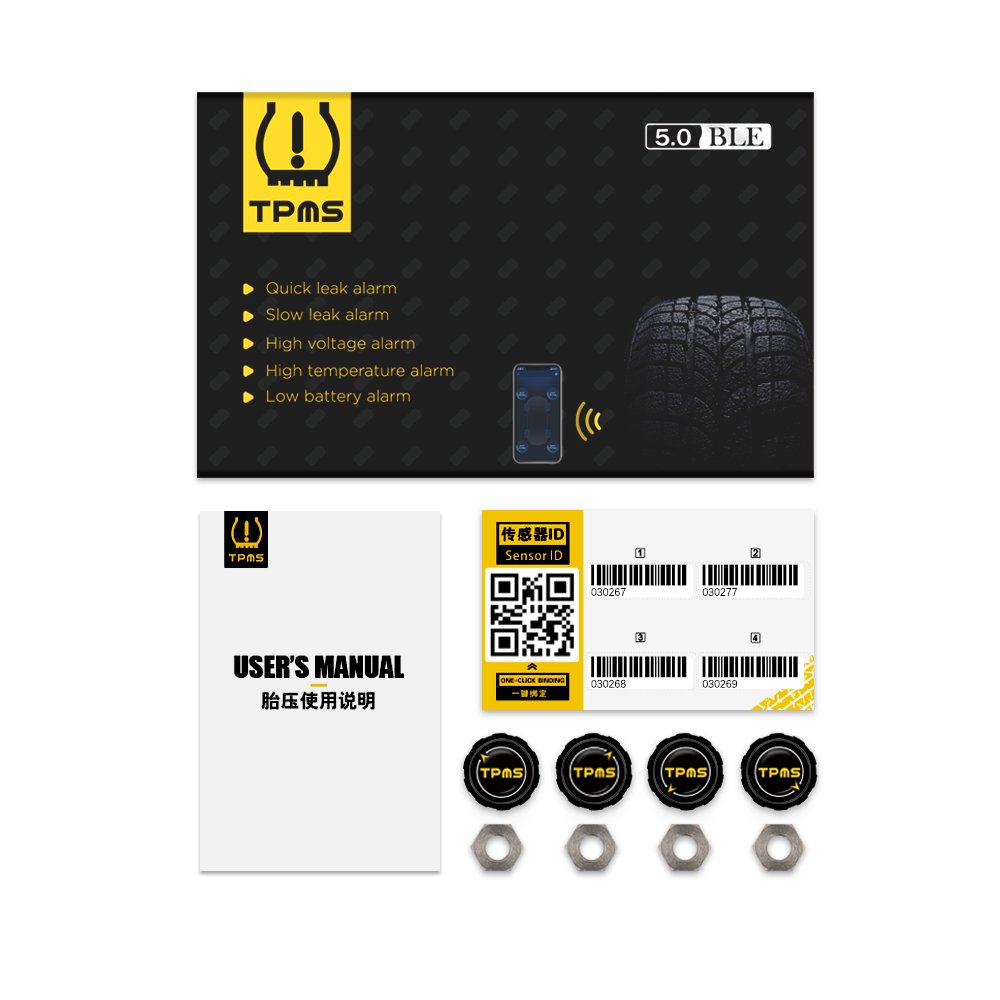

  • Typical kit accessories: anti-theft locks and wrench; pairing card; retail box; user guide (as ordered).
  • Sample MOQ: 1–10 pcs
  • Standard (bulk) MOQ: 100 pcs
  • White-label / OEM MOQ: 500 pcs
  • ODM MOQ: 5,000 pcs
  • Note: MOQs may vary based on packaging and customization scope.
  • Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
  • Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
  • White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
  • ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
  • Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
  • Branding (White-label): logo printing (silkscreen) or label/sticker service.
  • Documentation & packaging: customized user manual and retail box packaging.
  • Appearance options: housing color customization (project-dependent).
  • ODM (project-based): industrial design / enclosure appearance customization.
  • Warranty: 1 year replacement.
  • Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
  • DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
  • Quality system: ISO 9001 certified.
  • Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
  • Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
  • Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
  • Single-unit retail pack size: 160 × 100 × 30 mm
  • Single-unit gross weight: 164 g
  • Shipping method: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes)
  • Duty-paid option (DDP, air door-to-door): available upon request
  • Carton quantity, carton dimensions, and carton gross weight: to be confirmed based on final kit configuration and packaging arrangement
