V11B

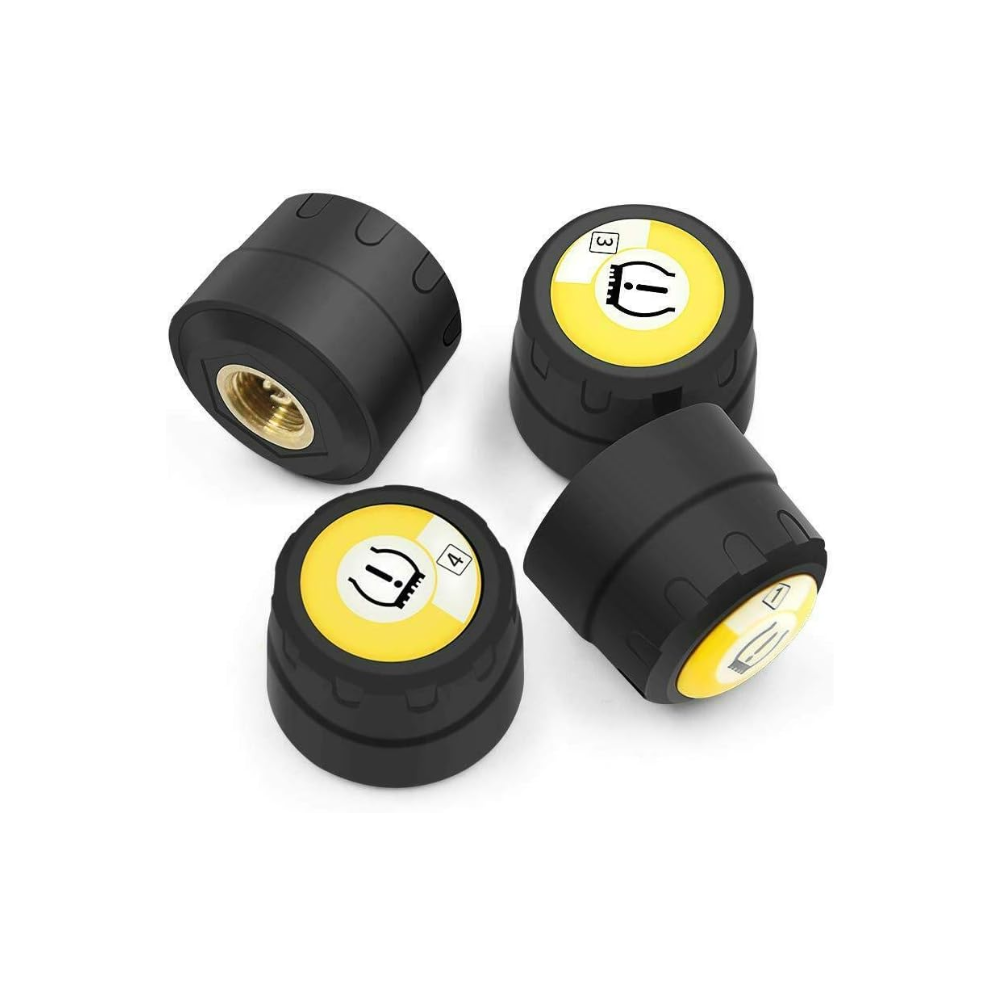

BLE external TPMS sensor for real-time tire pressure & temperature on your smartphone
V11B is a Bluetooth Low Energy (BLE 4.0) direct TPMS sensor that measures tire pressure and temperature at the wheel and transmits data to the TPMSII mobile app. Pair by QR code card or sensor ID to view real-time readings and receive configurable alerts (app-dependent) in ≤ 5 seconds.

ORDER NOW
Schedule A Call
v11b
v11b
v11b
v11b

PRODUCT USE CASES

View All

v11b

Real-Time Pressure & Temperature

Direct measurement at the wheel with fast refresh (≤ 5 s). Monitor both pressure and temperature in the TPMSII mobile app.

App Alerts & Custom Thresholds

Receive high/low pressure, high temperature, and leakage/abnormal status alerts (thresholds and logic configured in the app).
v11b
v11b

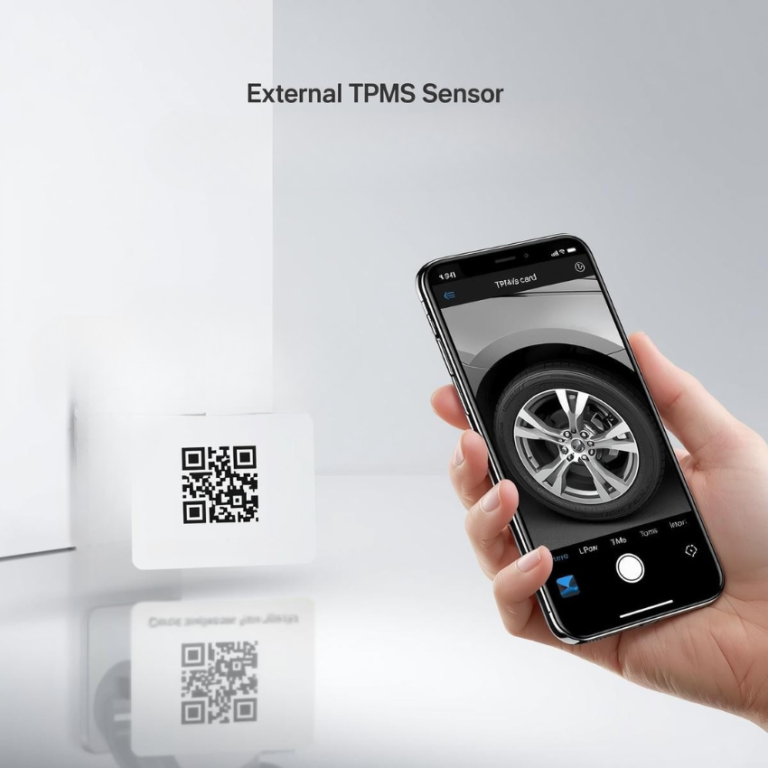

Quick Pairing by QR / Sensor ID

Each sensor has a unique ID. Bind by scanning the QR code card or scanning/entering the sensor ID, then assign tire positions (LF/RF/LR/RR). Auto pairing is supported in the app.

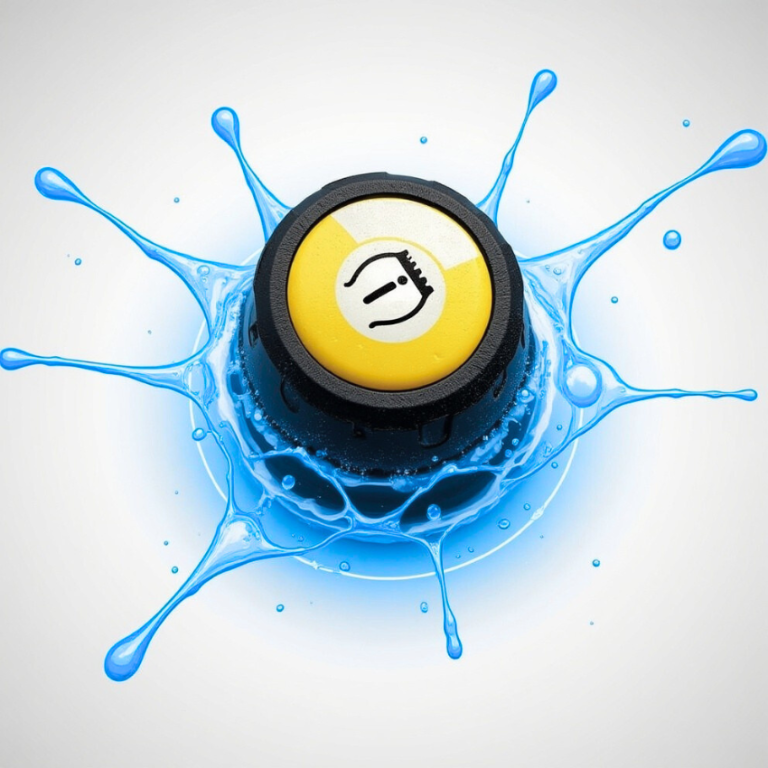

IP67 + Low-Power Design

IP67 waterproof rating and ultra-low sleep current (≤ 2.2 µA) support long battery life (3–5 years typical, usage-dependent).
v11b

PRODUCT SPECIFICATIONS

Functions
  • Direct measurement of tire pressure and temperature (at the wheel)
  • Real-time display in TPMSII mobile app (Android/iOS)
  • Configurable units: PSI / kPa / bar and °C / °F
  • Alerts for abnormal pressure/temperature and leakage/abnormal status (app-dependent)
  • Sensor binding/pairing via QR code card or sensor ID; auto pairing supported
  • Low-power operation for long battery life (usage-dependent)
  • Processor: ARM M0
  • Communication: BLE 4.0 (2.4 GHz), TX power 0 dBm (max.)
  • Working voltage: 3 V
  • Working current: 100 µA
  • Sleep current: ≤ 2.2 µA
  • Response time: ≤ 5 s
  • Ingress protection: IP67
  • Operating humidity: 95% RH (max.)
  • Tire pressure range: 100–1300 kPa; accuracy: ± 10 kPa
  • Tire temperature accuracy: ± 3 °C
  • Operating temperature (external sensor): −30 °C to +80 °C
  • Storage temperature (external sensor): −30 °C to +85 °C
  • Battery capacity (external sensor): 140 mAh; battery life: 3–5 years (typ.)
  • Sensor weight (external sensor): 8 g ± 1 g
  • Mobile app: TPMSII (Android/iOS with Bluetooth 4.0 or above)
  • System type: direct TPMS (pressure/temperature measured at the wheel)
  • App requirement: TPMSII; Android/iOS device must support Bluetooth 4.0 or above
  • Alarm thresholds and mute settings are configured in the mobile app (UI/features may vary by version)
  • Handling & storage: avoid strong impacts/crushing; keep away from high temperatures and corrosive chemicals; store in a dry environment
  • Compliance documentation (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by version, batch, and target market

GET YOUR ORDER

Standard Packaging

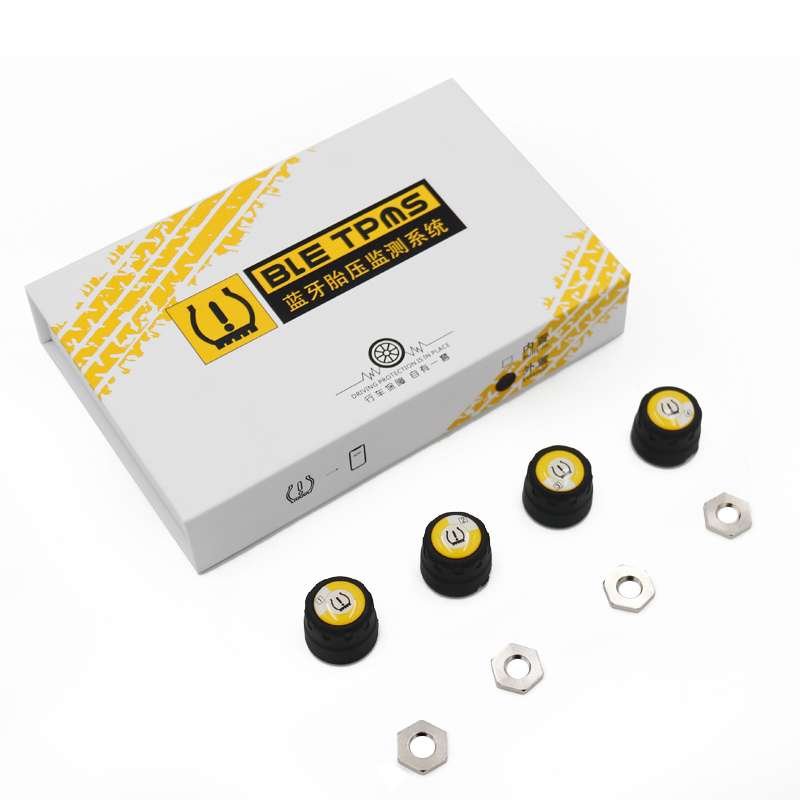

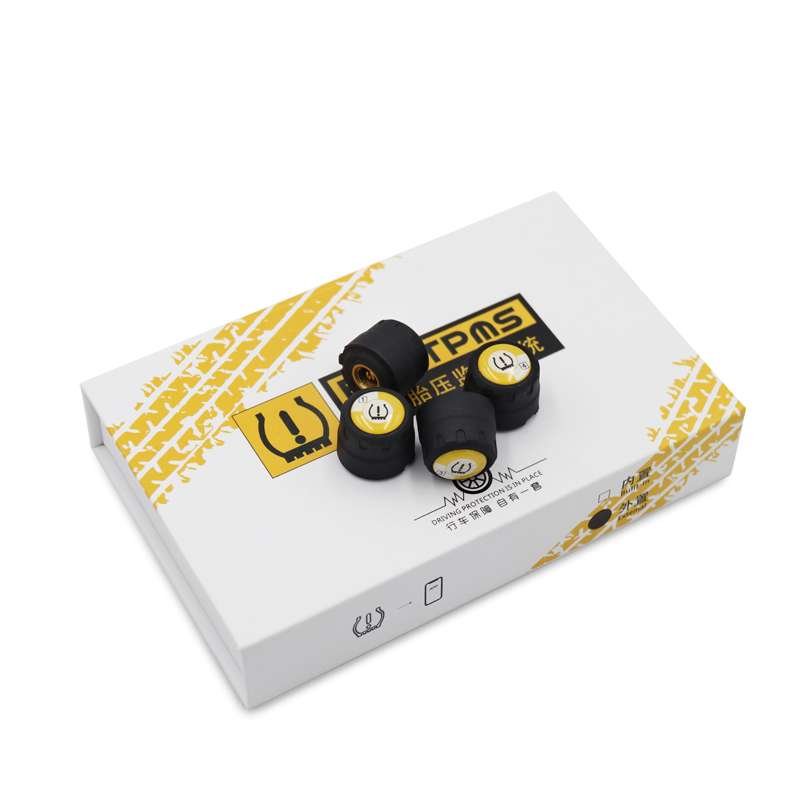

  • Kit contents are project-dependent (2/4-sensor kits available).

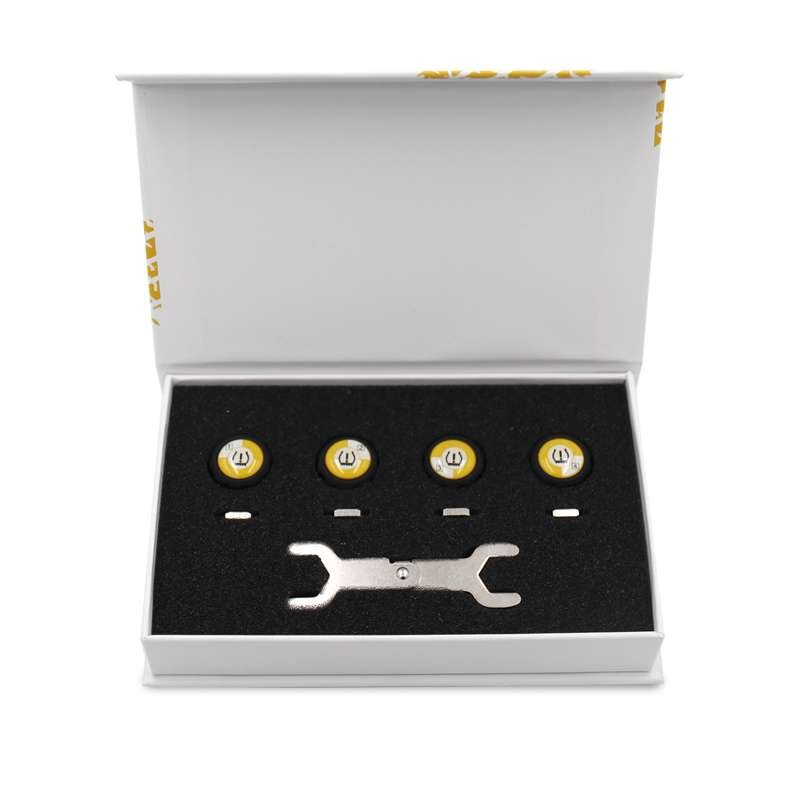

  • Typical external sensor accessories: anti-theft screw/lock and wrench; QR code pairing card; user manual; retail box.
  • Sample MOQ: 1–10 pcs
  • Standard (bulk) MOQ: 100 pcs
  • White-label / OEM MOQ: 500 pcs
  • ODM MOQ: 5,000 pcs
  • Note: MOQs may vary based on packaging and customization scope.
  • Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
  • Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
  • White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
  • ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
  • Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
  • Branding (White-label): logo printing (silkscreen) or label/sticker service.
  • Documentation & packaging: customized user manual and retail box packaging.
  • Appearance options: housing color customization (project-dependent).
  • ODM (project-based): industrial design / enclosure appearance customization.
  • Warranty: 1 year replacement.
  • Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
  • DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
  • Quality system: ISO 9001 certified.
  • Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
  • Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
  • Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
  • Single-unit retail pack size: 160 × 100 × 30 mm
  • Single-unit gross weight: 168 g
  • Shipping method: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes)
  • Duty-paid option (DDP, air door-to-door): available upon request
  • Carton quantity, carton dimensions, and carton gross weight: to be confirmed based on final kit configuration and packaging arrangement
