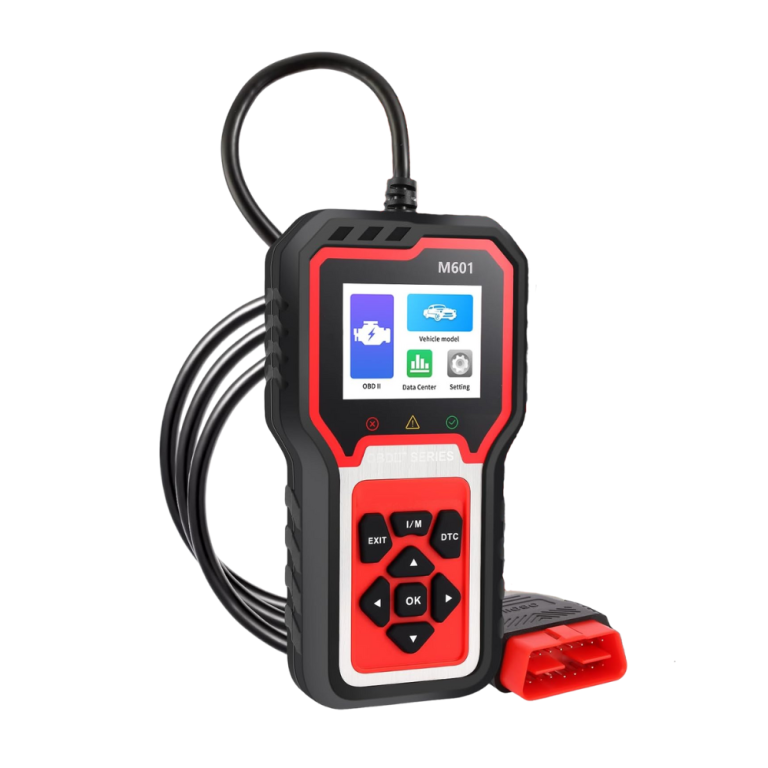

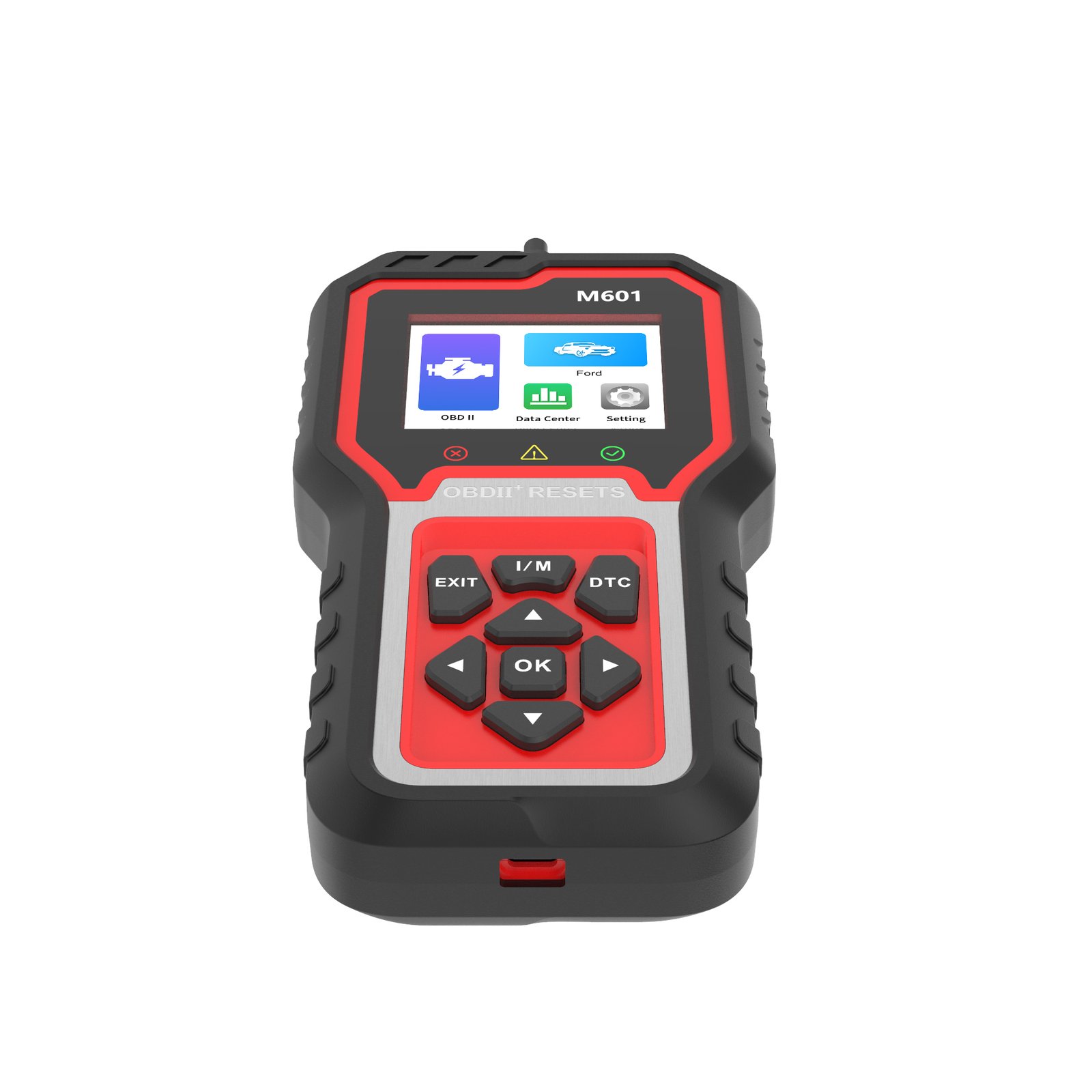

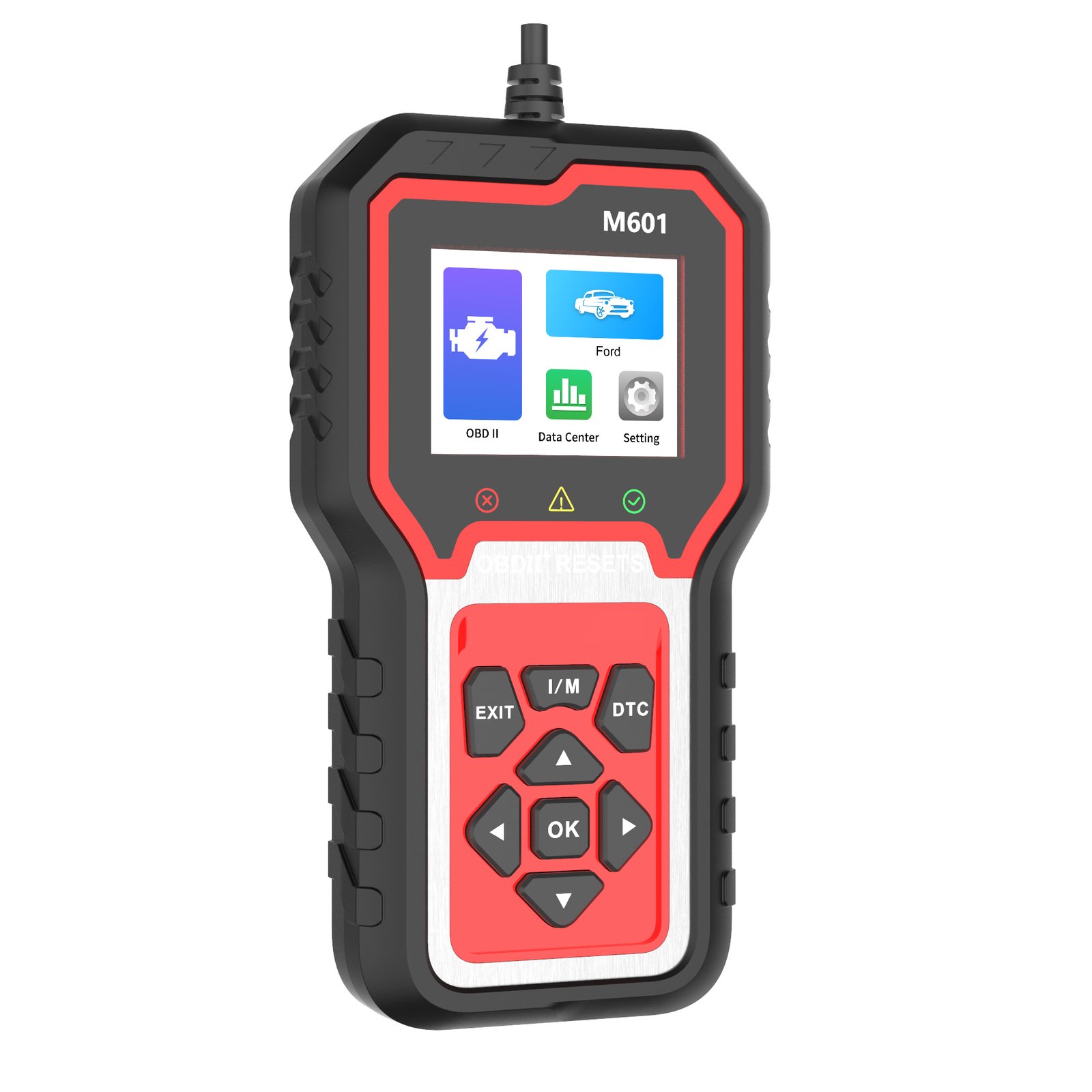

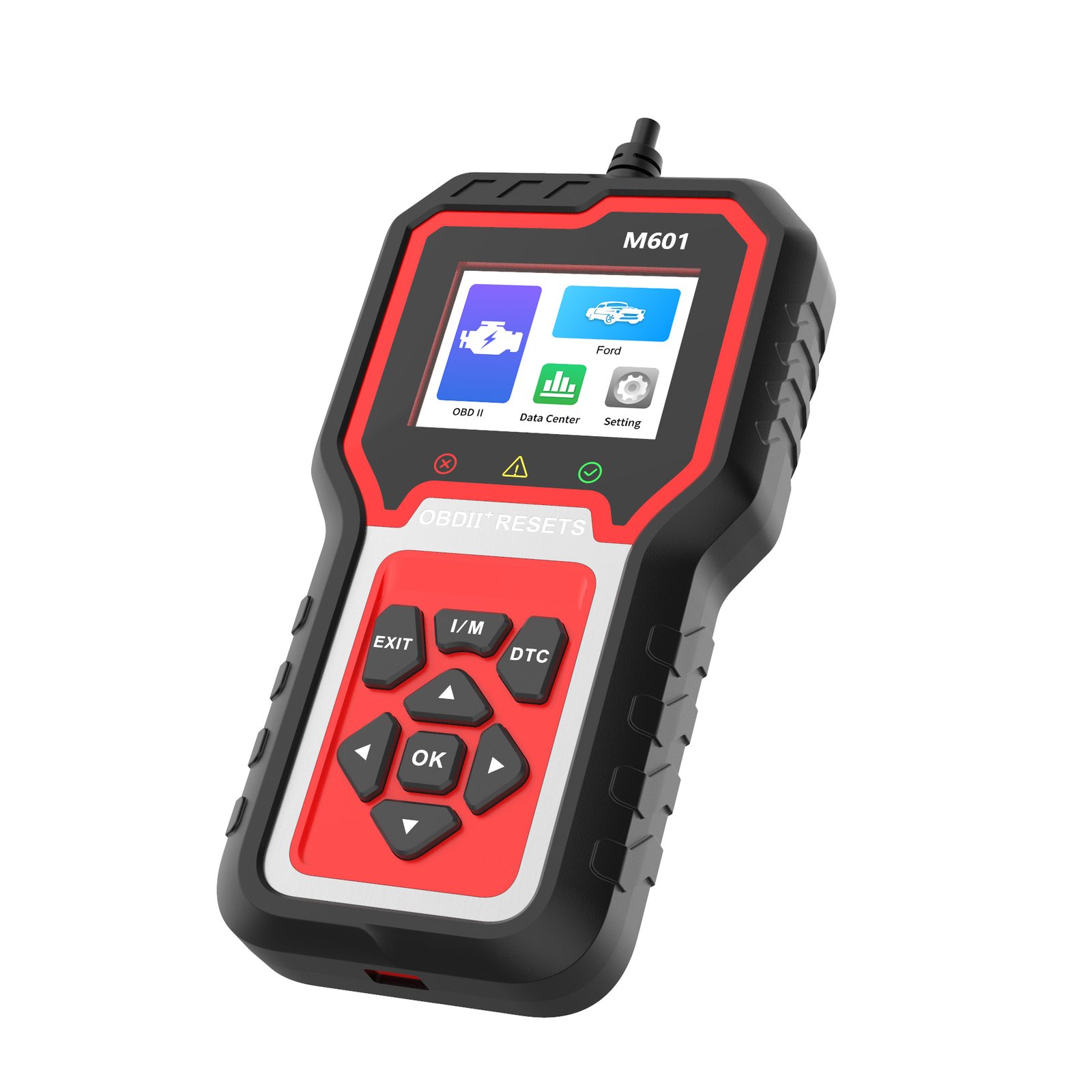

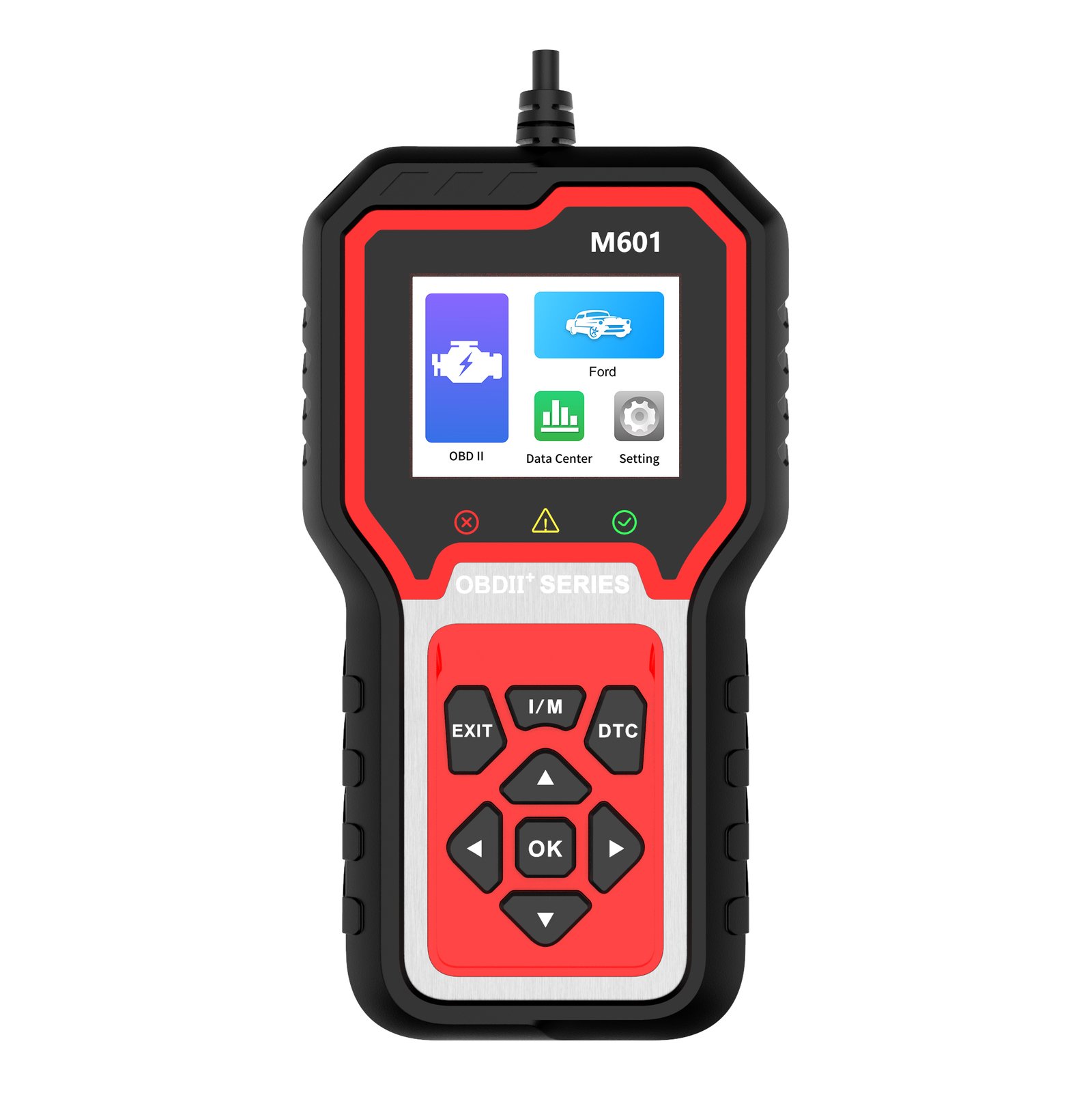

M601
Advanced handheld diagnostics with playback and service functions
M601 combines DTC read/clear, live data, and playback to help confirm intermittent faults more clearly. With voltage test, maintenance reset, and EPB support, it fits common service workflows in one compact diagnostic device.

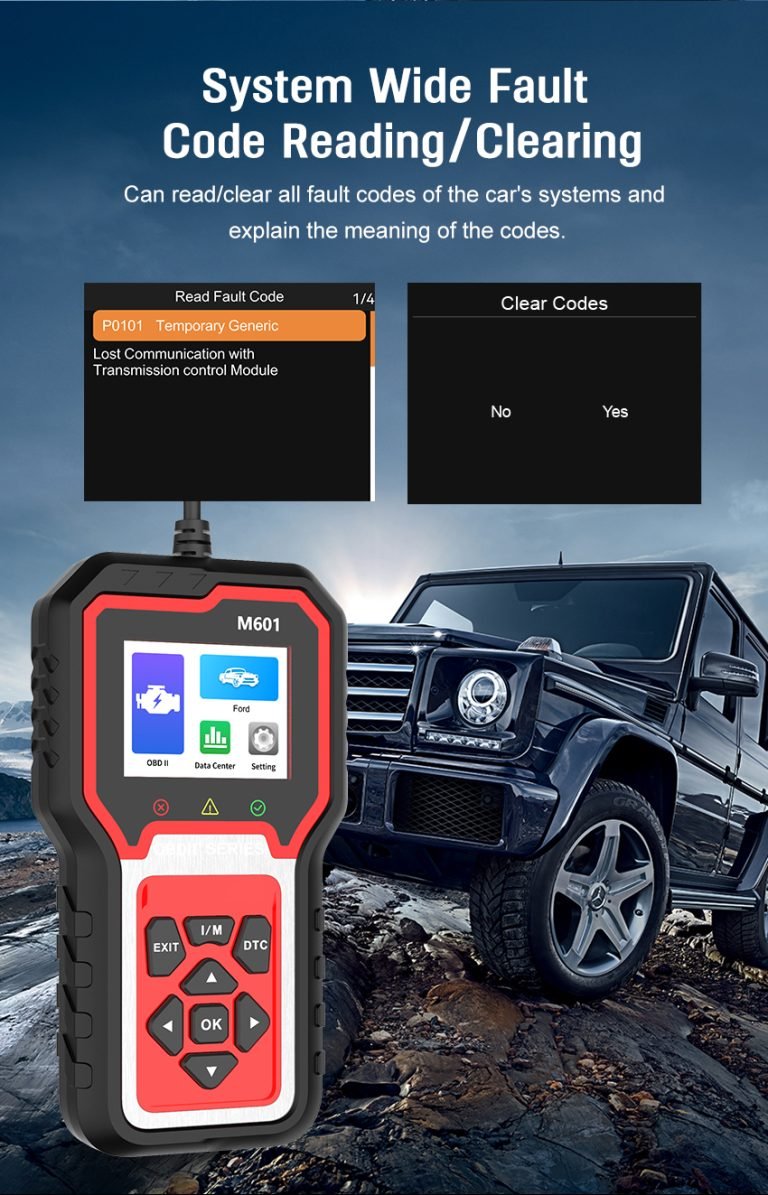

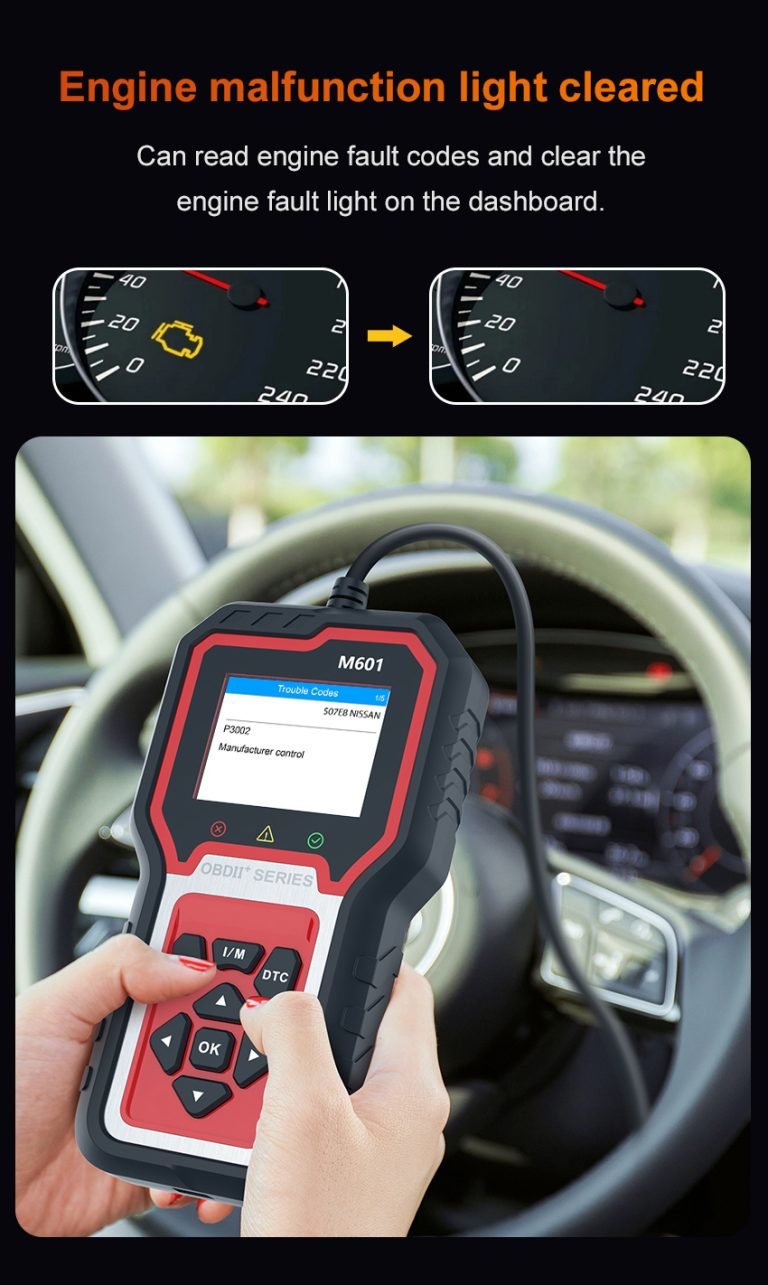

Read & Clear DTCs
Read and clear diagnostic trouble codes to confirm the cause of a check-engine event, validate a fix, and get drivers back on the road with fewer repeat checks.
Live Data + Playback
Monitor live sensor data in real time and replay recorded sessions to confirm intermittent issues and document what happened before service.
Voltage Test
Read vehicle battery voltage to quickly assess power status during diagnosis—useful for identifying low-voltage conditions that can affect diagnostics and driver experience.
Maintenance Reset & EPB
Includes special service functions for maintenance light reset and electronic parking brake (EPB) service support—useful for common maintenance workflows.
PRODUCT SPECIFICATIONS
Functions
- Read trouble codes (DTCs)
- Clear trouble codes
- Freeze frame
- I/M readiness status
- Read vehicle information
- Live data stream
- Oxygen sensor test
- On-board monitor test
- Component test
- Mode 6 test
- Mode 8 test
- DTC lookup
- Upgrade function
- Cloud printing
- Data playback
- Battery voltage test/reading
- Shortcut keys (I/M, DTC)
- Supports vendor-specific codes
- DTC library: 40,000+ entries
- Special functions: maintenance reset; EPB
- 2.8-inch color display
OBD-II Protocols
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (fast init, 10.4 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
- Private protocols (as listed in spec): CAN_500K; CAN_50K; CAN_125K; TP20; KWP
Data PIDs
- Read diagnostic trouble codes
- Clear fault codes (erase DTCs and turn off MIL)
- Engine speed (RPM)
- Calculated load value
- Coolant temperature
- Fuel system status
- Vehicle speed
- Short-term fuel trim
- Long-term fuel trim
- Intake manifold pressure
- Ignition timing advance
- Intake air temperature
- Air flow rate
- Throttle position (absolute)
- Oxygen sensor voltage related to short-term fuel trim
- Fuel pressure
- Fuel consumption monitoring, etc.
- Note: supported data items vary by vehicle model/year.
Hardware Specs
- Main control chip: CY100 (LQFP100)
- Operating voltage: DC 9–16 V
- Operating current: 45–69 mA
- Standby current: 57 mA
- Communication: serial; name: OBDII
- Software program version: V1.0
- Operating temperature: -20 to 60°C
- Storage temperature: -20 to 60°C
- Dimensions: 195 × 106 × 35 mm
- Weight: 375.8 g (tool); 576 g (with packaging)
OBD Connector
- OBD male connector (standard 16-pin OBDII interface).
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Single Wire CAN | 9 | Reserved |
| 2 | J1850+ | 10 | J1850- |
| 3 | Reserved | 11 | Reserved |
| 4 | Chassis ground | 12 | Reserved |
| 5 | Signal ground | 13 | Reserved |
| 6 | CAN High (CANH) | 14 | CAN Low (CANL) |
| 7 | K-Line | 15 | L-Line |
| 8 | Reserved | 16 | Power |
Compliance & Packaging
- Certifications: CE, FCC, RoHS, UKCA
- Supported UI languages: English, German, French, Spanish, Italian, Russian, Korean, Chinese, Japanese, Portuguese, Polish
- Package size: 201 × 269 × 43 mm
- Carton size: 55.2 × 28.5 × 42.6 cm
- Quantity per carton: 24 pcs/carton
- Storage conditions: store in a clean, ventilated, cool, and dry place; keep moisture-proof.
- Transportation & handling: ship in cartons; handle with care; avoid heavy vibration, shock, or compression; prevent contamination and package damage; protect from rain and direct sunlight; suitable for road, rail, sea, and air transport.
- Care & safety notes: do not use abrasive cleaners; do not heat or place near open flames; do not expose to direct sunlight for long periods; do not disassemble or modify (no user-serviceable parts).
DOWNLOAD
Technical Documents
Support Guides
GET YOUR ORDER
Standard Packaging
- Standard package contents: M601 main unit ×1; user manual ×1; individual retail box ×1.
- Accessories and detailed packing list can be customized for OEM/ODM and private-label orders.
MOQ & Pricing Structure
- Sample MOQ: 1–10 pcs
- Standard (bulk) MOQ: 100 pcs
- White-label / OEM MOQ: 500 pcs
- ODM MOQ: 5,000 pcs
- Note: MOQs may vary based on packaging and customization scope.
- Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
Sample & Lead Time
- Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
- White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
- ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
- Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
Customization Options (OEM/Private Label)
- Branding (White-label): logo printing (silkscreen) or label/sticker service.
- Documentation & packaging: customized user manual and retail box packaging.
- Appearance options: housing color customization (project-dependent).
- ODM (project-based): industrial design / enclosure appearance customization.
Quality, Warranty & Compliance
- Warranty: 1 year replacement.
- Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
- DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
- Quality system: ISO 9001 certified.
- Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
- Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
- Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
Shipping & Carton Info
- Shipping: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes).
- Duty-paid option (DDP, air door-to-door): available upon request. We can quote and pre-collect freight + duties/taxes where supported.
- HS Code (reference): 9031.80.9090 (may vary by destination country).
