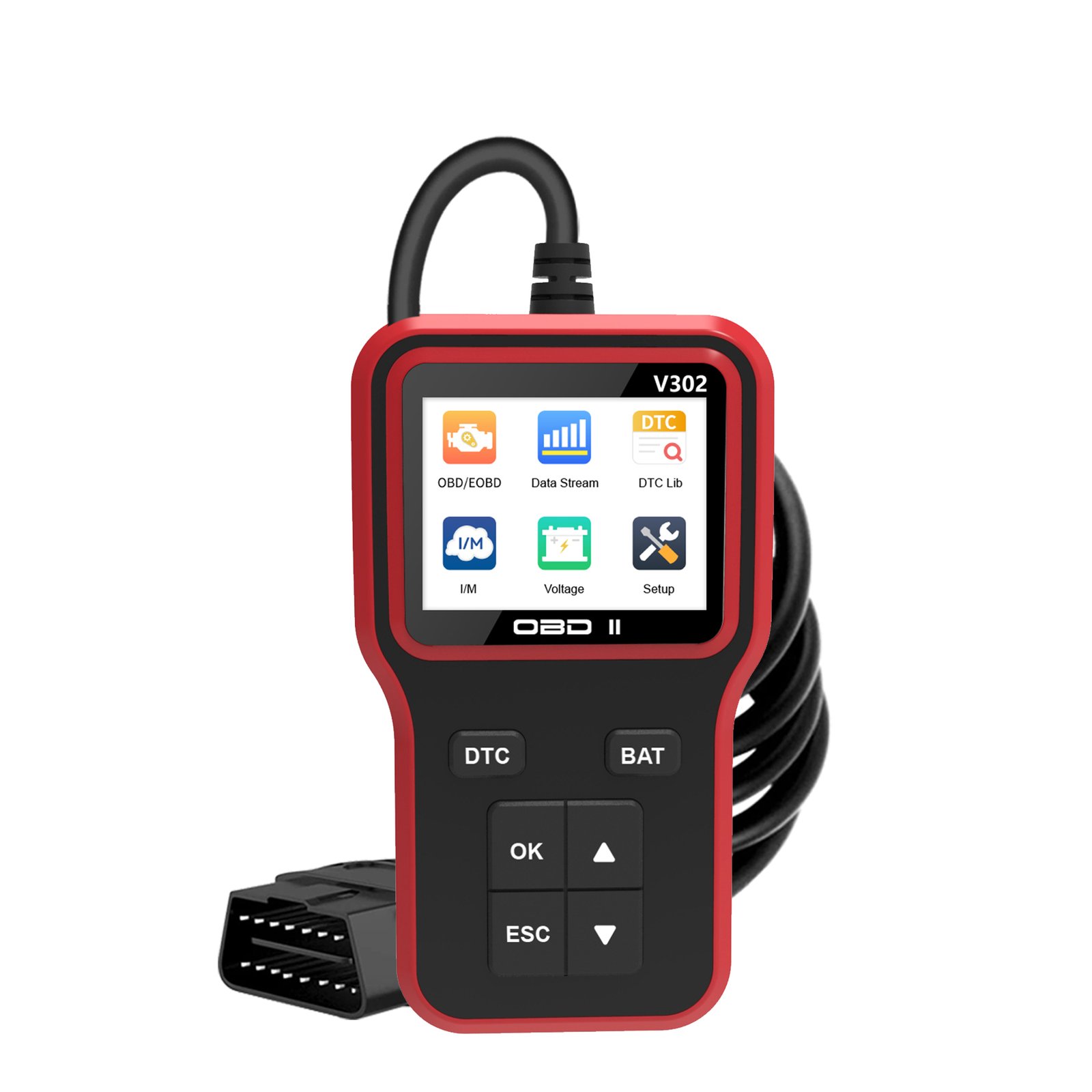

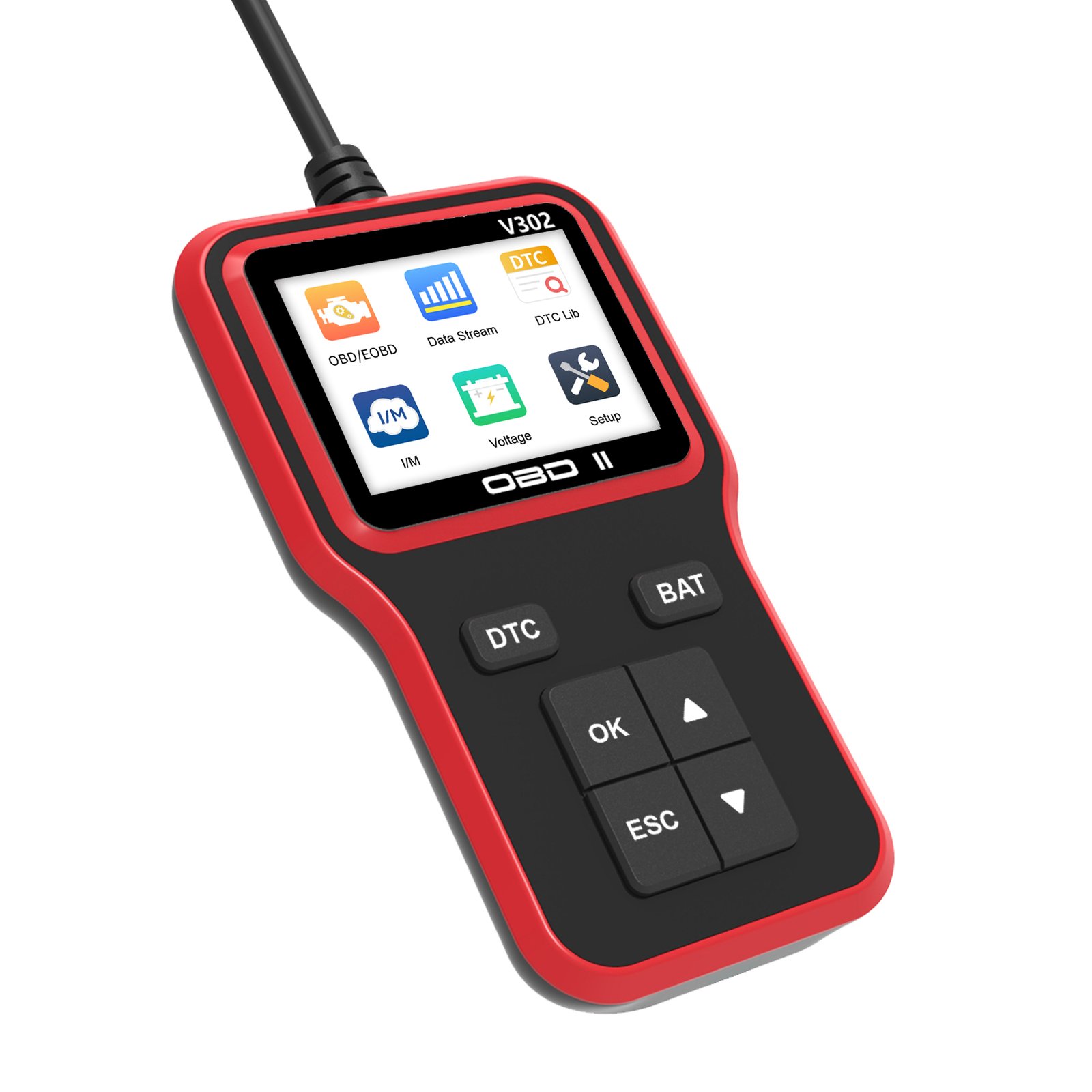

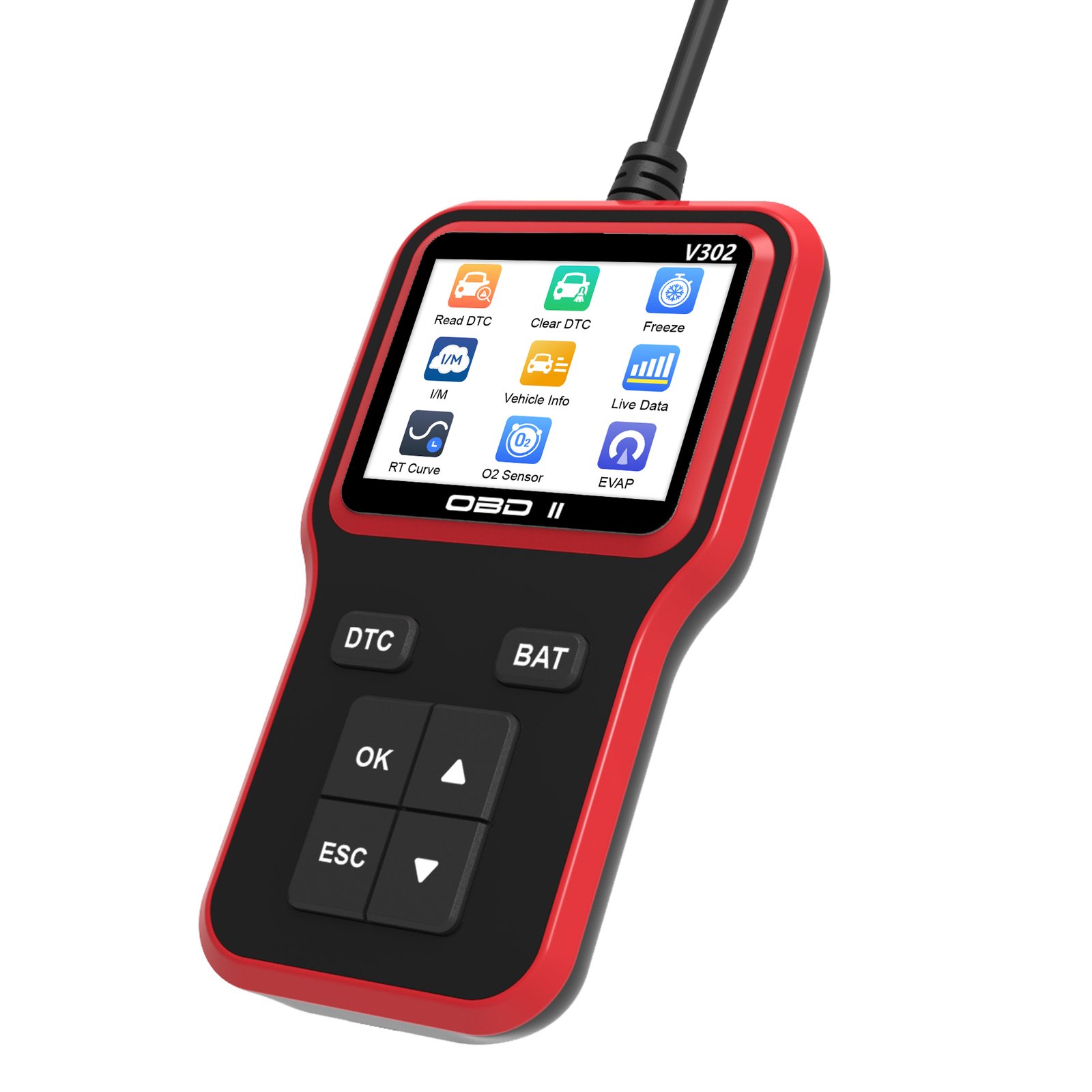

V302
Practical handheld scanner for everyday OBD-II diagnostics
V302 focuses on fast emissions-related fault diagnosis with DTC read/clear, live data, Freeze Frame, I/M Readiness, and vehicle information. Added O2, Mode 6, Mode 8, and battery voltage shortcut support make it a solid everyday handheld diagnostic tool.
OBD2 Diagnostics
Read and clear emission-related DTCs and turn off the MIL where permitted—helpful for confirming repairs and improving driver confidence after service.
Live Data & Status
Live data plus freeze frame, I/M readiness, and vehicle info in one place—adds context to diagnose faster and reduce repeat checks.
O2 / Mode 6 / EVAP (Mode 8)
Supports O2 sensor testing, Mode 6 on-board monitoring results, and Mode 8 EVAP/component tests where supported by the vehicle.
Battery Voltage Shortcut
One-key battery voltage check via shortcut—faster access when you need a quick power-status read during diagnosis.
PRODUCT SPECIFICATIONS
Functions
- Read and clear diagnostic trouble codes (DTCs)
- View live data stream
- Display I/M readiness status
- View freeze frame data
- Retrieve vehicle information (VIN/CALID/CVN where supported)
- O2 sensor test
- On-board monitor test (Mode 6)
- EVAP test / component test (Mode 8)
- DTC lookup (code definition library)
- Battery voltage test (BAT shortcut key)
- Real-time curve / trend view (RT Curve, if supported by vehicle)
- Basic data playback (per spec)
OBD-II Protocols
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (fast init, 10.4 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
Data PIDs
- Read diagnostic trouble codes
- Clear fault codes (erase DTCs and turn off MIL)
- Engine speed (RPM)
- Calculated load value
- Coolant temperature
- Fuel system status
- Vehicle speed
- Short-term fuel trim
- Long-term fuel trim
- Intake manifold pressure
- Ignition timing advance
- Intake air temperature
- Air flow rate
- Throttle position (absolute)
- Oxygen sensor voltage related to short-term fuel trim
- Fuel pressure
- Fuel consumption monitoring, etc.
- Note: supported data items vary by vehicle model/year.
Hardware Specs
- Display: 2.8-inch TFT color LCD (240 × 320)
- Power supply: DC 9–16 V (via vehicle battery)
- Operating current: 32–49 mA
- Standby current: 39 mA
- Operating temperature: -20 to 60°C
- Storage temperature: -20 to 60°C
- Dimensions: 152 × 87.5 × 22 mm
- Weight: 208.6 g (device); 278.6 g (with color box)
- UI languages: English, German, French, Spanish, Italian, Dutch, Chinese, Russian
OBD Connector
- OBD male connector (standard 16-pin OBDII interface).
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Single Wire CAN | 9 | Reserved |
| 2 | J1850+ | 10 | J1850- |
| 3 | Reserved | 11 | Reserved |
| 4 | Chassis ground | 12 | Reserved |
| 5 | Signal ground | 13 | Reserved |
| 6 | CAN High (CANH) | 14 | CAN Low (CANL) |
| 7 | K-Line | 15 | L-Line |
| 8 | Reserved | 16 | Power |
Compliance & Packaging
- Certifications: CE, FCC, RoHS, UKCA
- Supported UI languages: English, German, French, Spanish, Italian, Dutch, Chinese, Russian
- Retail box size: 200 × 130 × 43 mm
- Outer carton size: 54 × 42 × 23.5 cm
- Quantity per carton: 40 pcs/carton
- Storage conditions: store in a clean, ventilated, cool, and dry place; keep moisture-proof.
- Transportation & handling: ship in cartons; handle with care; avoid heavy vibration, shock, or compression; prevent contamination and package damage; protect from rain and direct sunlight; suitable for road, rail, sea, and air transport.
- Care & safety notes: do not use abrasive cleaners; do not heat or place near open flames; do not expose to direct sunlight for long periods; do not disassemble or modify (no user-serviceable parts).
DOWNLOAD
Technical Documents
Support Guides
GET YOUR ORDER
Standard Packaging
- Standard package contents: V302 handheld scanner main unit ×1; user manual ×1; individual retail box ×1.
- Accessories and detailed packing list can be customized for OEM/ODM and private-label orders.
MOQ & Pricing Structure
- Sample MOQ: 1–10 pcs
- Standard (bulk) MOQ: 100 pcs
- White-label / OEM MOQ: 500 pcs
- ODM MOQ: 5,000 pcs
- Note: MOQs may vary based on packaging and customization scope.
- Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
Sample & Lead Time
- Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
- White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
- ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
- Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
Customization Options (OEM/Private Label)
- Branding (White-label): logo printing (silkscreen) or label/sticker service.
- Documentation & packaging: customized user manual and retail box packaging.
- Appearance options: housing color customization (project-dependent).
- ODM (project-based): industrial design / enclosure appearance customization.
Quality, Warranty & Compliance
- Warranty: 1 year replacement.
- Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
- DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
- Quality system: ISO 9001 certified.
- Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
- Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
- Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
Shipping & Carton Info
- Shipping: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes).
- Duty-paid option (DDP, air door-to-door): available upon request. We can quote and pre-collect freight + duties/taxes where supported.
- HS Code (reference): 9031.80.9090 (may vary by destination country).
