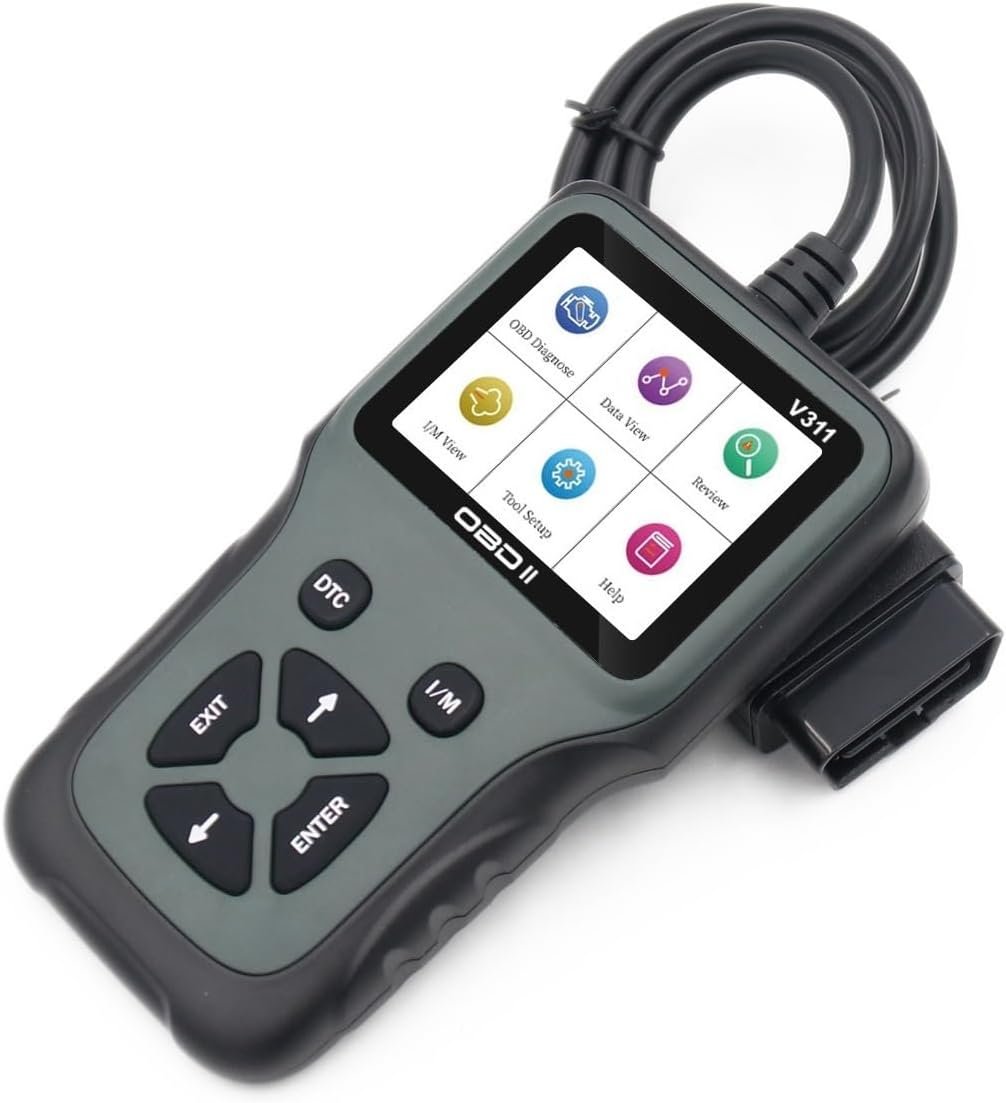

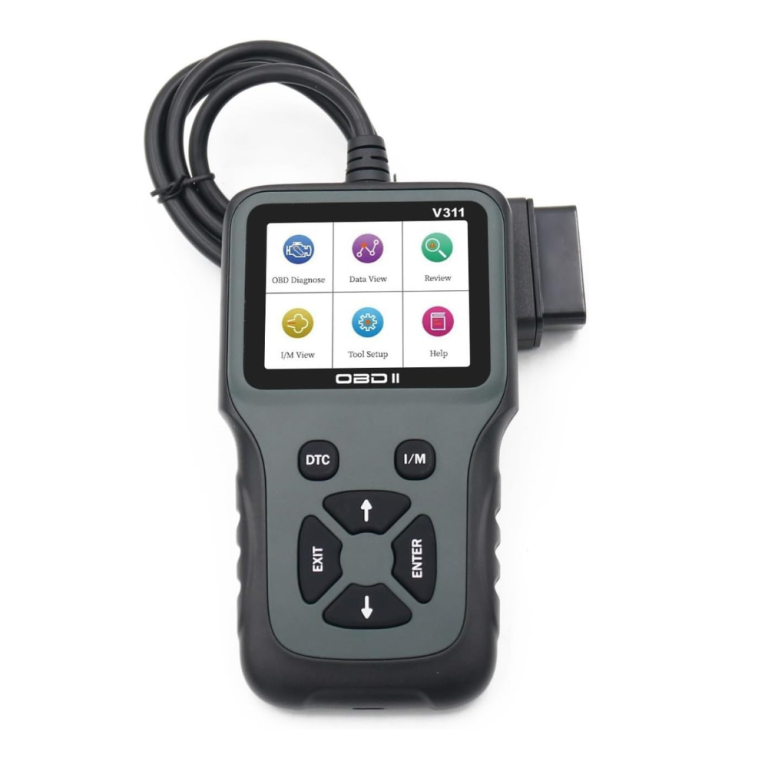

V311
Broad-compatibility OBD-II/EOBD scanner with waveform playback
V311 supports 9 standard OBD-II/EOBD protocols for wider vehicle coverage, while combining diagnostics, live data, waveform display, and storage/playback. Its wide voltage protection design adds stability across different vehicle electrical environments.
OBD-II/EOBD Protocol Support
Supports 9 standard OBD-II/EOBD protocols—helps ensure broad vehicle compatibility for stable diagnostics coverage across mixed driver fleets.

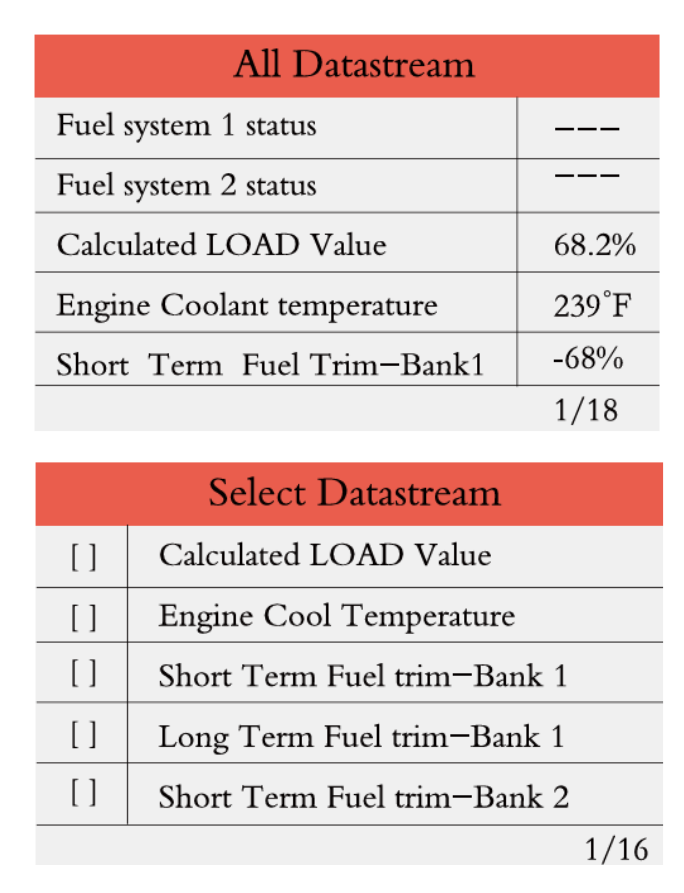

Diagnostics & Live Data
Combine core diagnostics with real-time data stream viewing to validate issues live and improve driver support outcomes.
Waveform + Storage/Playback
Display live data in waveform form and store sessions for playback—useful for spotting patterns and reviewing intermittent issues after the drive.
Comprehensive Diagnostic Data Access
Provides access to essential OBD diagnostic functions together with a wide range of live vehicle parameters, including RPM, load value, coolant temperature, fuel system status, fuel trim, speed, manifold pressure, intake air temperature, ignition timing, air flow, and throttle position.
PRODUCT SPECIFICATIONS
Functions
- Supports OBD II / EOBD 9 standard protocols
- Supports vehicle diagnostics and real-time data stream (OBD functions)
- Data waveform display; data storage and playback
- Emission inspection data (per spec)
- Color LCD display (high resolution) (per spec)
- Wide supply voltage range with overcurrent/overvoltage protection (per spec)

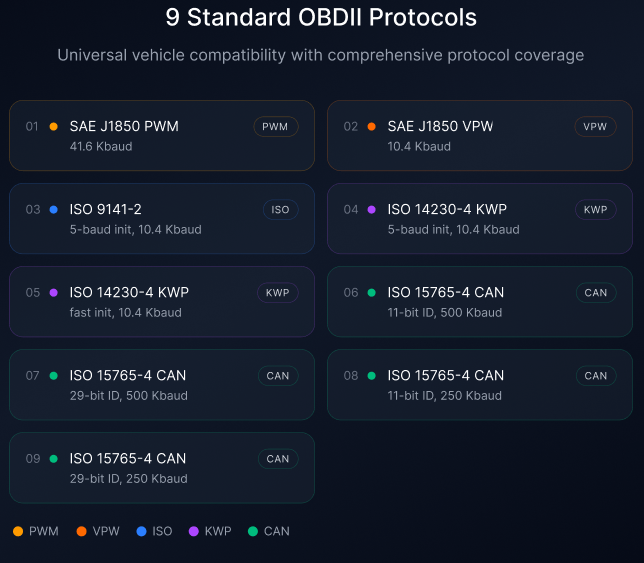

OBD-II Protocols
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (fast init, 10.4 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 2500 Kbaud) [as written in spec]
- ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
Data PIDs

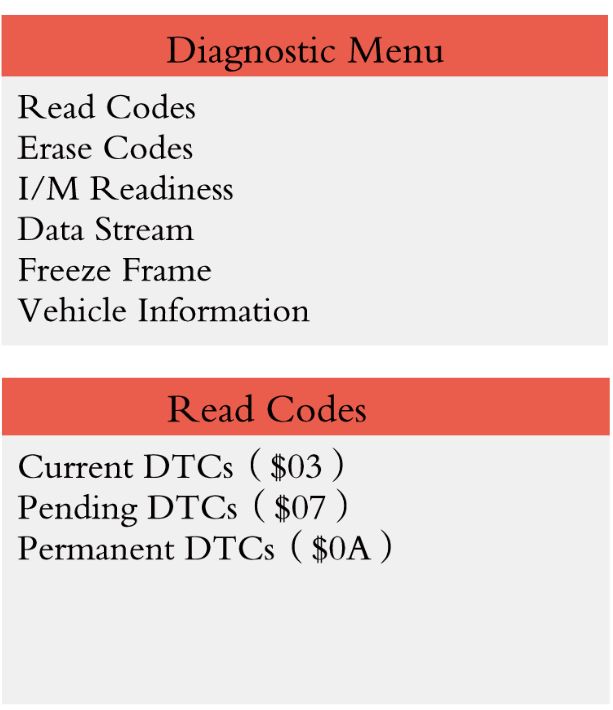

- Read diagnostic trouble codes
- Clear fault codes (erase DTCs and turn off MIL)
- Engine speed (RPM)
- Calculated load value
- Coolant temperature
- Fuel system status
- Vehicle speed
- Short-term fuel trim
- Long-term fuel trim
- Intake manifold pressure
- Ignition timing advance
- Intake air temperature
- Air flow rate
- Throttle position (absolute)
- Oxygen sensor voltage related to short-term fuel trim
- Fuel pressure
- Fuel consumption monitoring, etc.
- Note: supported data items vary by vehicle model/year.
Hardware Specs
- Main control chip: STM32F103VET6
- Operating voltage: DC 8–36 V
- Operating current: 58 mA
- Operating environment: -20 to 65°C
- Storage temperature: -30 to 80°C
- Dimensions: 156 × 88 × 24 mm
- Product weight: 198 g
OBD Connector

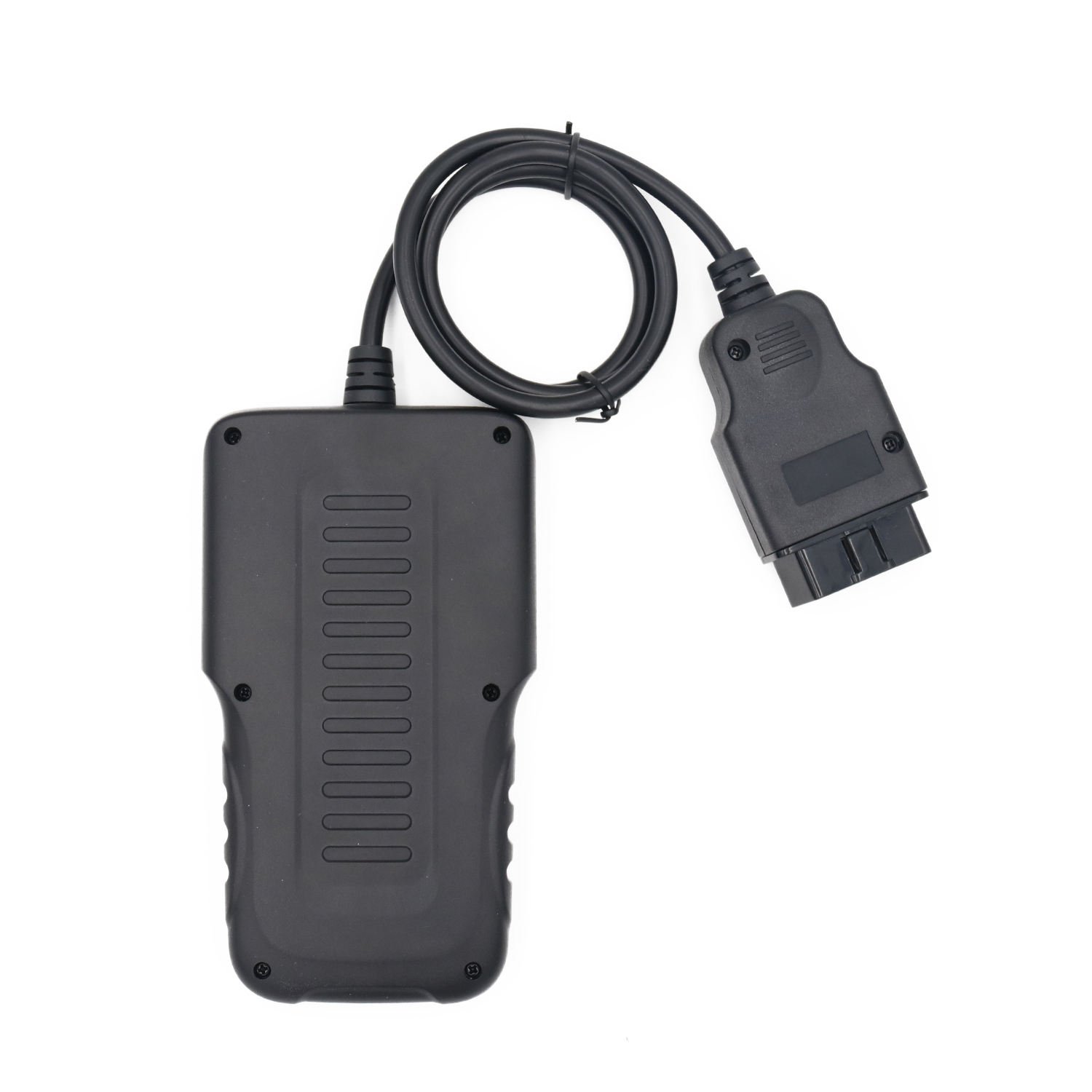

- OBD male connector (standard 16-pin OBDII interface).
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Single Wire CAN | 9 | Reserved |
| 2 | J1850+ | 10 | J1850- |
| 3 | Reserved | 11 | Reserved |
| 4 | Chassis ground | 12 | Reserved |
| 5 | Signal ground | 13 | Reserved |
| 6 | CAN High (CANH) | 14 | CAN Low (CANL) |
| 7 | K-Line | 15 | L-Line |
| 8 | Reserved | 16 | Power |
Compliance & Packaging
- Certifications: CE, FCC, RoHS, UKCA
- Gross weight (per unit, with packaging): 315 g
- Net weight (per unit): 198 g
- Product dimensions: 156 × 88 × 24 mm
- Individual package dimensions: 200 × 130 × 43 mm
- Master carton dimensions: 54 × 42 × 23.5 cm
- Quantity per master carton: 40 pcs/carton
- Storage conditions: store in a clean, ventilated, cool, and dry place; keep moisture-proof.
- Transportation & handling: ship in cartons; handle with care; avoid heavy vibration, shock, or compression; prevent contamination and package damage; protect from rain and direct sunlight; suitable for road, rail, sea, and air transport.
- Care & safety notes: do not use abrasive cleaners; do not heat or place near open flames; do not expose to direct sunlight for long periods; do not disassemble or modify (no user-serviceable parts).
DOWNLOAD
Technical Documents
Support Guides
GET YOUR ORDER
Standard Packaging

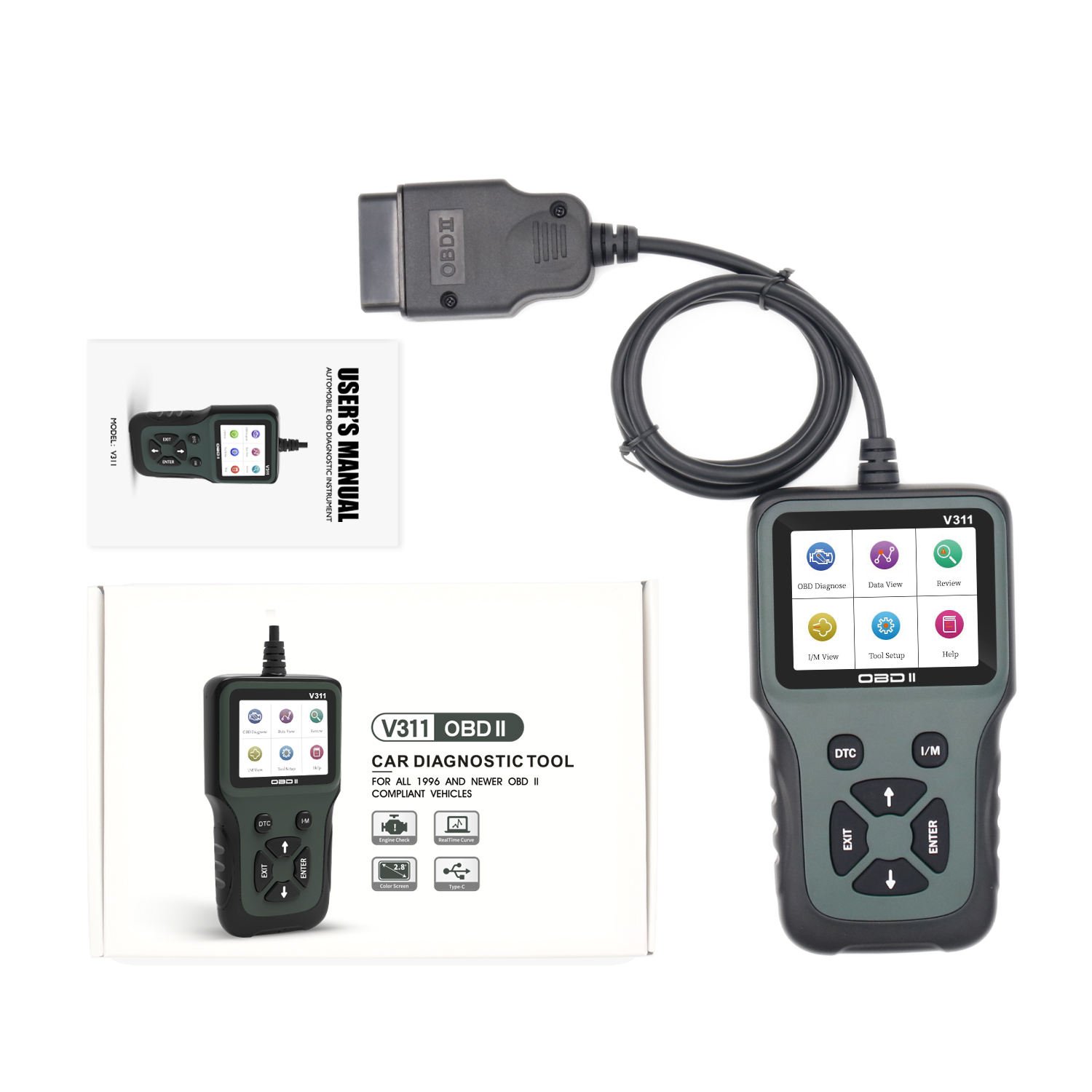

- Standard package contents: V311 main unit ×1; OBD-II diagnostic cable ×1; user manual ×1; individual retail box ×1.
- Accessories and detailed packing list can be customized for OEM/ODM and private-label orders.
MOQ & Pricing Structure
- Sample MOQ: 1–10 pcs
- Standard (bulk) MOQ: 100 pcs
- White-label / OEM MOQ: 500 pcs
- ODM MOQ: 5,000 pcs
- Note: MOQs may vary based on packaging and customization scope.
- Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
Sample & Lead Time
- Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
- White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
- ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
- Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
Customization Options (OEM/Private Label)
- Branding (White-label): logo printing (silkscreen) or label/sticker service.
- Documentation & packaging: customized user manual and retail box packaging.
- Appearance options: housing color customization (project-dependent).
- ODM (project-based): industrial design / enclosure appearance customization.
Quality, Warranty & Compliance
- Warranty: 1 year replacement.
- Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
- DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
- Quality system: ISO 9001 certified.
- Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
- Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
- Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
Shipping & Carton Info
- Shipping: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes).
- Duty-paid option (DDP, air door-to-door): available upon request. We can quote and pre-collect freight + duties/taxes where supported.
- HS Code (reference): 9031.80.9090 (may vary by destination country).
