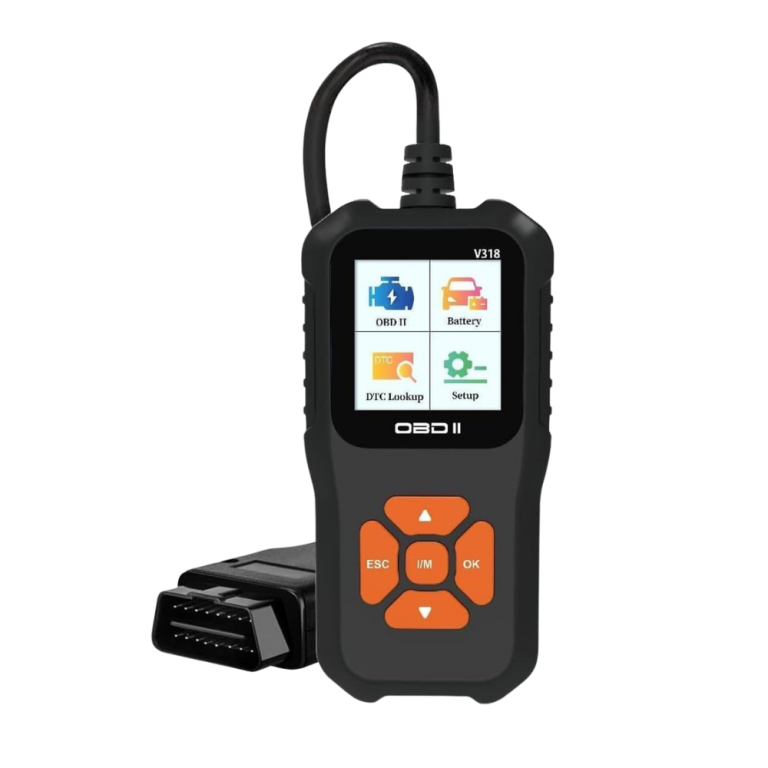

V318
Compact color-screen scanner with playback and battery voltage test
V318 supports DTC read/clear, live data, Freeze Frame, and I/M Readiness, then adds storage/playback for reviewing captured sessions later. Battery voltage detection and O2/EVAP test support make it a compact but more feature-rich handheld option.
OBD Diagnostics
Read and clear DTCs (generic, pending, and manufacturer-specific) plus readiness and freeze-frame context—helps drivers and support teams understand what happened and what to do next.

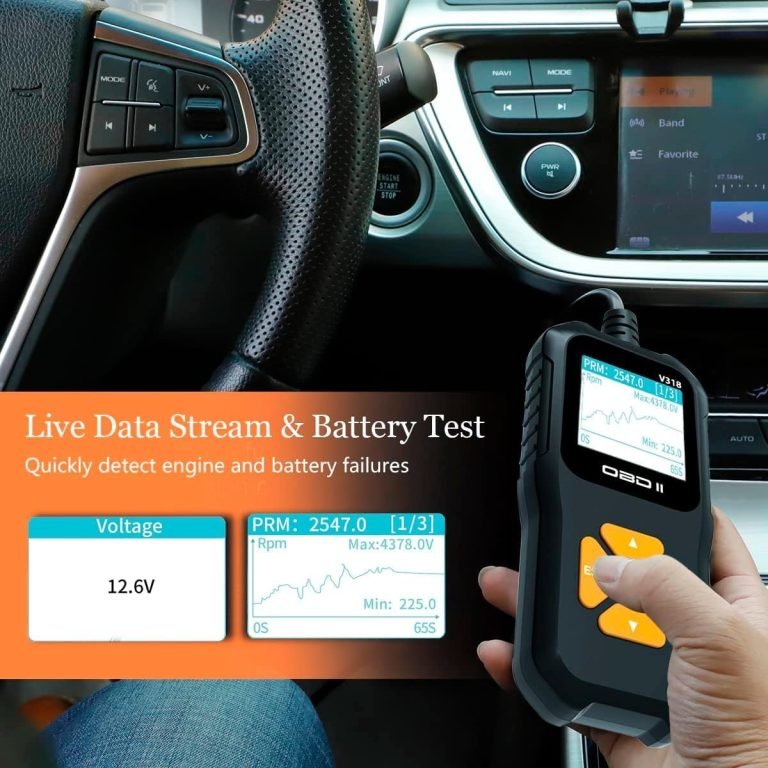

Live Data + Playback
Real-time data stream plus storage and playback to review events over time and better pinpoint hard-to-reproduce issues.
Battery Voltage Test
Real-time battery voltage detection and display to help verify electrical power conditions during diagnosis.

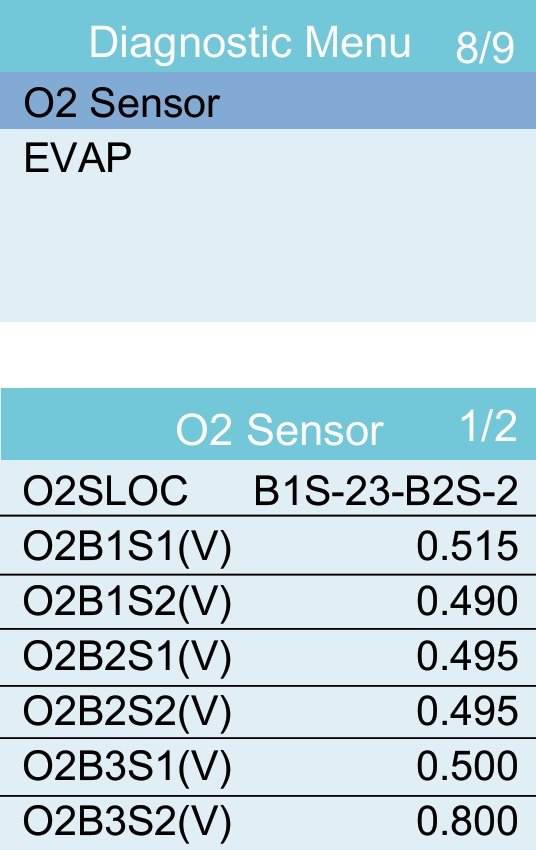

O2 & EVAP Tests
Supports oxygen sensor and EVAP tests where available to help evaluate emissions-related systems.
PRODUCT SPECIFICATIONS

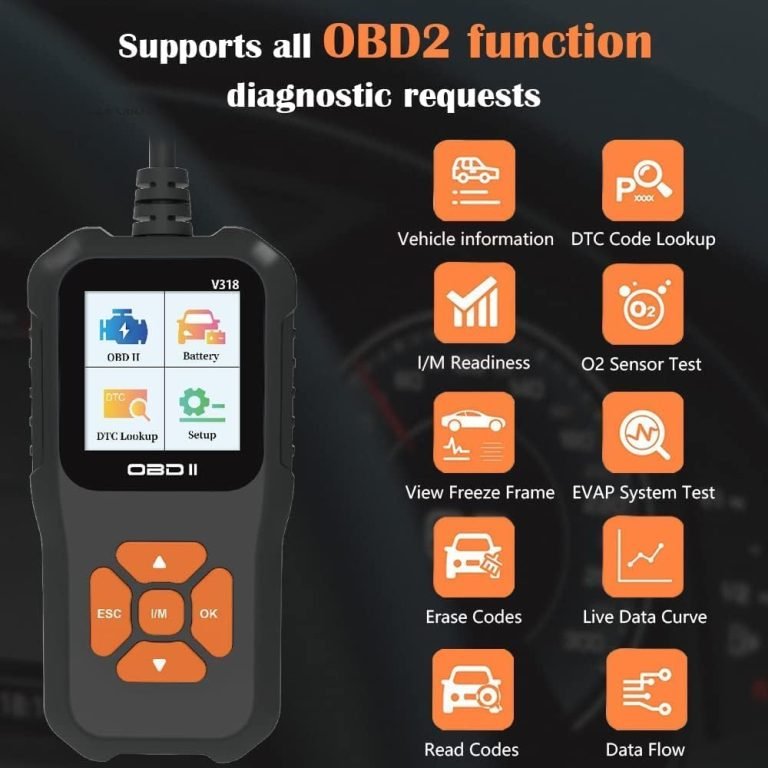

Functions
- Read and clear DTCs: generic codes, pending codes, manufacturer-specific codes
- Read live data stream
- Display I/M readiness status
- View freeze frame information
- Retrieve vehicle information (VIN, CIN and CVN)
- Built-in OBD-II DTC lookup library
- Data storage and playback
- Battery voltage detection (real-time display)
- Oxygen sensor test (related data)
- EVAP test function (EVAP data)
- Multi-language UI (10 languages listed in spec)
OBD-II Protocols
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (fast init, 10.4 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
Data PIDs
- Read diagnostic trouble codes

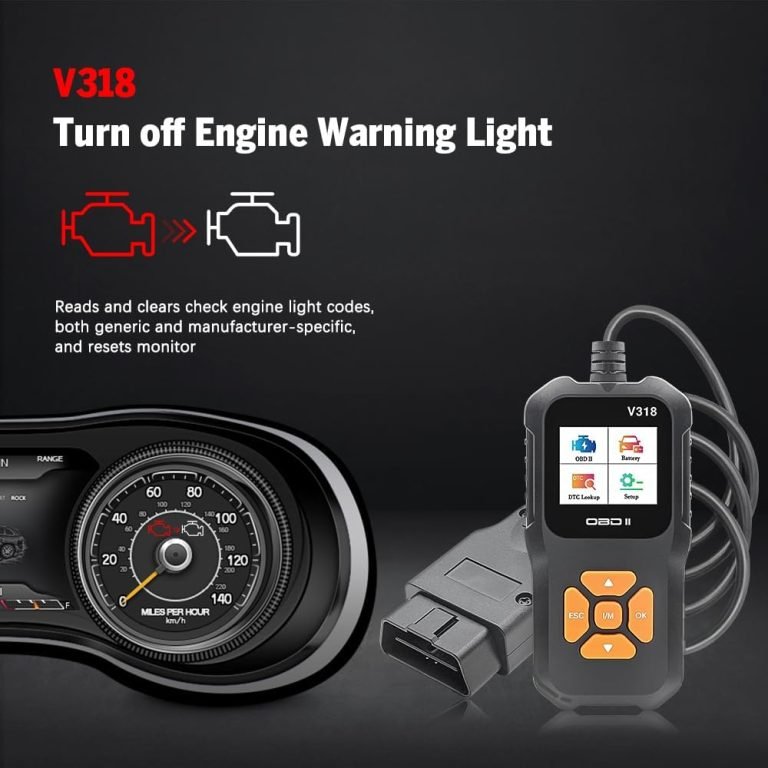

- Clear fault codes (erase DTCs and turn off MIL)
- Engine speed (RPM)
- Calculated load value
- Coolant temperature
- Fuel system status
- Vehicle speed
- Short-term fuel trim
- Long-term fuel trim
- Intake manifold pressure
- Ignition timing advance
- Intake air temperature
- Air flow rate
- Throttle position (absolute)
- Oxygen sensor voltage related to short-term fuel trim
- Fuel pressure
- Fuel consumption monitoring, etc.
- Note: supported data items vary by vehicle model/year.
Hardware Specs
- Model: V318 (hardware version V1.1; software version V318_MCU_V00.01)
- Dimensions: 130 × 70 × 25 mm
- Operating environment: -30 to 70°C
- Storage temperature: -30 to 70°C
- Operating voltage: DC 9–16 V
- Operating current: 55–69 mA
- Standby current: 57 mA
- Main control chip: BAT32G137GH48FA (LQFP48)
- Communication: CAN bus
- Display: 1.8-inch TFT color screen (resolution 128 × 160)
- Product weight: 200 g (no battery)
- UI languages: English, German, French, Spanish, Italian, Russian, Dutch, Chinese, Japanese, Korean

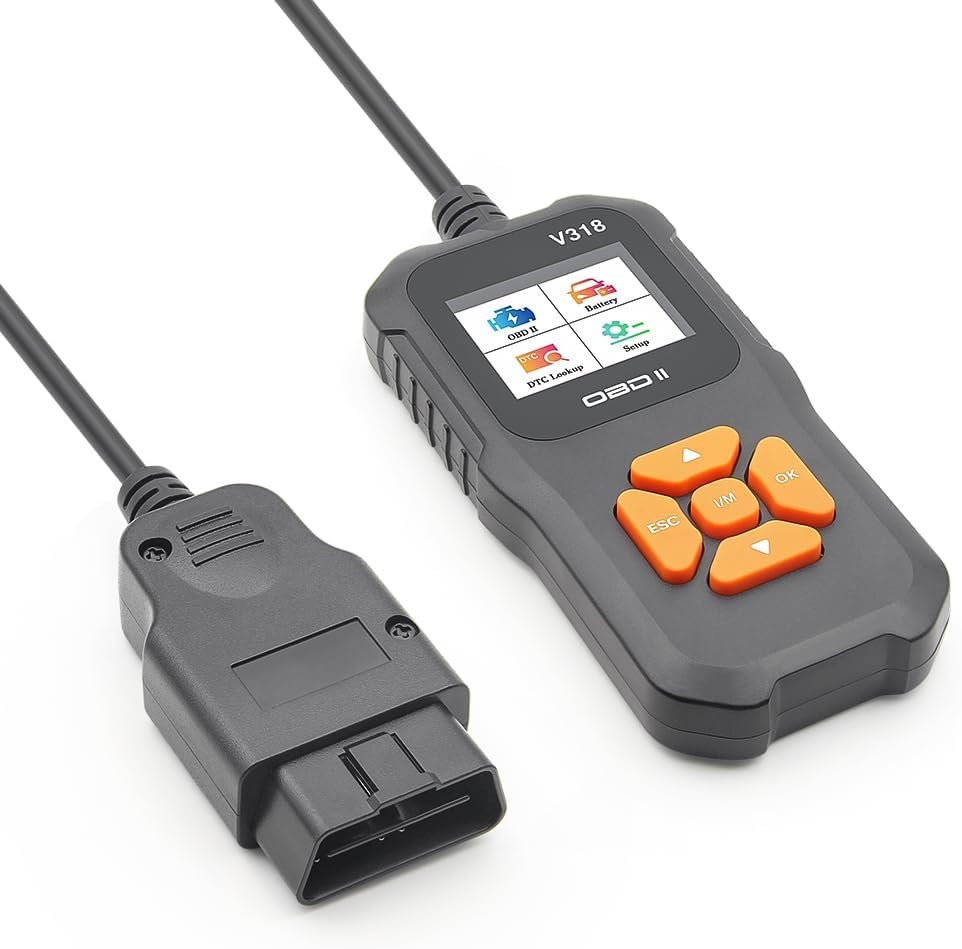

OBD Connector
- OBD male connector (standard 16-pin OBDII interface).
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Single Wire CAN | 9 | Reserved |
| 2 | J1850+ | 10 | J1850- |
| 3 | Reserved | 11 | Reserved |
| 4 | Chassis ground | 12 | Reserved |
| 5 | Signal ground | 13 | Reserved |
| 6 | CAN High (CANH) | 14 | CAN Low (CANL) |
| 7 | K-Line | 15 | L-Line |
| 8 | Reserved | 16 | Power |
Compliance & Packaging
- Certifications: CE, FCC, RoHS, UKCA
- Product dimensions: 130 × 70 × 25 mm
- Package size: 160 × 70 × 60 mm
- Product weight: 144 g
- Gross weight (with color box): 198 g
- Outer carton size: 54 × 42 × 23.5 cm
- Quantity per carton: 72 pcs/carton
- Package contents: V318 main unit (with OBD cable) ×1; user manual ×1
- Storage conditions: store in a clean, ventilated, cool, and dry place; keep moisture-proof.
- Transportation & handling: ship in cartons; handle with care; avoid heavy vibration, shock, or compression; prevent contamination and package damage; protect from rain and direct sunlight; suitable for road, rail, sea, and air transport.
- Care & safety notes: do not use abrasive cleaners; do not heat or place near open flames; do not expose to direct sunlight for long periods; do not disassemble or modify (no user-serviceable parts).
DOWNLOAD
Technical Documents
Support Guides
GET YOUR ORDER
Standard Packaging
- Standard package contents: V318 main unit with integrated OBD-II cable ×1; user manual ×1; individual retail box ×1.
- Accessories and detailed packing list can be customized for OEM/ODM and private-label orders.
MOQ & Pricing Structure
- Sample MOQ: 1–10 pcs
- Standard (bulk) MOQ: 100 pcs
- White-label / OEM MOQ: 500 pcs
- ODM MOQ: 5,000 pcs
- Note: MOQs may vary based on packaging and customization scope.
- Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
Sample & Lead Time
- Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
- White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
- ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
- Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
Customization Options (OEM/Private Label)
- Branding (White-label): logo printing (silkscreen) or label/sticker service.
- Documentation & packaging: customized user manual and retail box packaging.
- Appearance options: housing color customization (project-dependent).
- ODM (project-based): industrial design / enclosure appearance customization.
Quality, Warranty & Compliance
- Warranty: 1 year replacement.
- Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
- DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
- Quality system: ISO 9001 certified.
- Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
- Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
- Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
Shipping & Carton Info
- Shipping: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes).
- Duty-paid option (DDP, air door-to-door): available upon request. We can quote and pre-collect freight + duties/taxes where supported.
- HS Code (reference): 9031.80.9090 (may vary by destination country).
