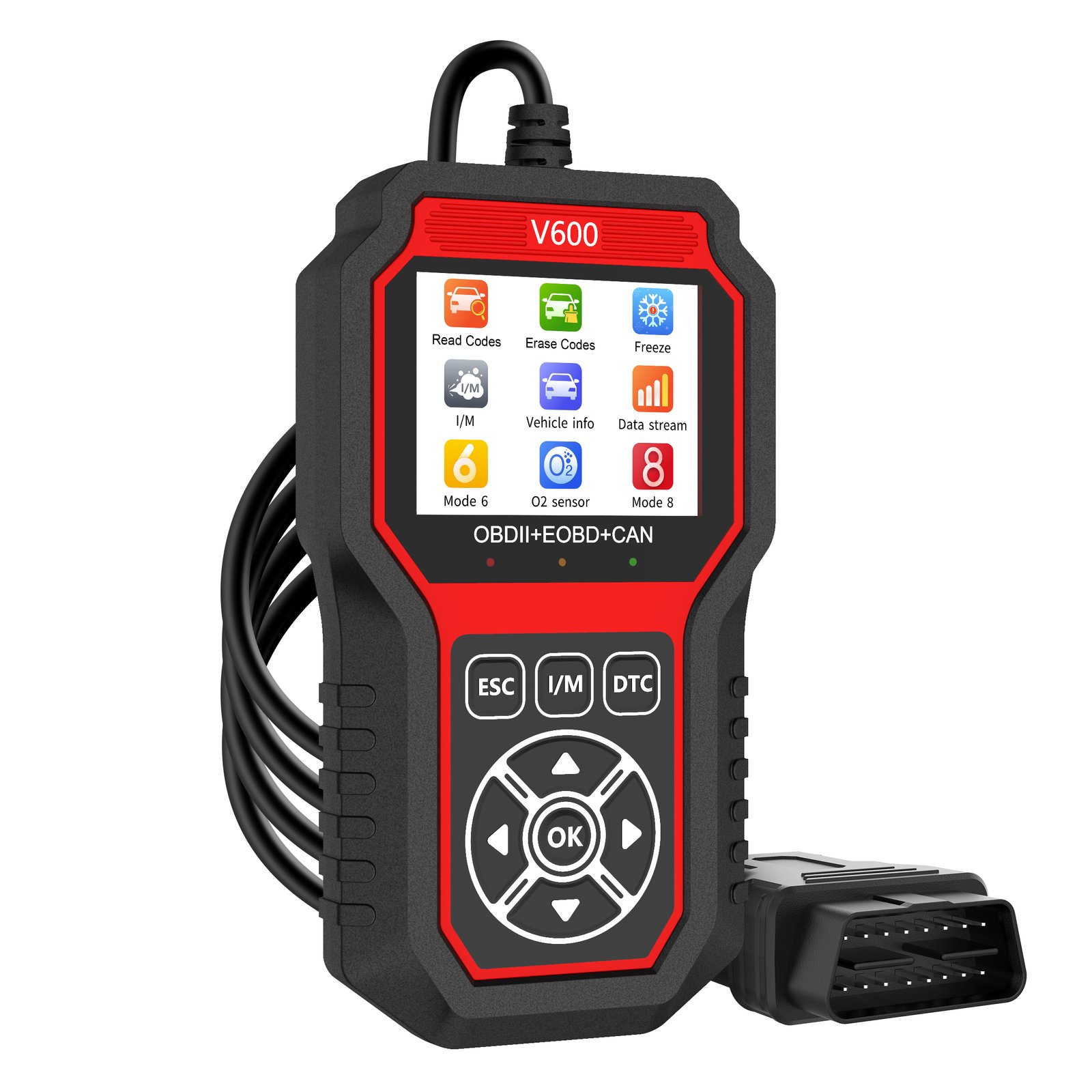

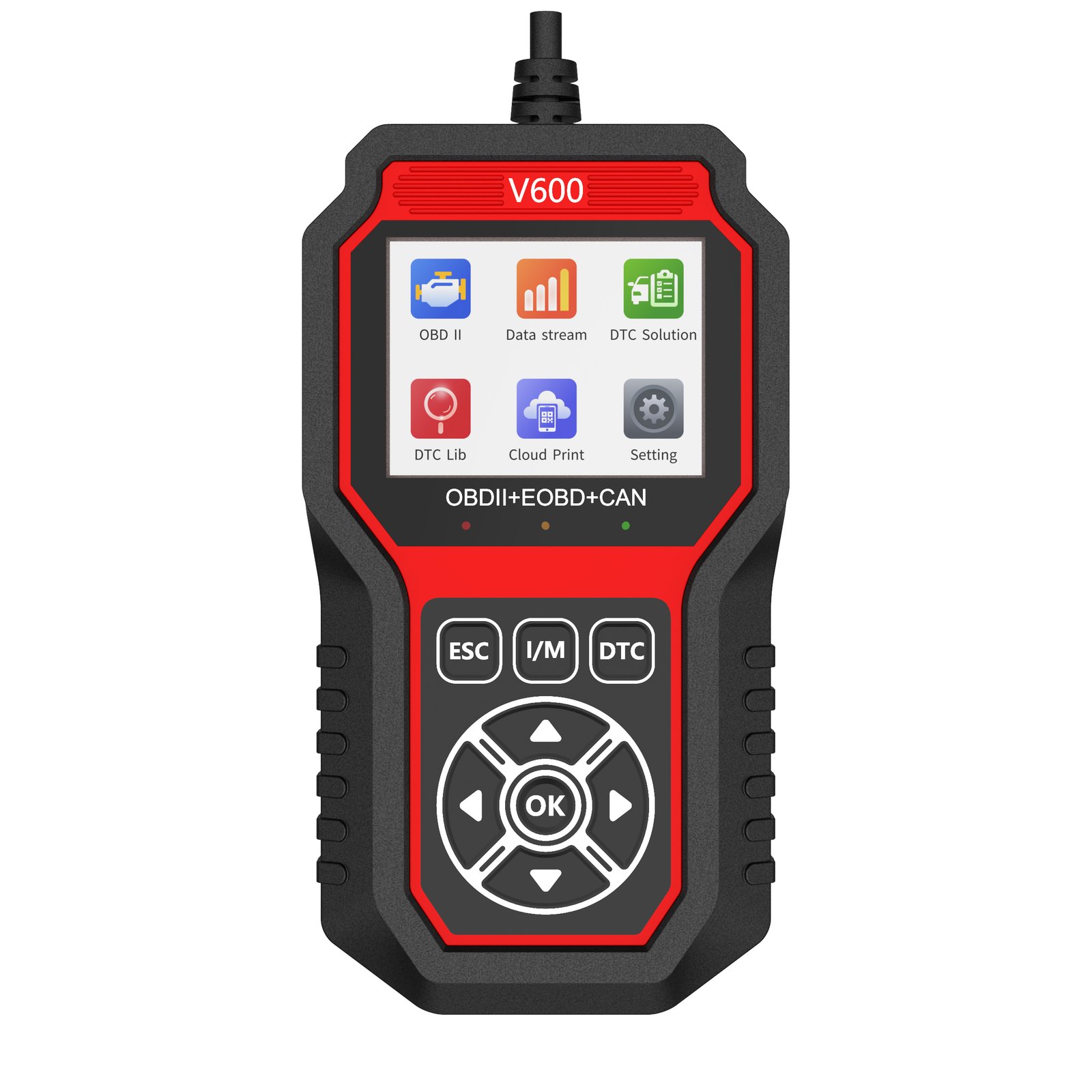

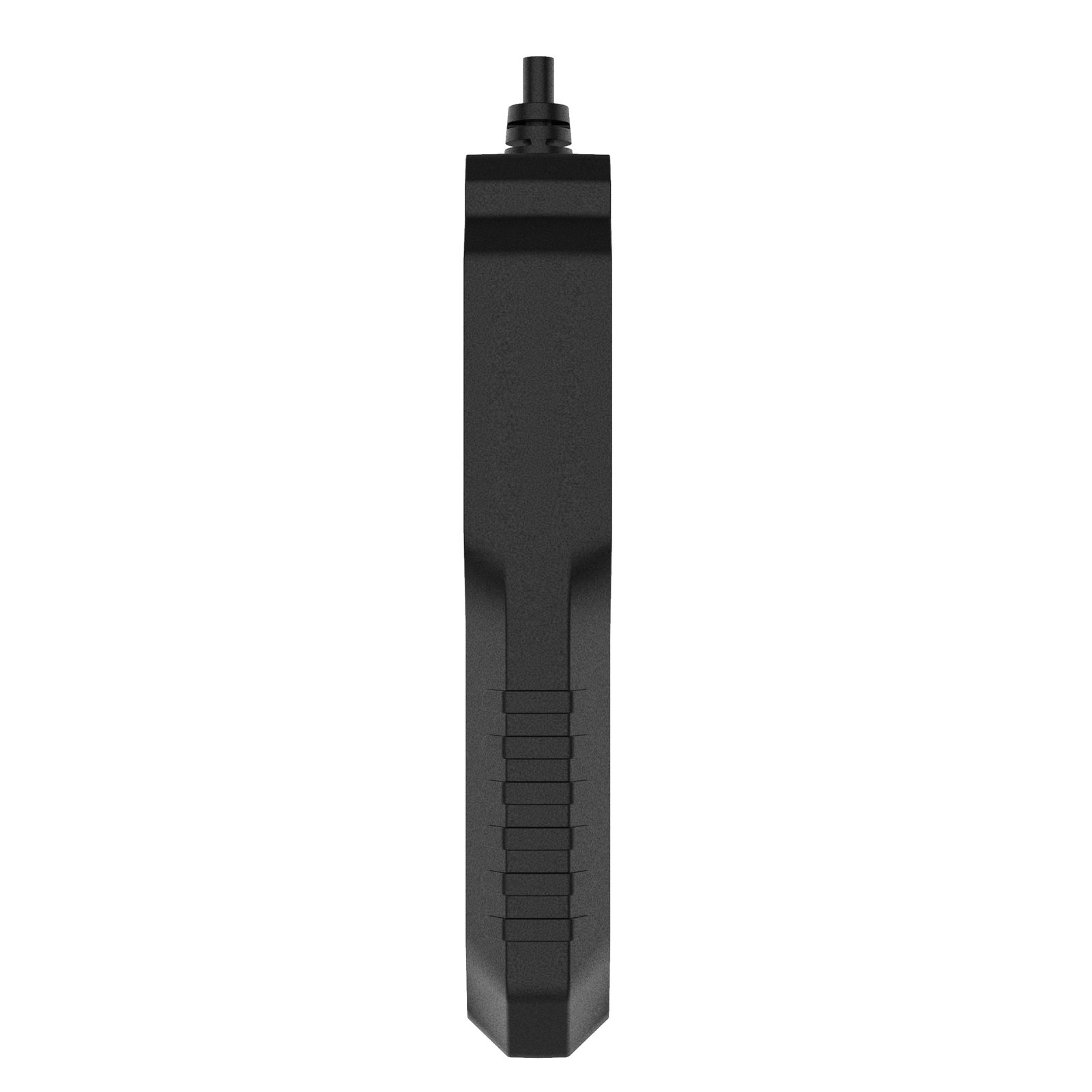

V600
Practical code reader for quick issue confirmation and readiness checks
V600 helps drivers quickly read and clear DTCs, then use Freeze Frame and I/M Readiness to understand what happened and whether the vehicle is ready for inspection. Its positioning fits routine fault confirmation and basic post-repair verification.
Read DTCs
Read diagnostic trouble codes for quick visibility into vehicle issues—helps drivers decide whether it’s safe to continue driving or seek service.
Clear DTCs
Clear diagnostic trouble codes to confirm resolution after service—helps drivers avoid lingering fault states and repeat alerts.
Freeze Frame
Freeze Frame provides a stored snapshot tied to a fault event, helping drivers and support teams understand what triggered it.
I/M Readiness
I/M Readiness provides emissions monitor status to help verify inspection readiness (where supported).
PRODUCT SPECIFICATIONS
Functions
- Read DTCs (Read trouble codes)
- Clear DTCs (Clear trouble codes)
- Freeze Frame (Freeze frame)
- I/M Readiness (I/M readiness)
- Vehicle Info (Vehicle information)
- Live Data Stream (Live data stream)
- O2 Sensor Test (Oxygen sensor test)
- Mode 6 Test (Mode 6 test)
- Mode 8 Test (Mode 8 test)
- Real-time Graphing (Real-time graphing)
- DTC Lookup (DTC lookup)
- Cloud Print (QR) (Cloud printing)
- Battery Voltage Monitoring (Battery voltage monitoring)
- I/M & DTC Shortcut Keys (I/M and DTC shortcut keys)
- AutoVIN: correctly identifies vehicle brand across BMW, Mercedes-Benz, VW/Audi, Land Rover/Jaguar, Toyota, Lexus, Nissan, Honda, Hyundai/Kia, Porsche, GM, Ford, Mazda, etc.; brand-specific DTC solutions provide repair information; DTC library: 40,000+ entries; 2.8-inch color display
OBD-II Protocols
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5 baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (fast init, 10.4 Kbaud)
- ISO 15765-4 CAN (11bit ID, 500 Kbaud)
- ISO 15765-4 CAN (29bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11bit ID, 250 Kbaud)
- ISO 15765-4 CAN (29bit ID, 250 Kbaud)
Data PIDs
- Read DTCs
- Clear DTCs (MIL off)
- Engine RPM
- Calculated load value
- Coolant temperature
- Fuel system status
- Vehicle speed
- Short-term fuel trim
- Long-term fuel trim
- Intake manifold pressure
- Timing advance
- Intake air temperature
- Mass air flow rate
- Throttle position (absolute)
- O2 sensor voltage (w/ STFT)
- Fuel pressure
- Fuel consumption monitoring (etc.)
- Note: supported data items vary by vehicle model year and ECU.
Hardware Specs
- MCU: APM32E103VET6
- Working voltage: DC 9–16 V
- Operating current: 37–57 mA
- Standby current: 30 mA
- Communication: OBD-II (vehicle DLC); internal serial communication
- Operating temperature: -20 to 60°C
- Storage temperature: -20 to 60°C
- Dimensions: 178 × 90 × 26 mm
- Weight: 286 g (tool); 412 g (with packaging)
OBD Connector
- OBD male connector (standard 16-pin OBDII interface).
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Single Wire CAN | 9 | Reserved |
| 2 | J1850+ | 10 | J1850- |
| 3 | Reserved | 11 | Reserved |
| 4 | Chassis ground | 12 | Reserved |
| 5 | Signal ground | 13 | Reserved |
| 6 | CAN High (CANH) | 14 | CAN Low (CANL) |
| 7 | K-Line | 15 | L-Line |
| 8 | Reserved | 16 | Power |
Compliance & Packaging
- Certifications: CE, FCC, RoHS, UKCA
- Outer carton size: 48.3 × 37.5 × 41.3 cm
- Quantity per carton: 36 pcs/carton
- Retail box size: 193 × 39 × 235 mm
- Storage conditions: store in a clean, ventilated, cool, and dry place; keep moisture-proof.
- Transportation & handling: ship in cartons; handle with care; avoid heavy vibration, shock, or compression; prevent contamination and package damage; protect from rain and direct sunlight; suitable for road, rail, sea, and air transport.
- Care & safety notes: do not use abrasive cleaners; do not heat or place near open flames; do not expose to direct sunlight for long periods; do not disassemble or modify (no user-serviceable parts).
DOWNLOAD
Technical Documents
Support Guides
GET YOUR ORDER
Standard Packaging
- Standard package contents: V600 handheld scanner main unit ×1; user manual ×1; individual retail box ×1.
- Accessories and detailed packing list can be customized for OEM/ODM and private-label orders.
MOQ & Pricing Structure
- Sample MOQ: 1–10 pcs
- Standard (bulk) MOQ: 100 pcs
- White-label / OEM MOQ: 500 pcs
- ODM MOQ: 5,000 pcs
- Note: MOQs may vary based on packaging and customization scope.
- Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
Sample & Lead Time
- Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
- White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
- ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
- Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
Customization Options (OEM/Private Label)
- Branding (White-label): logo printing (silkscreen) or label/sticker service.
- Documentation & packaging: customized user manual and retail box packaging.
- Appearance options: housing color customization (project-dependent).
- ODM (project-based): industrial design / enclosure appearance customization.
Quality, Warranty & Compliance
- Warranty: 1 year replacement.
- Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
- DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
- Quality system: ISO 9001 certified.
- Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
- Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
- Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
Shipping & Carton Info
- Shipping: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes).
- Duty-paid option (DDP, air door-to-door): available upon request. We can quote and pre-collect freight + duties/taxes where supported.
- HS Code (reference): 9031.80.9090 (may vary by destination country).
