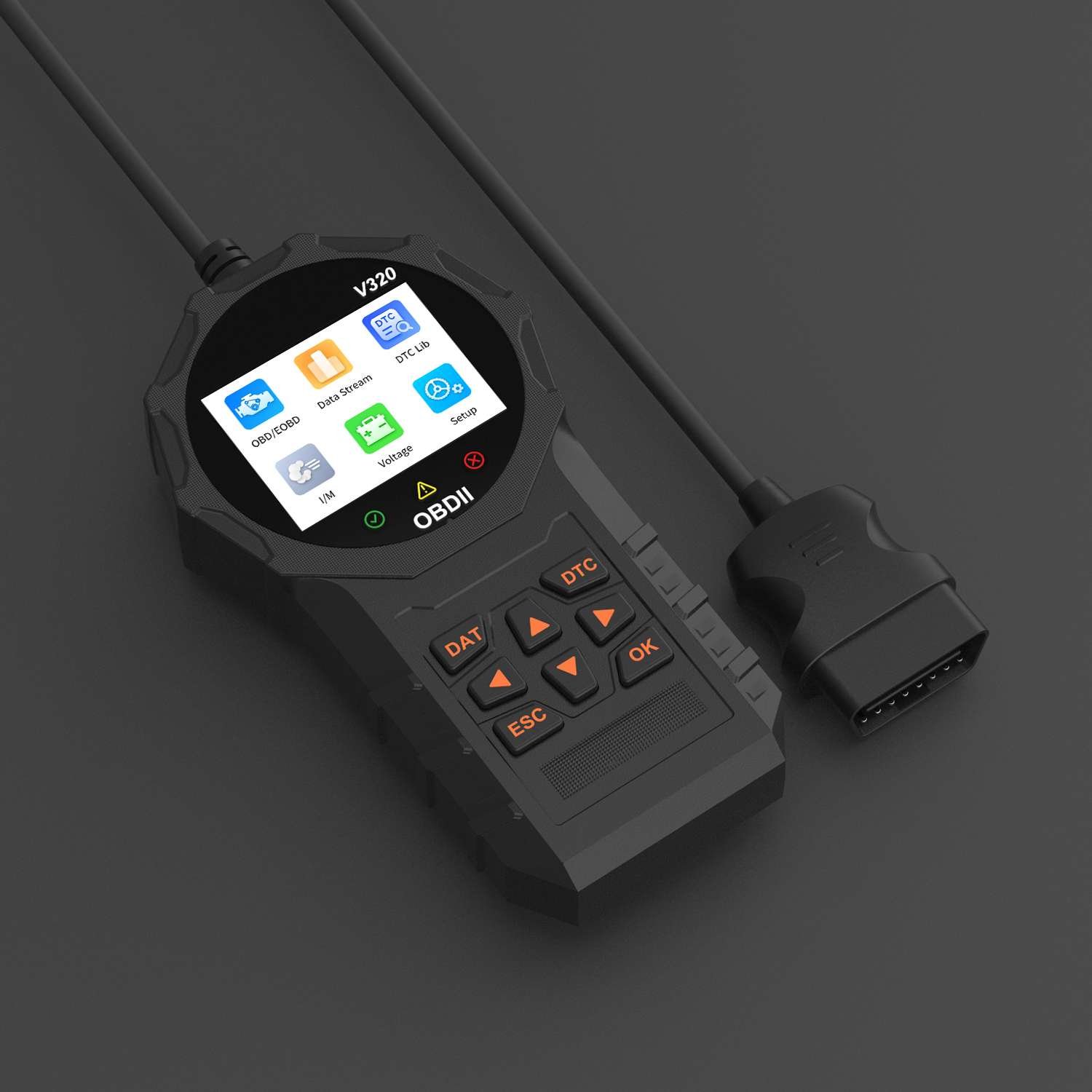

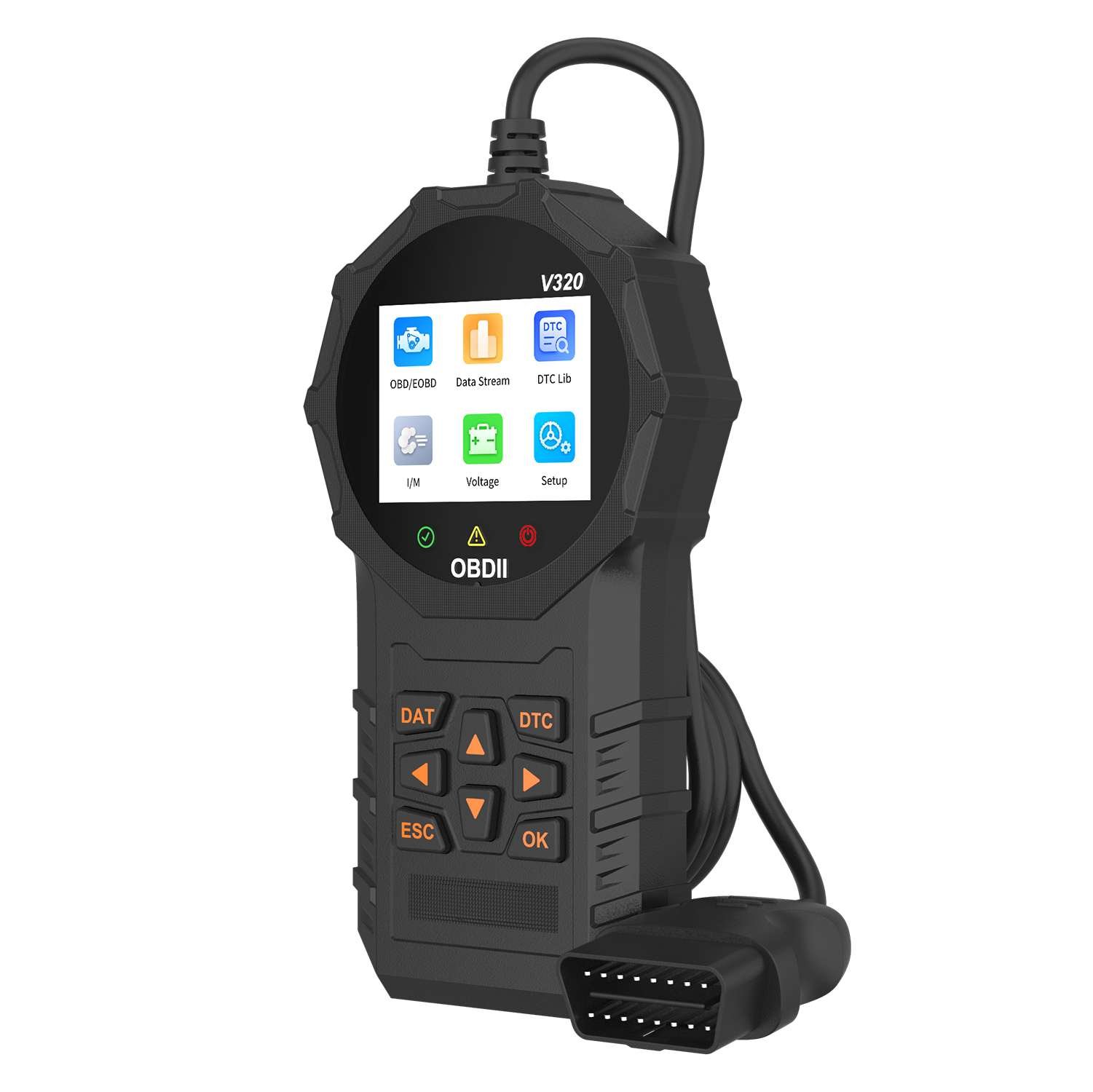

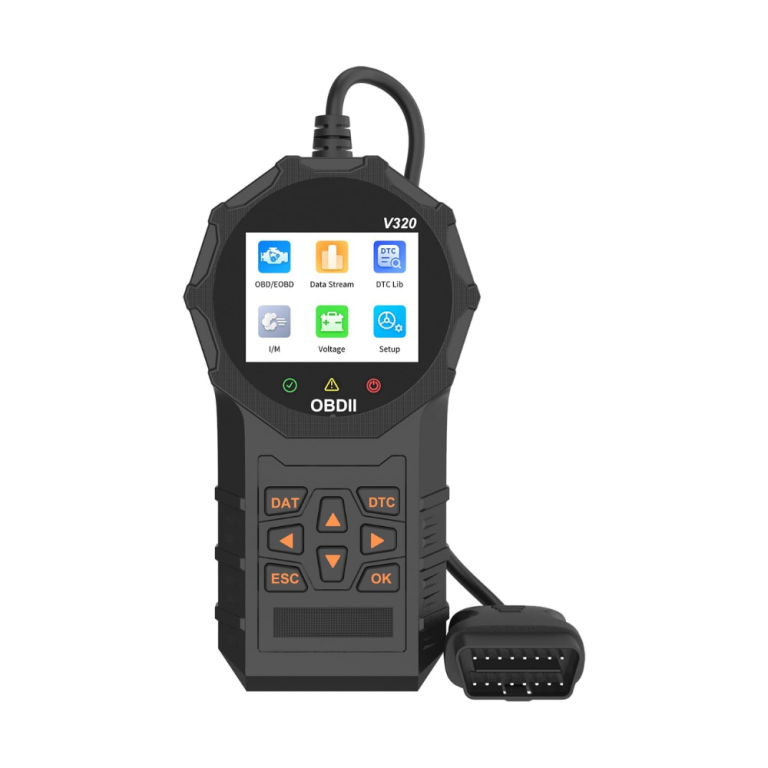

V320
Diagnostic scanner with status checks, voltage reading, and performance test
V320 combines code reading with Freeze Frame, readiness status, vehicle information, live data, and battery voltage viewing. O2/EVAP support plus built-in performance test functions add more value for users who want both diagnostics and quick performance-related checks.

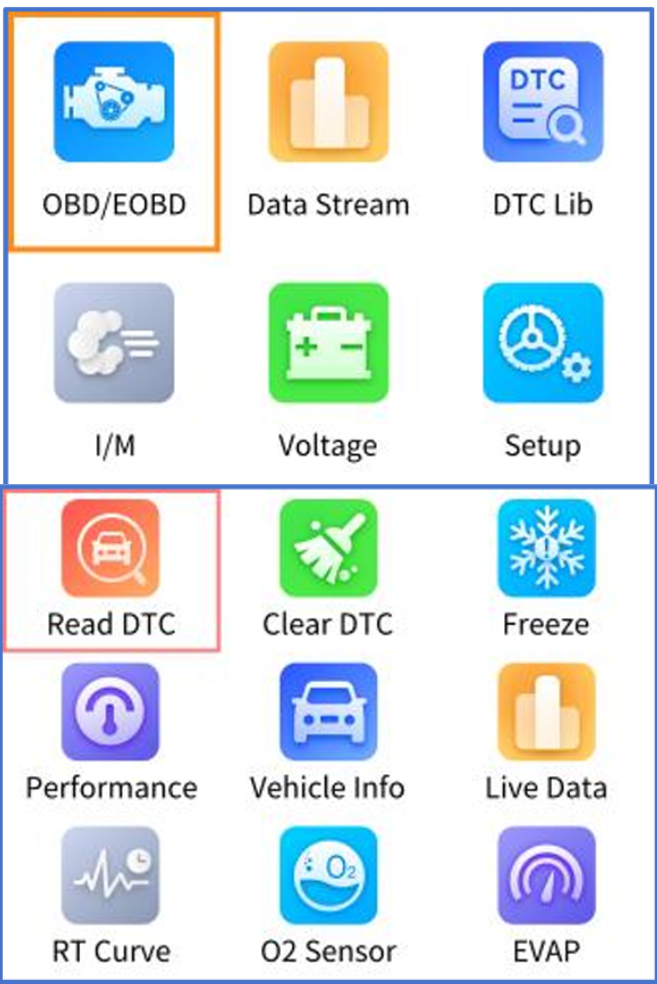

OBD Diagnostics + Status
Diagnostics with freeze frame, readiness status, and vehicle info—adds the context needed for faster troubleshooting and fewer back-and-forth questions.

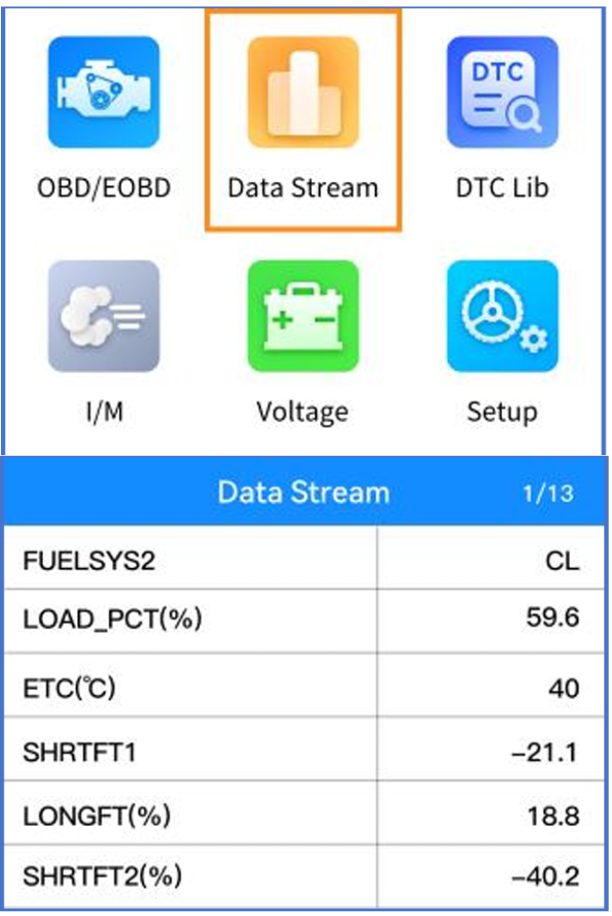

Live Data + Battery Voltage
Real-time data stream plus battery voltage reading for quick visibility into running conditions and power status during troubleshooting.
O2 & EVAP Tests
Supports oxygen sensor testing and EVAP tests where supported by the vehicle to help evaluate emissions-related systems.
Performance Test
Includes performance test items such as acceleration, braking, distance, and selected dashboard parameters for quick vehicle performance checks.
PRODUCT SPECIFICATIONS
Functions
- Supports OBD II / EOBD 9 standard protocols
- Vehicle diagnostics
- Freeze frame
- I/M readiness status
- Vehicle information reading
- Real-time data stream
- Battery voltage reading
- Emission inspection data (per spec wording)
- Oxygen sensor test
- EVAP test function
- DTC lookup
- Overcurrent/overvoltage protection (per spec wording)
- 2.8-inch color display
- LED indicators: red=power; yellow=DTC; green=vehicle match/connection (per spec)
- Performance test (per spec): acceleration test; brake test; distance test; dashboard data (includes: load value, coolant temperature, total mileage, instantaneous fuel consumption)
OBD-II Protocols
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (5-baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (fast init, 10.4 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
Data PIDs
- Read diagnostic trouble codes
- Clear fault codes (erase DTCs and turn off MIL)
- Engine speed (RPM)
- Calculated load value
- Coolant temperature
- Fuel system status
- Vehicle speed
- Short-term fuel trim
- Long-term fuel trim
- Intake manifold pressure
- Ignition timing advance
- Intake air temperature
- Air flow rate
- Throttle position (absolute)
- Oxygen sensor voltage related to short-term fuel trim
- Fuel pressure
- Fuel consumption monitoring, etc.
- Note: supported data items vary by vehicle model/year.

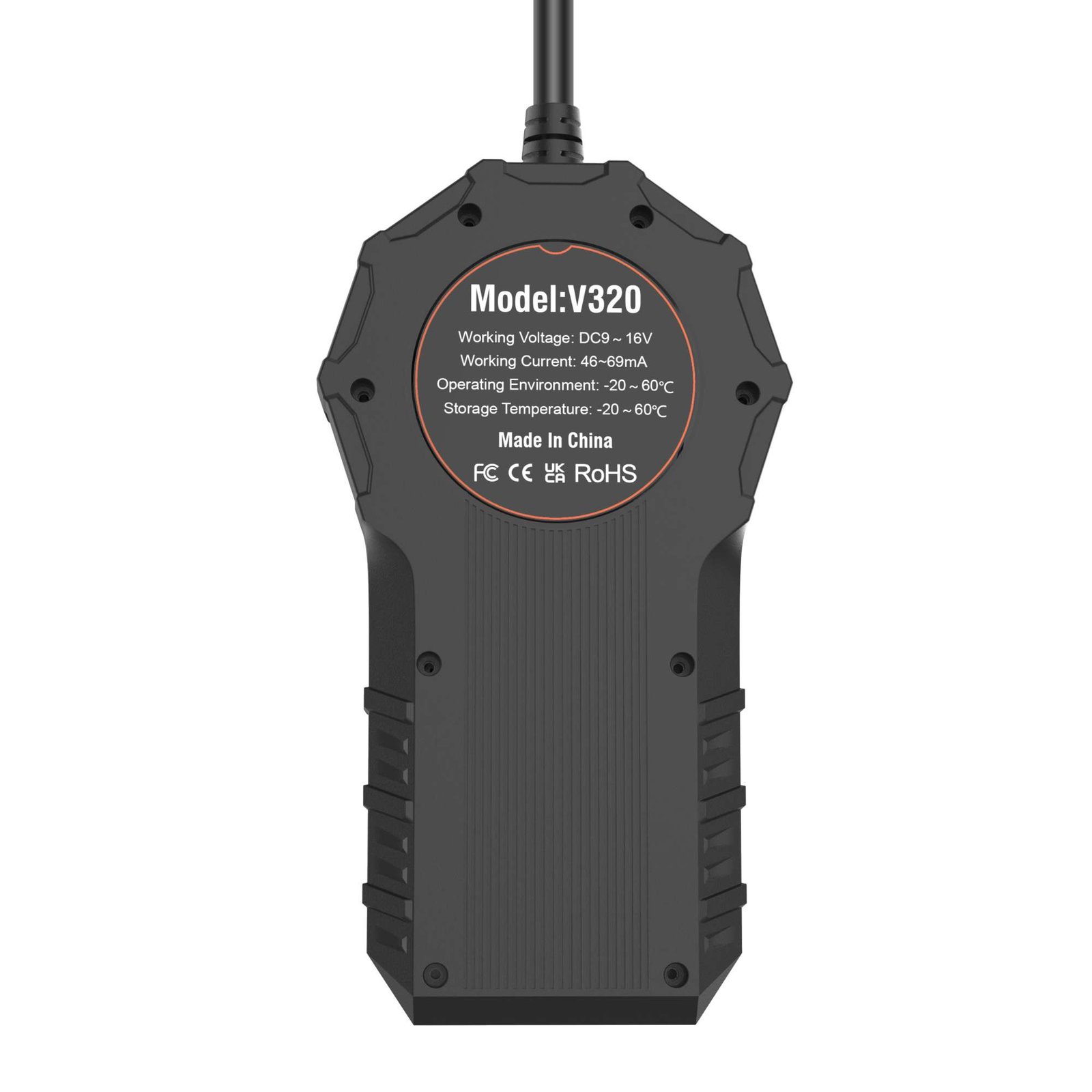

Hardware Specs
- Main control chip: BAT32G137GH48FA (LQFP48)
- Operating voltage: DC 9–16 V
- Operating current: 46–69 mA
- Standby current: 53 mA
- Operating temperature: -20 to 60°C
- Storage temperature: -20 to 60°C

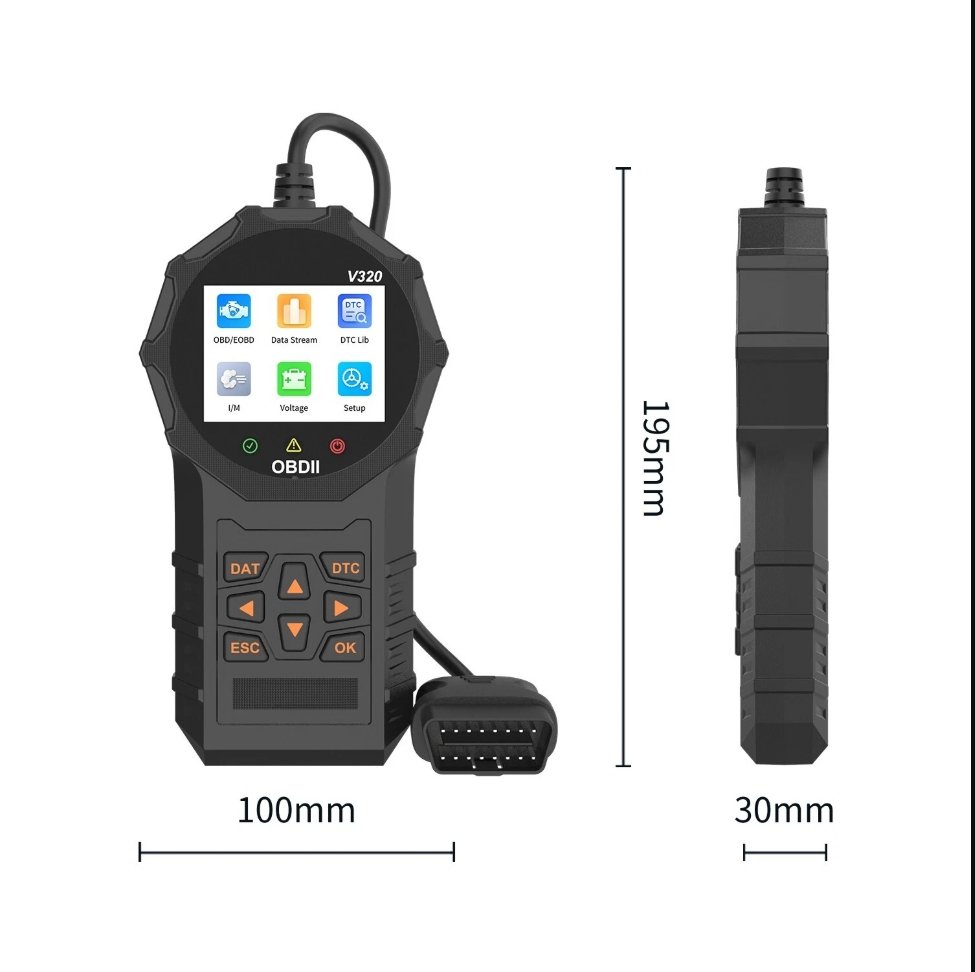

- Dimensions: 195 × 100 × 30 mm
- Weight: 250 g (tool); 364 g (with packaging)
- UI languages: English, German, French, Spanish, Italian, Russian, Dutch, Chinese
- Carton size: 52.3 × 45.8 × 24.5 cm; quantity: 40 pcs/carton
- Retail box size: 220 × 125 × 45 mm
OBD Connector
- OBD male connector (standard 16-pin OBDII interface).
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Single Wire CAN | 9 | Reserved |
| 2 | J1850+ | 10 | J1850- |
| 3 | Reserved | 11 | Reserved |
| 4 | Chassis ground | 12 | Reserved |
| 5 | Signal ground | 13 | Reserved |
| 6 | CAN High (CANH) | 14 | CAN Low (CANL) |
| 7 | K-Line | 15 | L-Line |
| 8 | Reserved | 16 | Power |
Compliance & Packaging
- Certifications: CE, FCC, RoHS, UKCA
- Supported UI languages: English, German, French, Spanish, Italian, Russian, Dutch, Chinese
- Retail box size: 220 × 125 × 45 mm
- Carton size: 52.3 × 45.8 × 24.5 cm
- Quantity per carton: 40 pcs/carton
- Storage conditions: store in a clean, ventilated, cool, and dry place; keep moisture-proof.
- Transportation & handling: ship in cartons; handle with care; avoid heavy vibration, shock, or compression; prevent contamination and package damage; protect from rain and direct sunlight; suitable for road, rail, sea, and air transport.
- Care & safety notes: do not use abrasive cleaners; do not heat or place near open flames; do not expose to direct sunlight for long periods; do not disassemble or modify (no user-serviceable parts).
DOWNLOAD
Technical Documents
Support Guides
GET YOUR ORDER
Standard Packaging
- Standard package contents: V320 handheld scanner main unit ×1; user manual ×1; individual retail box ×1.
- Accessories and detailed packing list can be customized for OEM/ODM and private-label orders.
MOQ & Pricing Structure
- Sample MOQ: 1–10 pcs
- Standard (bulk) MOQ: 100 pcs
- White-label / OEM MOQ: 500 pcs
- ODM MOQ: 5,000 pcs
- Note: MOQs may vary based on packaging and customization scope.
- Pricing: sample price + tiered volume pricing. Contact us for a quotation: info@drovewest.com.
Sample & Lead Time
- Standard items (no customization): ship-out within 1–3 business days after payment confirmation.
- White-label / OEM: ship-out within 5 business days after payment confirmation and final approval of branding/customization files.
- ODM: ship-out within 25 business days after payment confirmation and final approval of customization files.
- Tracking: courier tracking typically becomes active within 1–3 business days after ship-out (handover / consolidation time).
Customization Options (OEM/Private Label)
- Branding (White-label): logo printing (silkscreen) or label/sticker service.
- Documentation & packaging: customized user manual and retail box packaging.
- Appearance options: housing color customization (project-dependent).
- ODM (project-based): industrial design / enclosure appearance customization.
Quality, Warranty & Compliance
- Warranty: 1 year replacement.
- Warranty coverage: manufacturing defects under normal use; exclusions include misuse, unauthorized modification/repair, and damage caused by improper installation or accidents.
- DOA / RMA support: issue reporting, diagnostics, and replacement/return handling are available based on case evaluation and order terms.
- Quality system: ISO 9001 certified.
- Quality control: incoming inspection, in-process QC, and final inspection applied to production batches.
- Traceability: batch/lot tracking is available; unit-level serial number (SN) labels / barcodes can be provided for white-label/OEM orders upon request.
- Compliance: certification status and compliance documents (e.g., CE/FCC/RoHS/UKCA) can be provided upon request and may vary by product version, batch, and target market requirements.
Shipping & Carton Info
- Shipping: UPS / DHL / FedEx express door-to-door (DAP by default; consignee handles import clearance and duties/taxes).
- Duty-paid option (DDP, air door-to-door): available upon request. We can quote and pre-collect freight + duties/taxes where supported.
- HS Code (reference): 9031.80.9090 (may vary by destination country).
